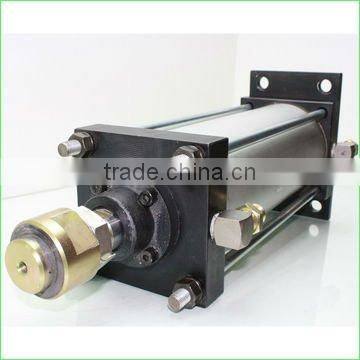

Help CenterLong Stroke Pneumatic Cylinders With Aluminum Body
Related Products
-
Professional Pneumatic Cylinder Large or Small Style Aluminum BodyUS$ 10 - 6,000MOQ: 1 Piece -
MAX 3000mm Stroke Pneumatic Cylinder Max 120" Stroke Air CylinderUS$ 100 - 1,000MOQ: 10 Pieces
-
Top Quality Cheaper Pneumatic Cylinder(NC80X57.15)US$ 31 - 40MOQ: 2 Pieces
-
Top Quality Cheaper Pneumatic Cylinder(NC80X57.15)US$ 31 - 40MOQ: 2 Pieces
-
Good Price Pneumatic Cylinder(NC80X57.15)US$ 31 - 40MOQ: 2 Pieces
Our pneumatic cylinder mainly contains C series and EC series. It is both self-lubricating and can equip with cushion.
C series pneumatic cylinder complies with general standard and popular in Asian market. It has 4 subfamily:
1. NC series: it is symbolized with 4 tie rod circular alufer cylinder barrel. Barrel diameter: 32-250mm.
2. FC series: it is symbolized with quadrate alufer cylinder barrel. Barrel diameter: 23-100mm.
3. MC series: it is symbolized with rice pattern alufer cylinder barrel. Barrel diameter: 32-200m.
4. ZC series: it is symbolized with 4 tie rod steel structure. Barrel diameter: 32-400mm.
EC series pneumatic cylinder complies with ISO6431(ISO15552) standard and popular in European and North American market. It has 4 subfamily:
1. ENC series: it is symbolized with 4 tie rod circular alufer cylinder barrel. Barrel diameter: 32-100mm.
2. EFC series: it is symbolized with quadrate alufer cylinder barrel. Barrel diameter: 23-100mm.
3. EMC series: it is symbolized with rice pattern alufer cylinder barrel. Barrel diameter: 32-100m.
4. EZC series: it is symbolized with 4 tie rod steel structure. Barrel diameter: 32-320mm.
Specification:
| C Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Pull(N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | 6136 | 10053 | 15708 | 24544 | 40212 |
| Thrust(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | 5734 | 9425 | 15080 | 23748 | 37699 |
| Max Stroke Length(mm) | 1000 | 2000 | 3000 | ||||||||
| Working Medium | pure compressed air | ||||||||||
| Waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||
| EC Series Pneumatic Cylinder Specification | |||||||||||
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Pull(N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | 6136 | 10053 | 15708 | 24544 | 40212 |
| Thrust(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | 5734 | 9425 | 15080 | 23748 | 37699 |
| Max Stroke Length(mm) | 1000 | 2000 | 3000 | ||||||||
| Working Medium | pure compressed air | ||||||||||
| waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||

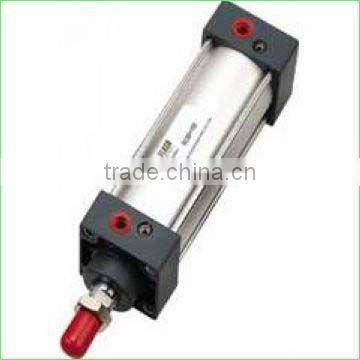

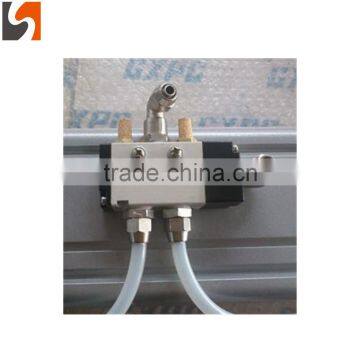

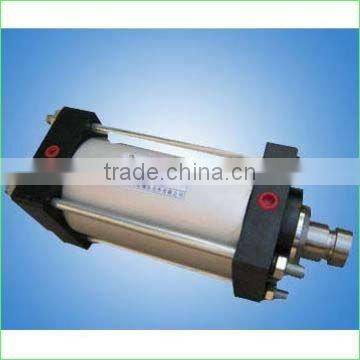

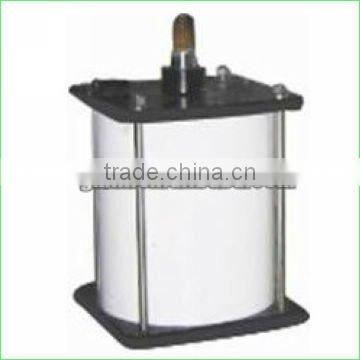

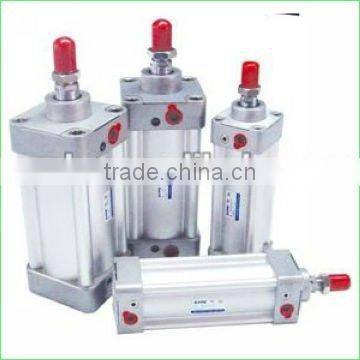

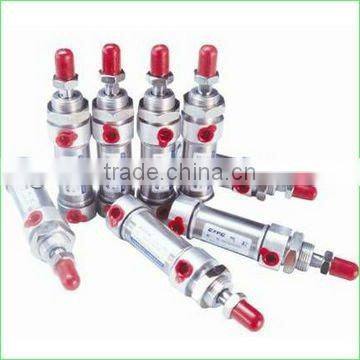

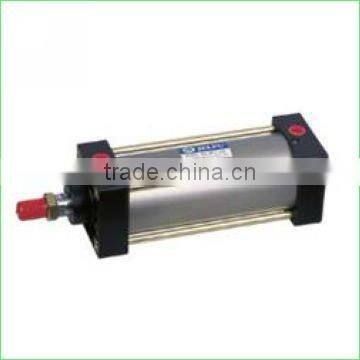

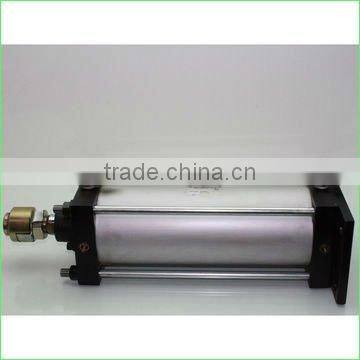

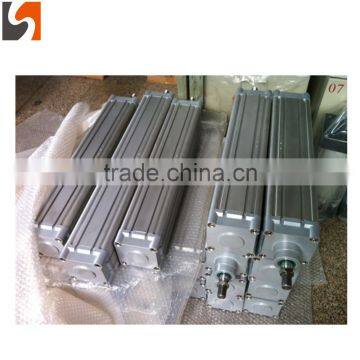

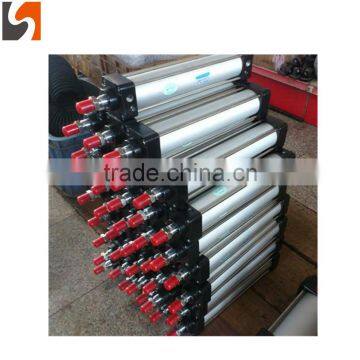

Pictures:
Company:
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.
Our company scale as follows:
13 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers
