Home > Products > Pneumatic cylinder > professional Pneumatic Cylinder large or small style aluminum body
professional Pneumatic Cylinder large or small style aluminum body
USD $10 - $6,000
/ Piece
1 Piece(Min.Order)
- 2000 Piece / Pieces per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard: | Standard | Structure: | Piston Cylinder | Power: | Pneumatic |
| Body Material: | Aluminum | Maximum Stroke: | 50-3000mm | Shaft Diameter: | 12-63mm |
| Place of Origin: | Shandong, China | Model Number: | Pneumatic Cylinder Price | Brand Name: | HCIC |
Product Description
Pneumatic Cylinder Price
Our pneumatic cylinder mainly contains C series and EC series. It is both self-lubricating and can equip with cushion.All cylinders can be used as single acting and double acting function.
Specification:
| Bore Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 |
| Rod Diameter(mm) | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 | 50 | 63 |
| Thrust at 0.5Mpa (N) | 402 | 628 | 981 | 1559 | 2513 | 3927 | 6136 | 10053 | 15708 | 24544 | 40212 |
| Pull at 0.5Mpa(N) | 346 | 528 | 792 | 1369 | 2268 | 3682 | 5734 | 9425 | 15080 | 23748 | 37699 |
| Max Stroke Length(mm) | 1000 | 2000 | 3000 | ||||||||
| Working Medium | pure compressed air | ||||||||||
| Waorking pressure(MPa) | 0.05-0.98 | ||||||||||
| Max pressure(MPa) | 1.5 | ||||||||||
| Working Speed(mm/sec) | 50--700 | ||||||||||
| Working Temperature(°C) | 6--60 or -4--60 or 6--120 | ||||||||||

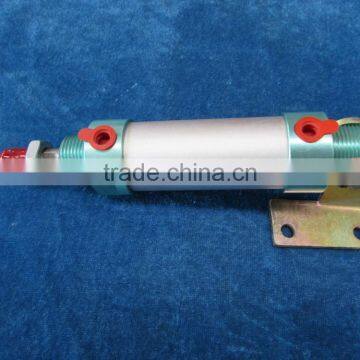

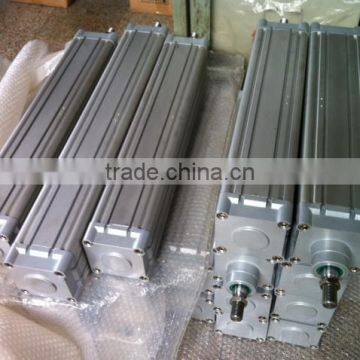

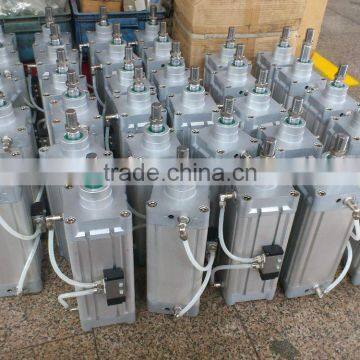

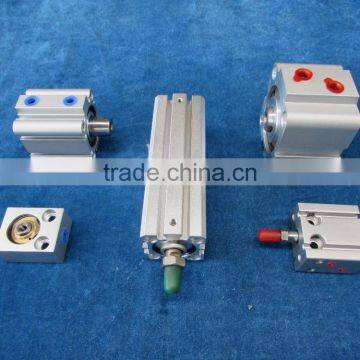

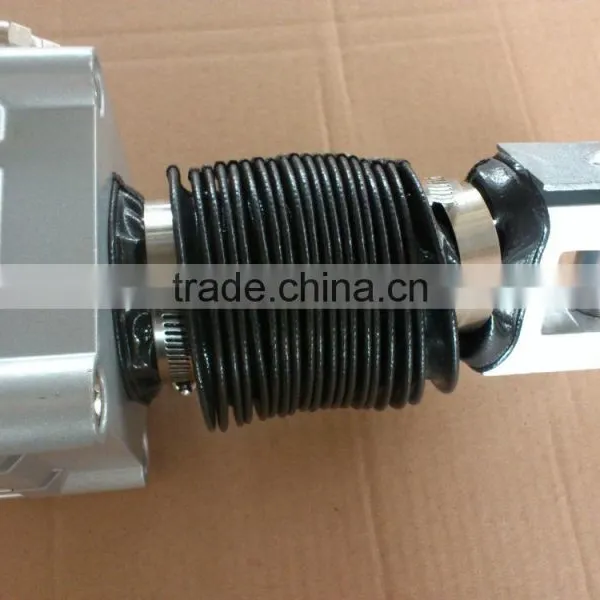

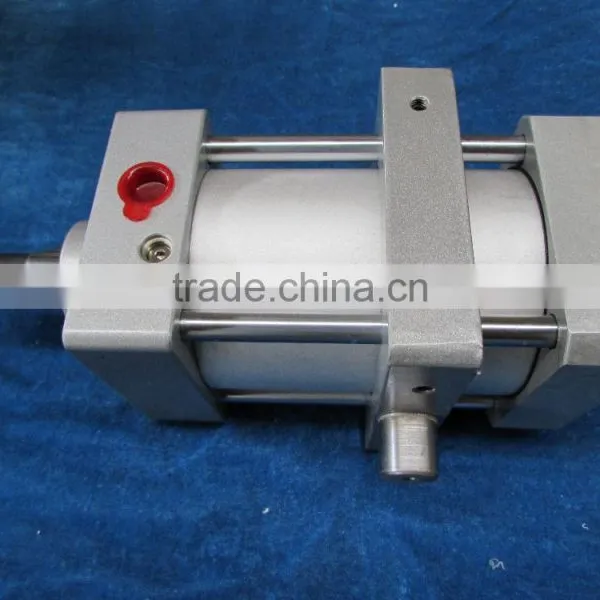

Pictures:
