Hydraulic Piston Cylinder
Our raw material is high quality steel, seamless honed tubes. They are produced with BKS & SRB conditions, and we process them with CNC lathe. The sleeve of cylinder is very smooth, the surface finish can be 0.02μm and the seal kits are Parker imported from USA. So the working life is long and the using frequency can be high.
Before paint, we will process the cylinder tubes with ball blast, so that the painting can be absorbed tightly. Then we will paint the cylinder with one lick of anti-rust paint and two lick of finish paint. Every lick of our paint is thick, so that can protect the cylinder well.
For the package, we will use corrugated paper for each cylinder and use plastic film for several cylinders. At last, use steel case to package them.
Specification:
|
Model |
Piston Rod Diameter (mm) |
Cylinder Inner Diameter (mm) |
Cylinder Outer Diameter (mm) |
Mounting Distance (mm) |
Stroke (mm) |
DG-J40C- E1- Y3 |
22 |
40 |
50 |
226 |
150 |
DG-J50C- E1- Y3 |
28 |
50 |
60 |
276 |
190 |
DG-J63C- E1- Y3 |
35 |
63 |
73 |
317 |
220 |
DG-J80C- E1- Y3 |
45 |
80 |
95 |
359 |
250 |
DG-J90C- E1- Y3 |
50 |
90 |
104 |
396 |
290 |
DG-J100C- E1- Y3 |
55 |
100 |
115 |
427 |
310 |
DG-J110C- E1- Y3 |
63 |
110 |
127 |
462 |
345 |
DG-J125C- E1- Y3 |
70 |
125 |
140 |
496 |
380 |
DG-J140C- E1- Y3 |
80 |
140 |
159 |
522 |
405 |
DG-J150C- E1- Y3 |
85 |
150 |
168 |
566 |
450 |
DG-J160C- E1- Y3 |
90 |
160 |
184 |
603 |
485 |
DG-J180C- E1- Y3 |
100 |
180 |
208 |
687 |
570 |
DG-J200C- E1- Y3 |
110 |
200 |
232 |
777 |
660 |

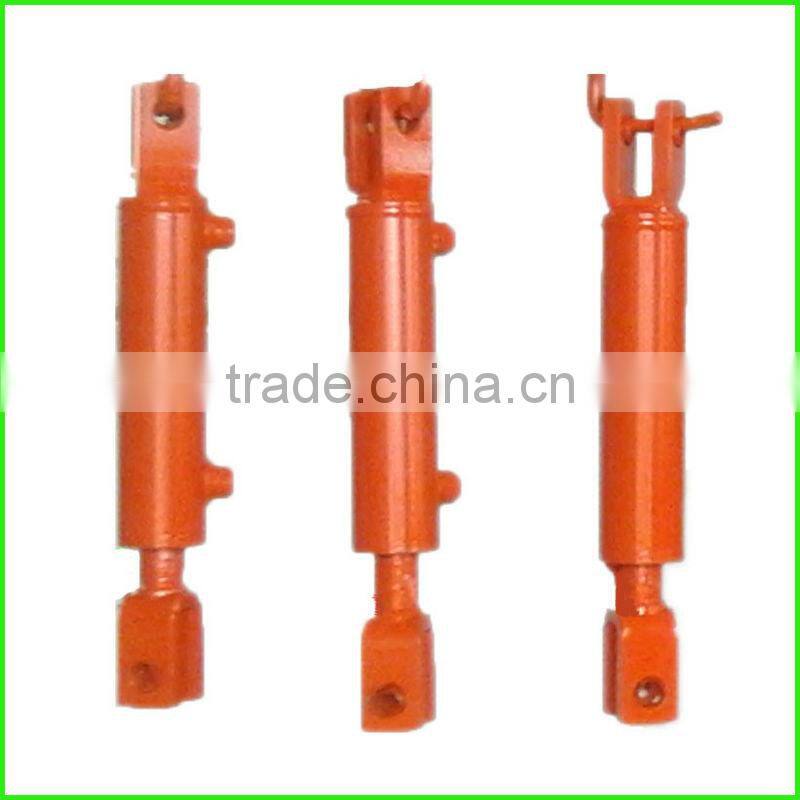

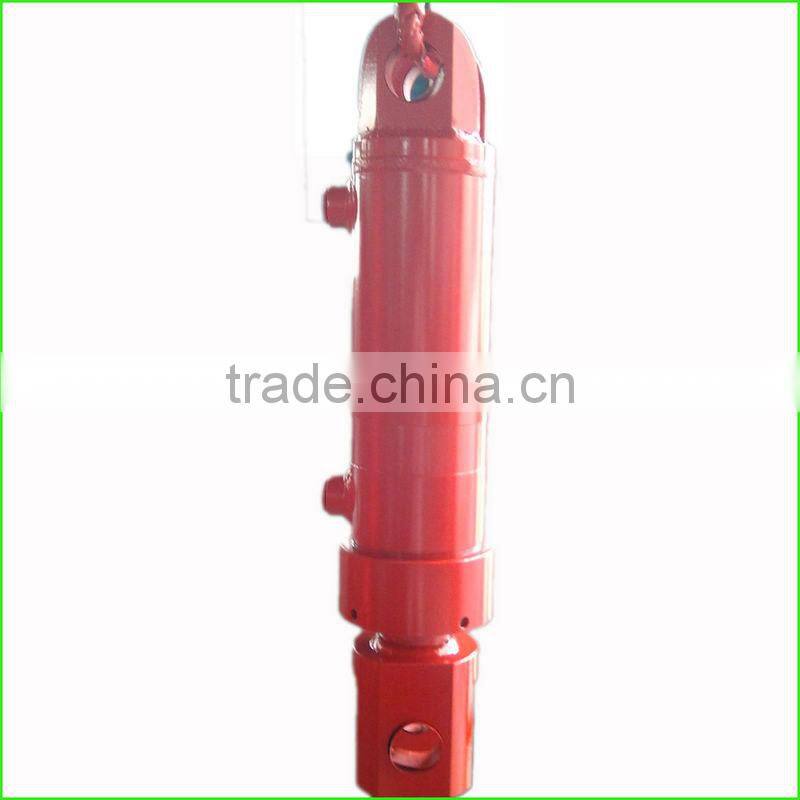

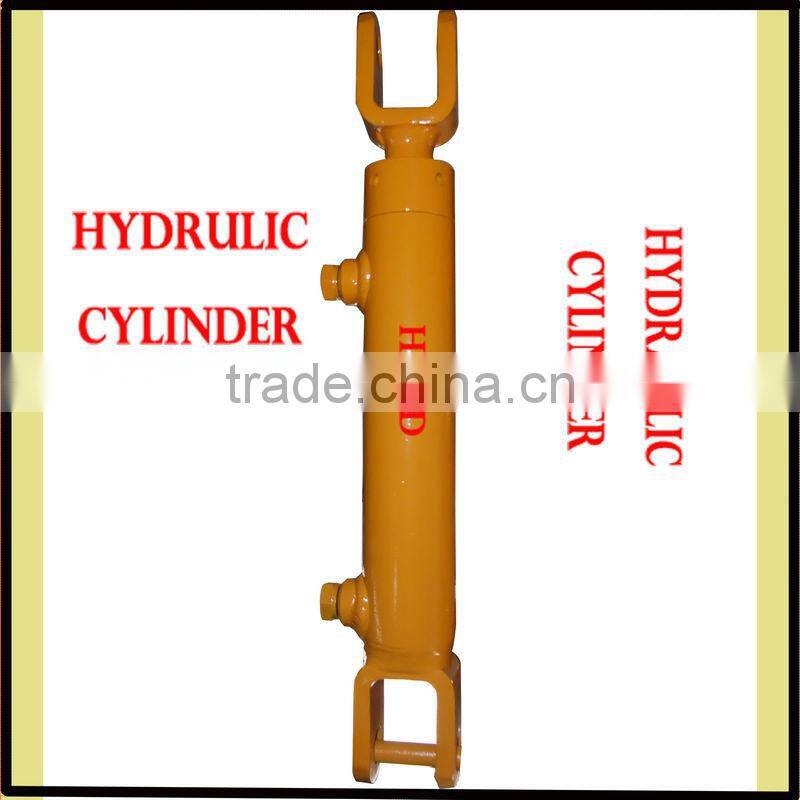

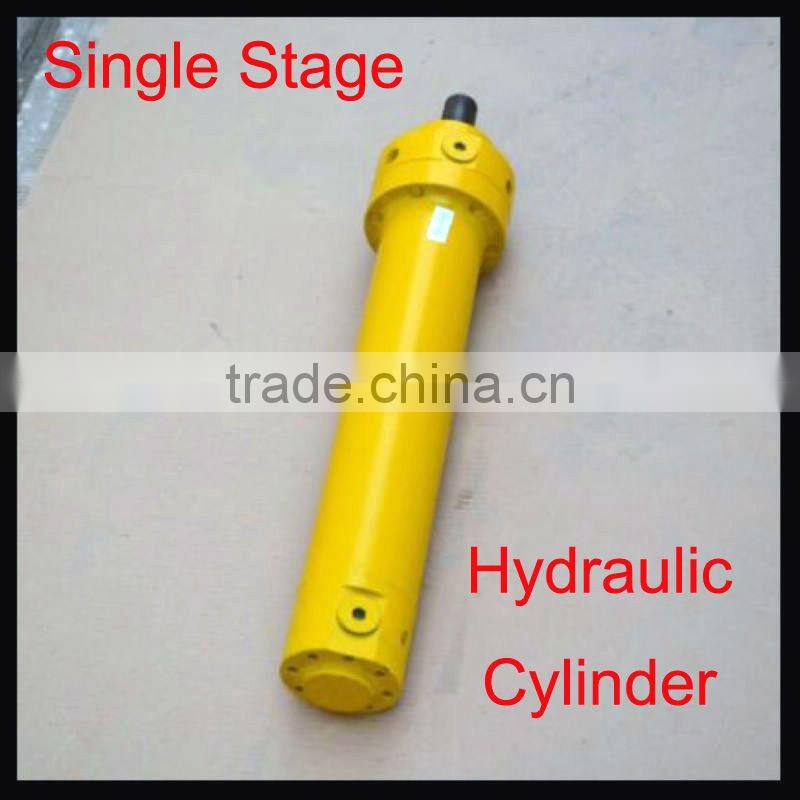

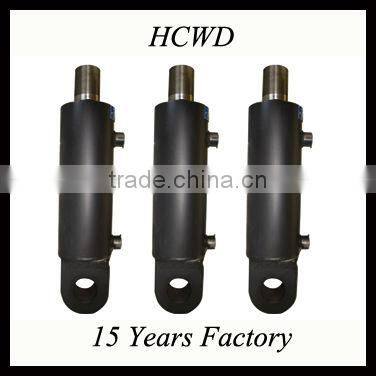

Pictures:
Company:
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.
Our company scale as follows:
15 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers
Manufacture &Design Capacity:
GXHN Standard Series Hydraulic Cylinder:
1. Stroke Length:Up to 9030mm
2. Rod Diamster: Up to 400mm
3. Load capacity: Up to 300 ton
4. Extended Stages: 1/2/3/4/5/6/7
5. Working pressure:C--6.3MPa; E--16MPa; G--25MPa; H--32MPa
6. Material: 1020 Steel , 1045 steel , AISI4140 , Q235 Steel ,St 52
7. Working temperature from -50°c to +80°c
8. High strengtgh seamless steel tube.
9. One year quality guarantee
10.Dual low resistance dust proof design
