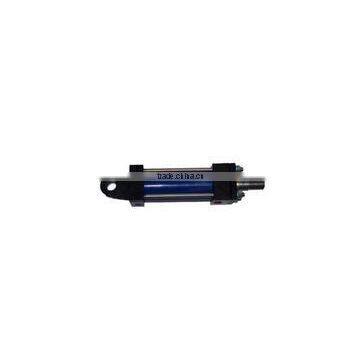

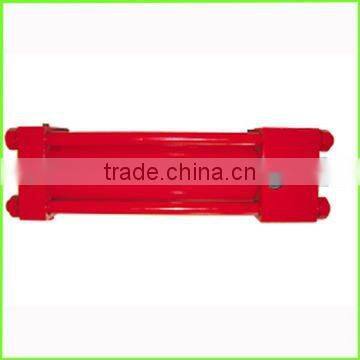

YG series four-tie rod hydraulic cylinder
Four-tie rod structure, applied to middle & low working pressure. Two ends are both equipped with a cushioning, act sensitively and lightly, easy to install. Main applied to the rated pressure Pn≤14Mpa, medium temperature around 80°C of all kinds machinery and equipments.
Mounting
Code | Form | Symbol |
1 | Basic form | - |

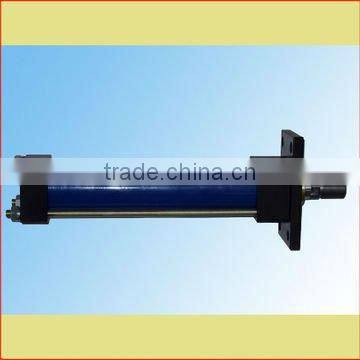

2 | Head fixed with flange | f |
3 | End fixed with flange | F |
4 | Vertical to axis foot type | G |
5 | Middle fixed with pendulum shift | B |
6 | End with single earring | S |
Cushioning
Code | Cushioning form |
B | Two ends with cushioning |
R | Rod end with cushioning |
H | End with cushioning |
N | Without cushioning |
Bore and max stroke
Bore(mm) | Φ40 | Φ50 | Φ63 | Φ80 | Φ100 | Φ125 | Φ140 | Φ150 | Φ160 |
Smax(mm) | 1200 | 1200 | 1600 | 1600 | 2000 | 2000 | 2000 | 2000 | 2000 |
COMPANY:
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best Manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.

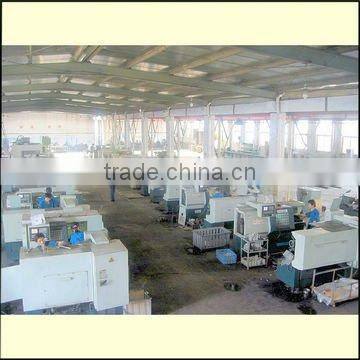

Our company scale as follows:
13 years production history
4 manufacturing base

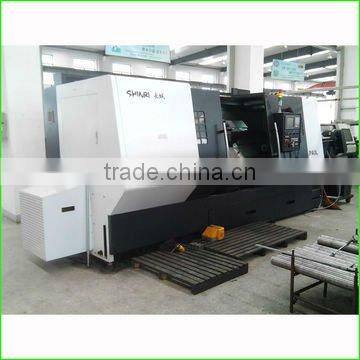

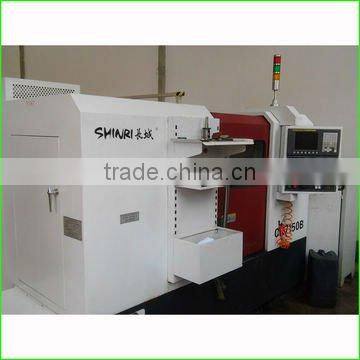

150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers
GXHN Standard Series Hydraulic Cylinder:
1. Stroke Length:Up to 9030mm
2. Rod Diamster: Up to 400mm
3. Load capacity: Up to 300 ton
4. Extended Stages: 1/2/3/4/5/6/7
5. Working pressure:C--6.3MPa; E--16MPa; G--25MPa; H--32MPa
6. Material: 1020 Steel , 1045 steel , AISI4140 , Q235 Steel ,St 52
7. Working temperature from -50°c to +80°c
8. High strengtgh seamless steel tube.
9. One year quality guarantee
10.Dual low resistance dust proof design
