Hydraulic Telescopic Cylinder

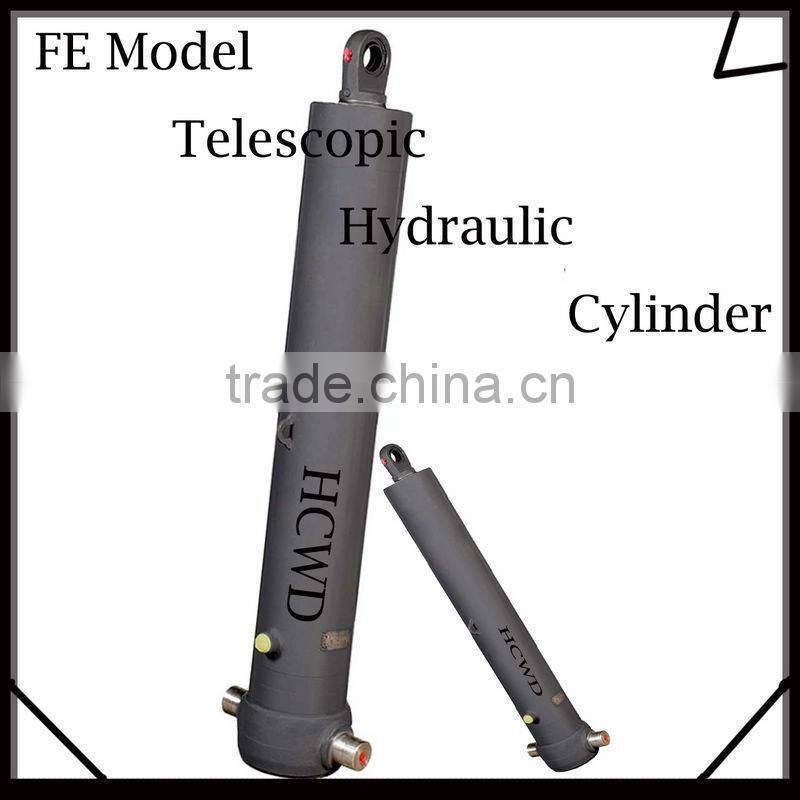

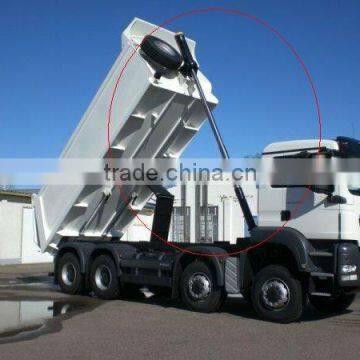

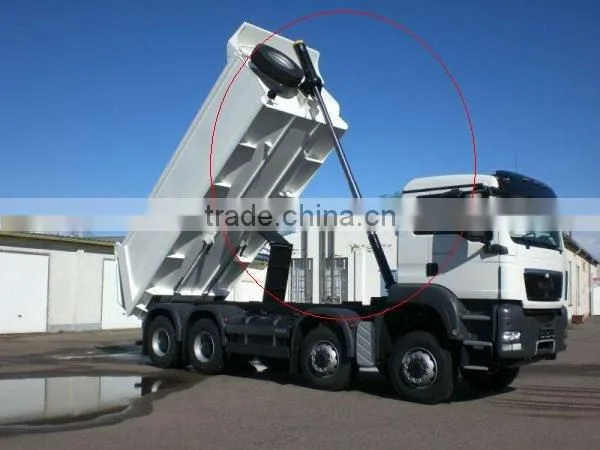

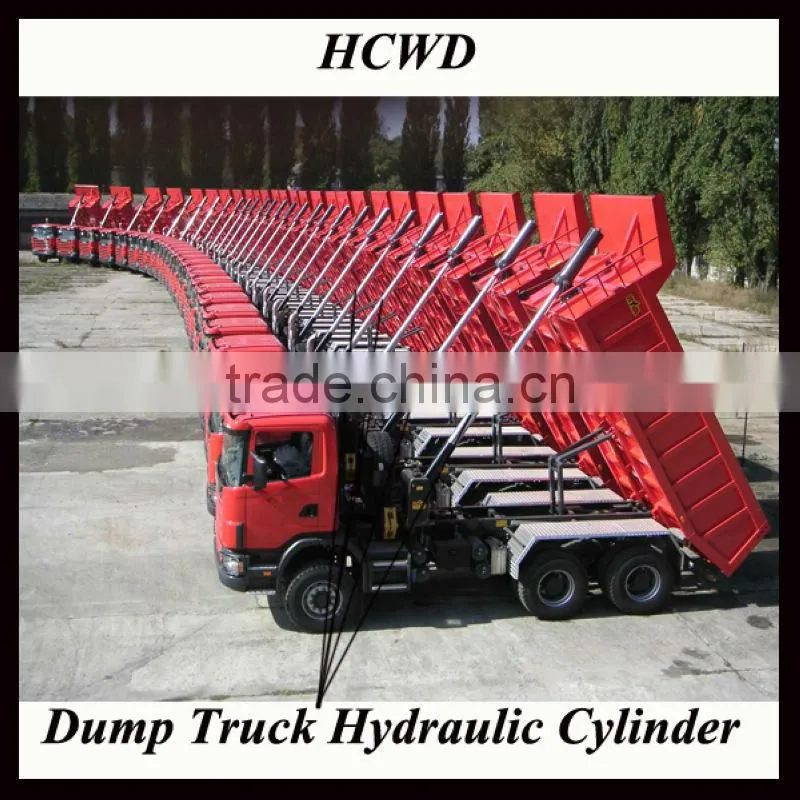

This is a kind of telescopic hydraulic cylinder which is used for dump truck, there are 3,4,5 stages for you to choose, we can also produce according to your drawing...
As our main series products, our telescopic hydraulic cylinder is widely used all over the world, we import famous seals PARKER from USA, and there is special seals for our company for PARKER company, so this extend the life of cylinders. Besides, the sleeve of cylinder is very smooth, the surface finish can be 0.02μm. From this point, the using frequency becomes long and long;
Characteristic:
High Speed: Working speed is high, cycle time is short, working capacity is more.
High Efficiency: Light weight, more loading capacity.
High Strength: New design, new material.
-New design products, bigger diameter, more lifting capacity.
-Max working pressure reaches 190 bar,better anti-pressure ability.
-Special-purpose material, high quality, high-precision, better anti-bending ability.
-New model guide ring combined with Senior lubricating material,guarantee cylinder lift more smoothly and work long time.
-Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
-New model stop collar combined with new model guide ring, maximum limit improve the working security and stability.
-Equiped with maintenance-free support, longer working life, bring you more benefit.
-Adopt "Less component integration" design philosophy, easy to maintain.
-Cylinder is tested 100%, guarantee high quality.
Specification:
| Specification of Standard Products for Dump Truck | |||||
| Model | Extended Stages | Working Pressure | Max.Stage Diameter | Max.stroke | Lifting Capacity |
| FC129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton |
| FC149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton |
| FC149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton |
| FC149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton |
| FC149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton |
| FC169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton |
| FC169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton |
| FC169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton |
| FC169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton |
| FC169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton |
| FC169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton |
| FC185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton |
| FC185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton |
| FC185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton |
| FC185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton |
| FC185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton |
| FC185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton |
| FC185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton |
| FC191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton |
| FC191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton |
| FC191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton |
| FC191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton |
| FC220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton |
| FC220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton |
| You are also welcome to tell us your requirement, we will design accordingly | |||||

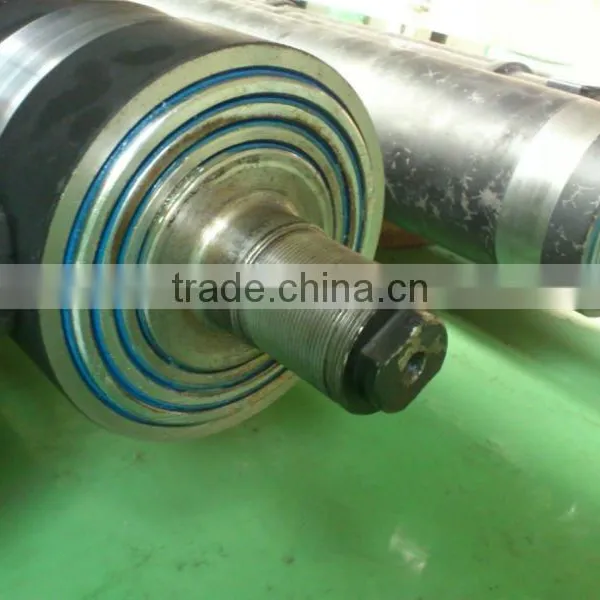

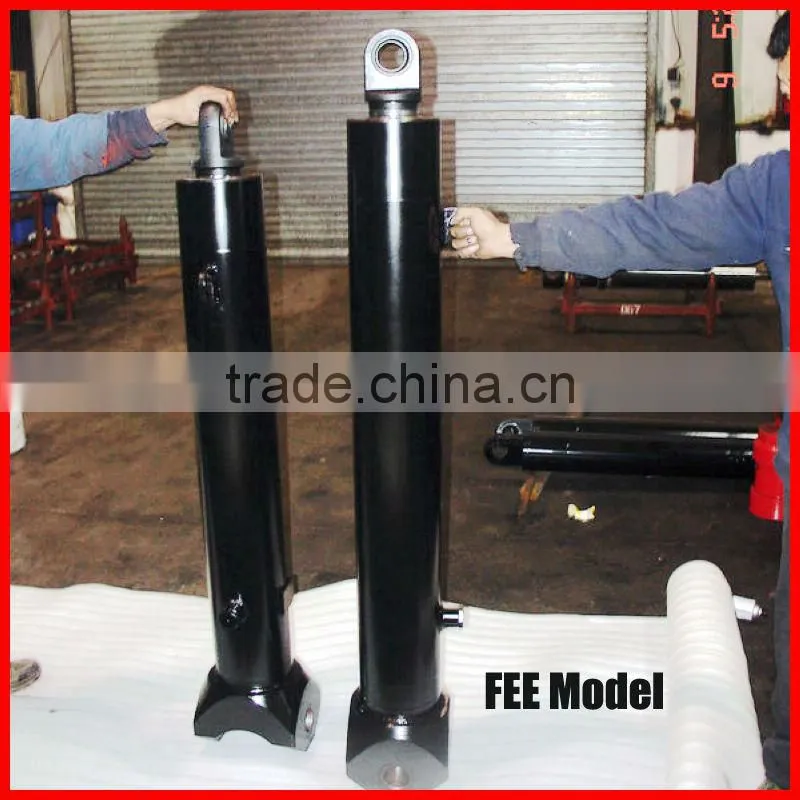

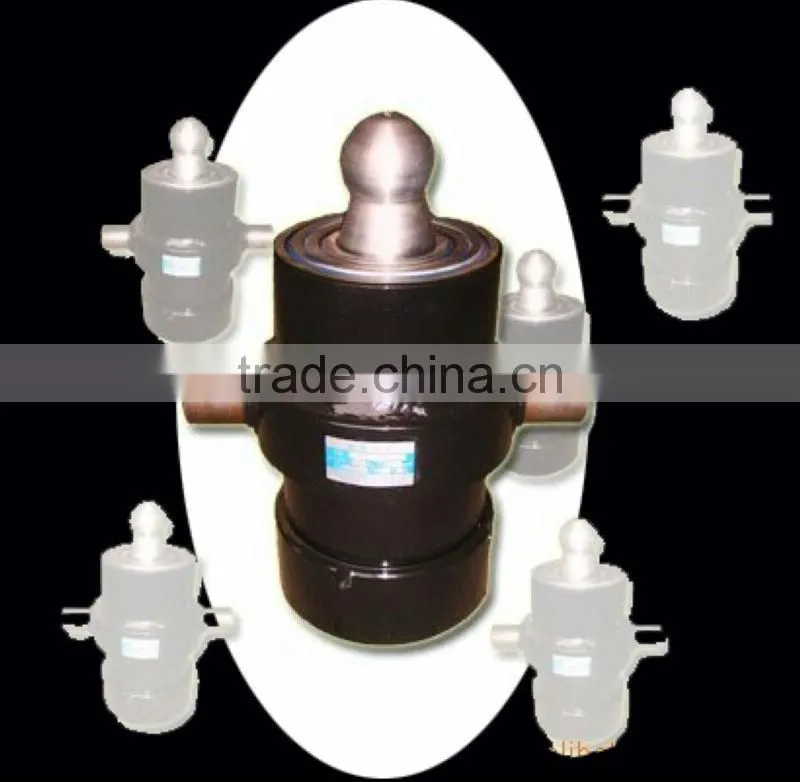

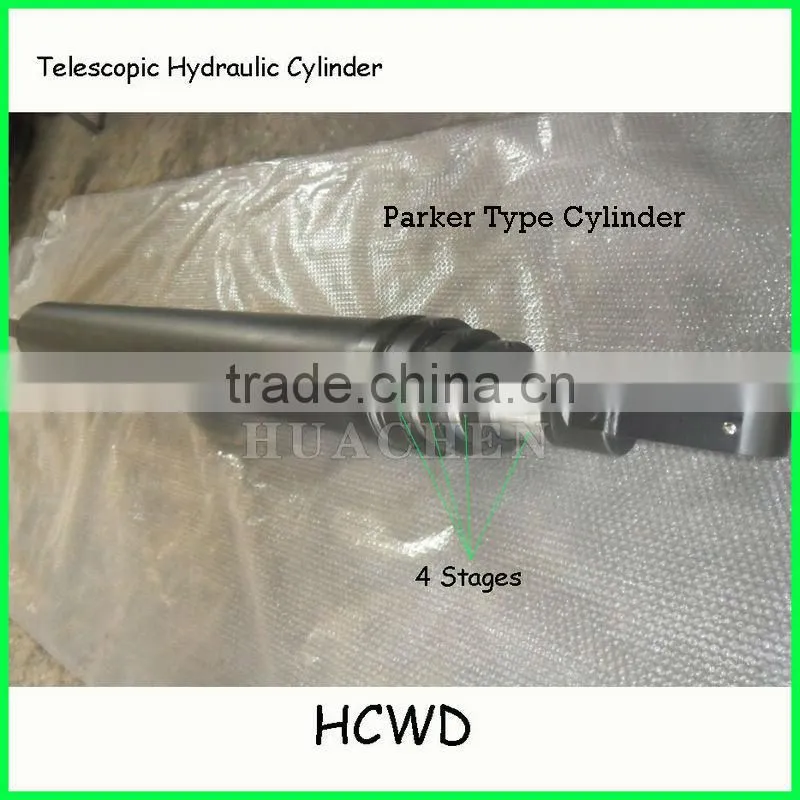

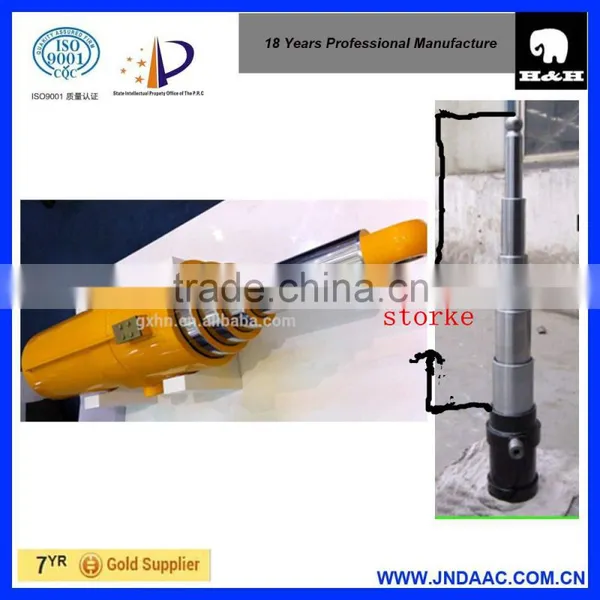

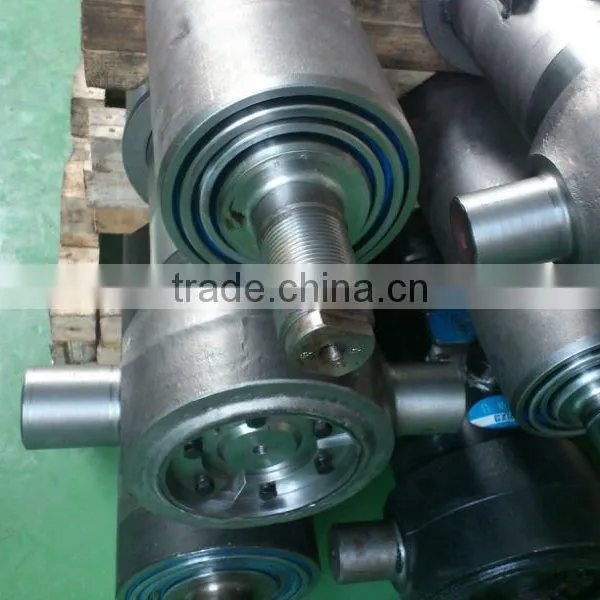

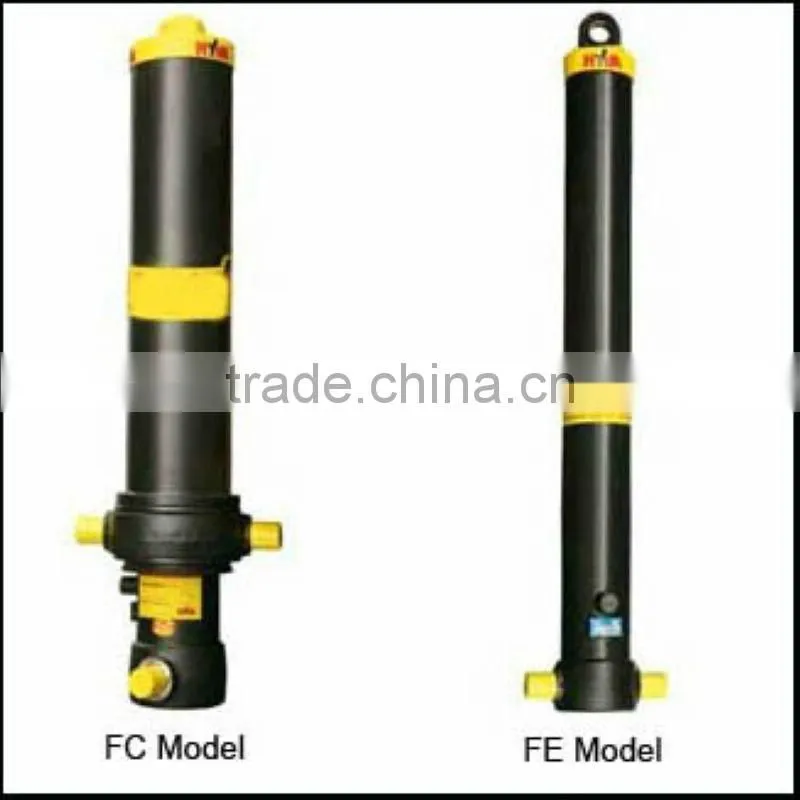

Pictures:
