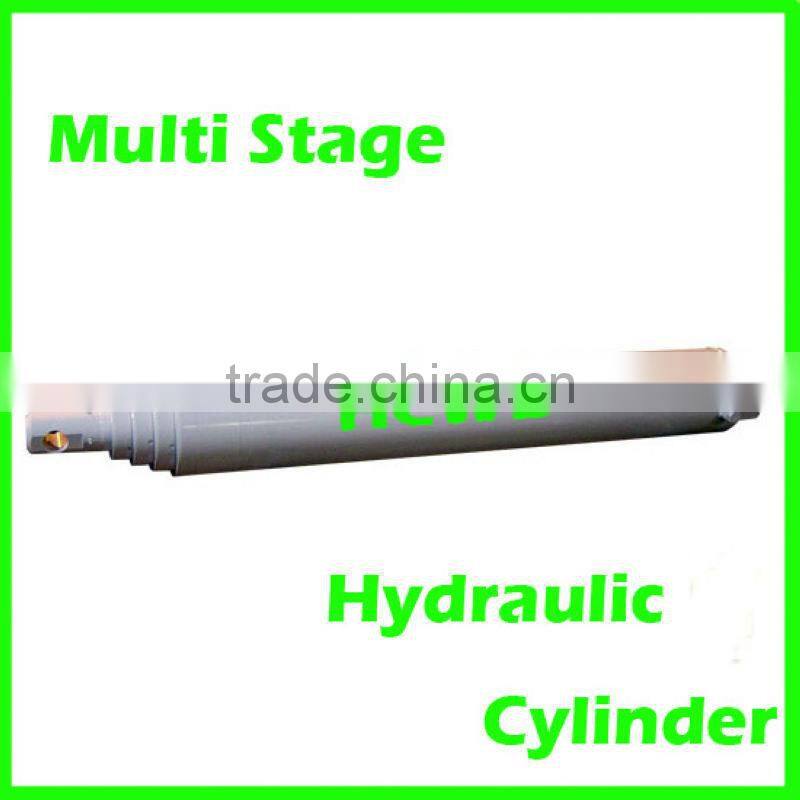

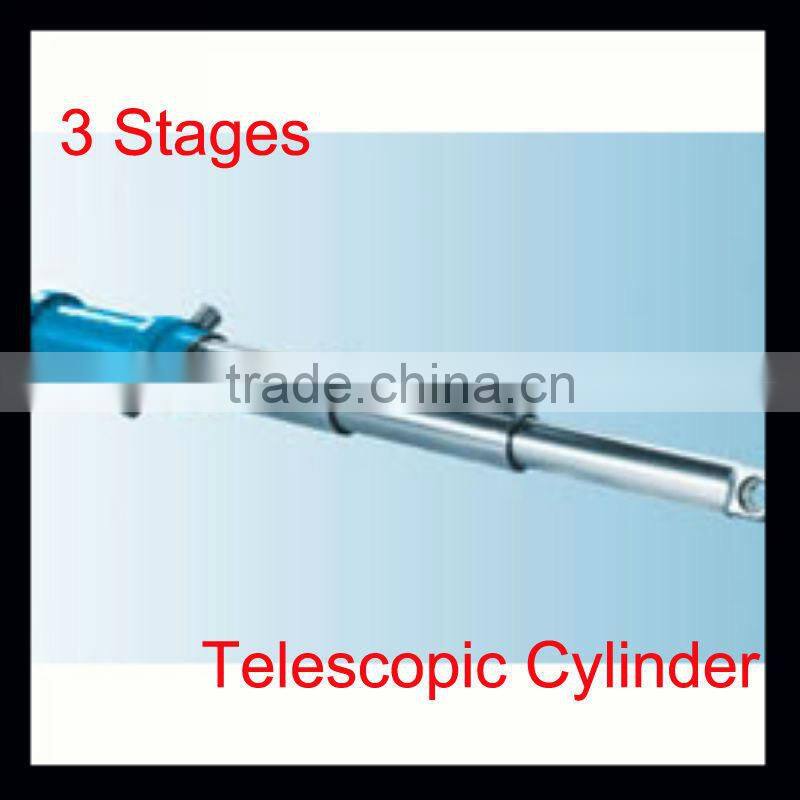

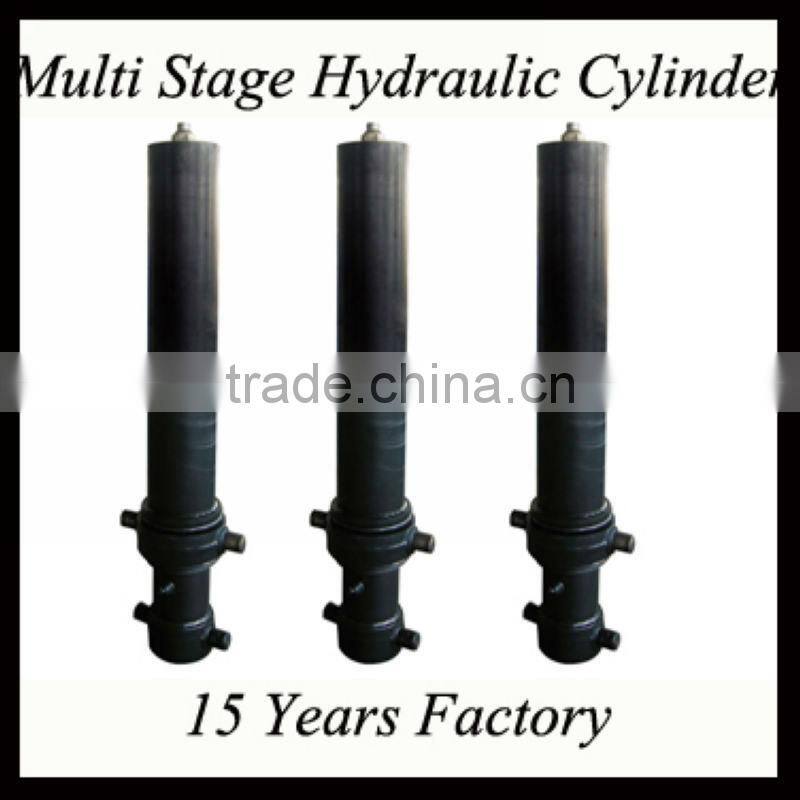

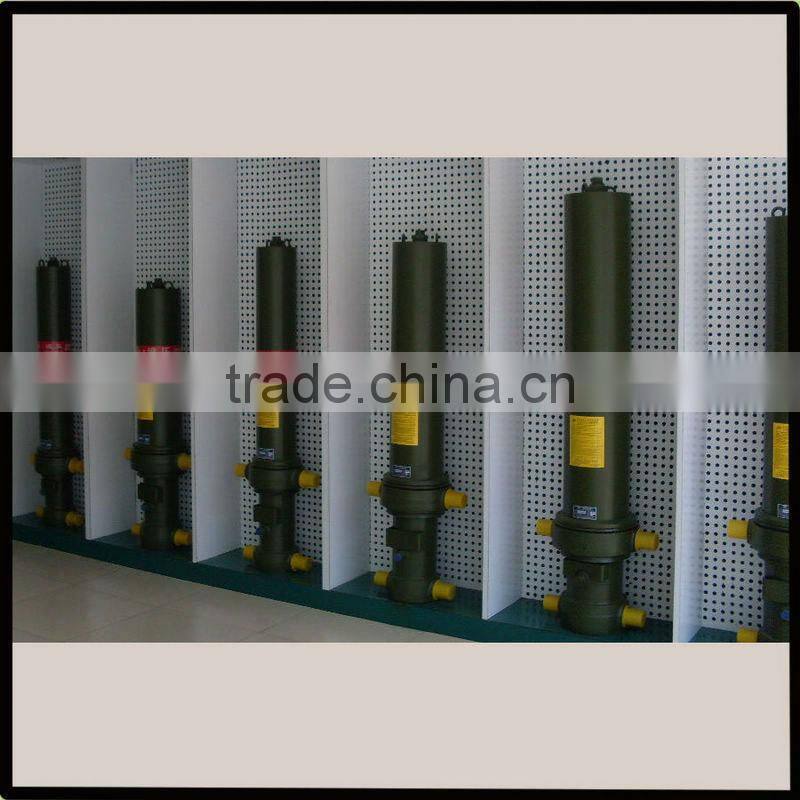

Hydraulic Cylinder for Trailer
Characteristic:
High Speed: Working speed is high, cycle time is short, working capacity is more.
High Efficiency: Light weight, more loading capacity.
High Strength: New design, new material.
-New design products, bigger diameter, more lifting capacity.
-Max working pressure reaches 190 bar,better anti-pressure ability.
-Special-purpose material, high quality, high-precision, better anti-bending ability.
-New model guide ring combined with Senior lubricating material,guarantee cylinder lift more smoothly and work long time.
-Modified seal structure, guarantee no oil leak under high pressure and bad working environments.
-New model stop collar combined with new model guide ring, maximum limit improve the working security and stability.

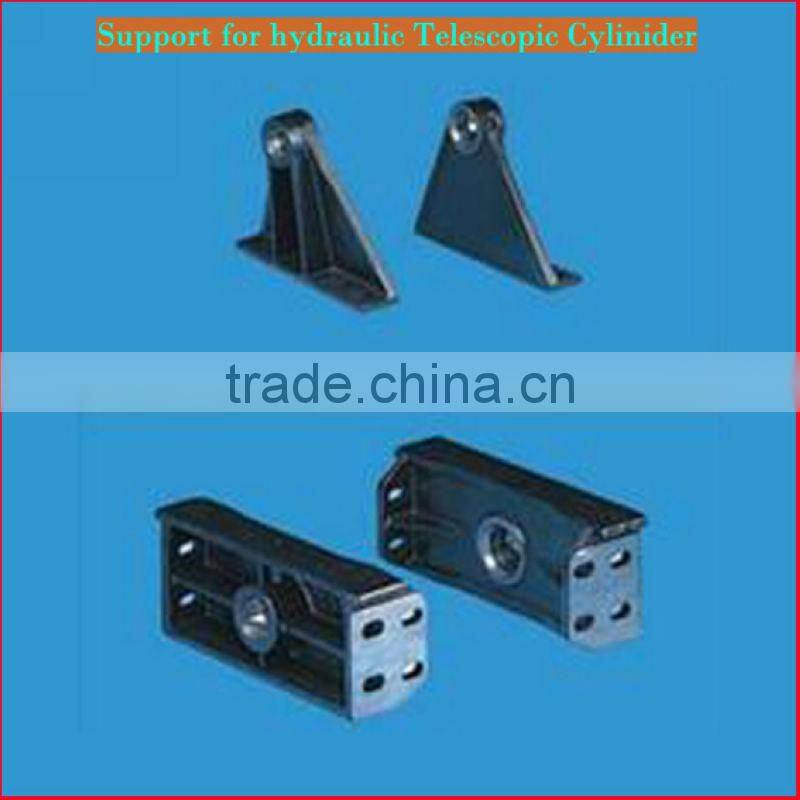

-Equiped with maintenance-free support, longer working life, bring you more benefit.
-Adopt "Less component integration" design philosophy, easy to maintain.

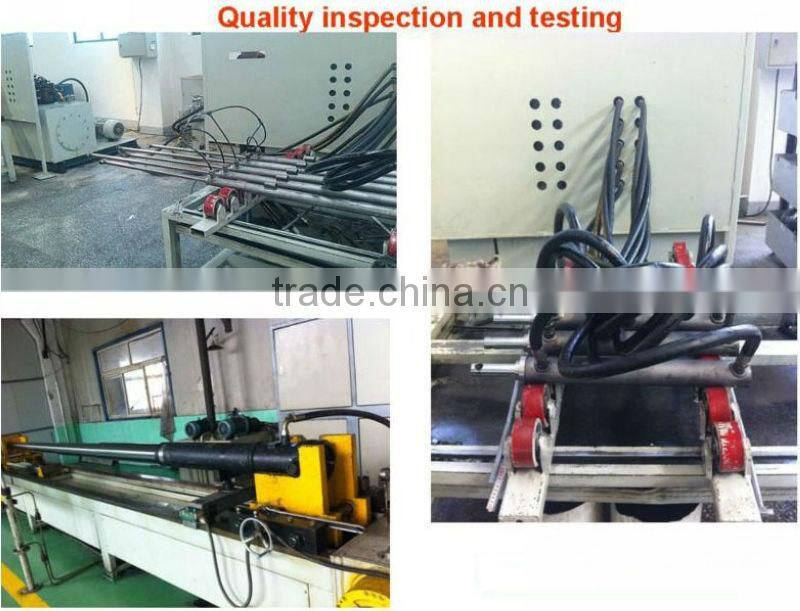

-Cylinder is tested 100%, guarantee high quality.
Specification:
| Model | Extended Stages | Working Pressure | Max.Stage Diameter | Max.stroke | Lifting Capacity |
| FC129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton |
| FC149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton |
| FC149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton |
| FC149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton |
| FC149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton |
| FC169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton |
| FC169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton |
| FC169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton |
| FC169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton |
| FC169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton |
| FC169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton |
| FC185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton |
| FC185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton |
| FC185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton |
| FC185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton |
| FC185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton |
| FC185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton |
| FC185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton |
| FC191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton |
| FC191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton |
| FC191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton |
| FC191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton |
| FC220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton |
| FC220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton |
Pictures:
