Home > Products > Dump Truck Cylinder > High Quality Tipper Trucks Hydraulic Cylinder

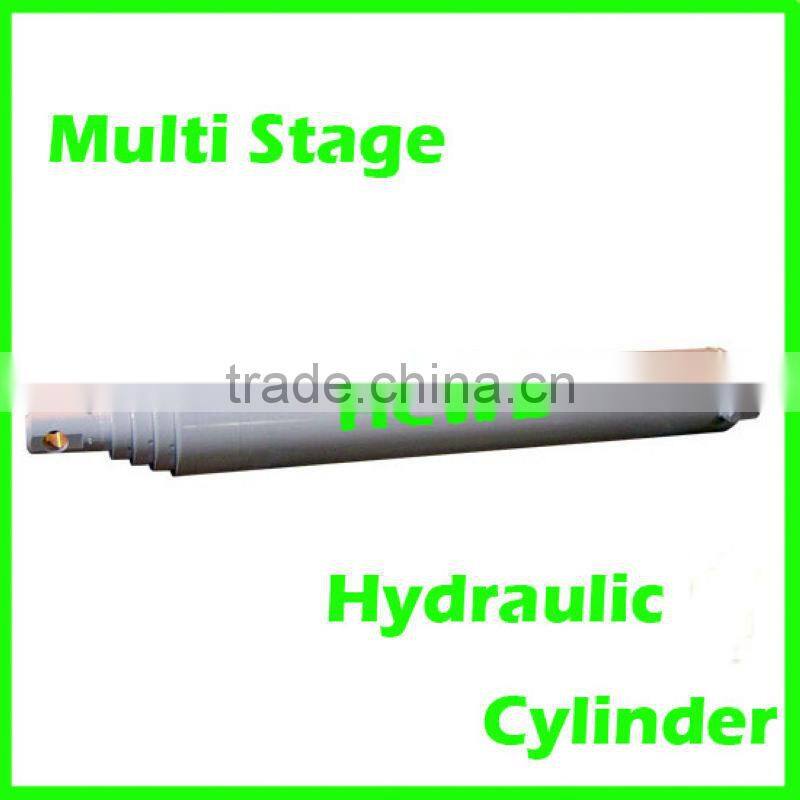

High Quality Tipper Trucks Hydraulic Cylinder
- 1000 Piece / Pieces per Month
- Qingdao/Ningbo/Shanghai/Tianjin
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Series Cylinder | Power: | Hydraulic |
Body Material: | Steel | Maximum Stroke: | 3880-9030mm | Shaft Diameter: | 129-220mm |
Place of Origin: | Shandong, China | Model Number: | TG Tipper Trucks Hydraulic Cylinder | Brand Name: | HCIC |
Product Description
1. We are leading manufacturer of Chinese Hydraulic Cylinder with 15 years experience and ISO9001:2008 Standard. Dump Truck Hydraulic Cylinder is our superior product.
2. While other suppliers offer 3 months quality guarantee, we can supply 1 year.
3. If you have other requirement, just feel free to contact us, we can design and manufacture accordingly.
Dump Truck Hydraulic Cylinder Specification:
Specification of Standard Products Dump Truck | |||||
Model | Extended Stages | Working Pressure | Max.Rod Diameter | Max.stroke | Lifting Capacity |
FC129-3E-3880 | 3 | 16-19 MPa | 129mm | 3880mm | 20-35 ton |
FC149-3E-3880 | 3 | 16-19 MPa | 149mm | 3880mm | 25-45 ton |
FC149-3E-4280 | 3 | 16-19 MPa | 149mm | 4280mm | 25-45 ton |
FC149-4E-3880 | 4 | 16-19 MPa | 149mm | 3880mm | 25-40 ton |
FC149-4E-4280 | 4 | 16-19 MPa | 149mm | 4280mm | 25-40 ton |
FC169-4E-4280 | 4 | 16-19 MPa | 169mm | 4280mm | 30-50 ton |
FC169-4E-4640 | 4 | 16-19 MPa | 169mm | 4640mm | 32-55 ton |
FC169-4E-5000 | 4 | 16-19 MPa | 169mm | 5000mm | 32-60 ton |
FC169-4E-5180 | 4 | 16-19 MPa | 169mm | 5180mm | 32-60 ton |
FC169-4E-5390 | 4 | 16-19 MPa | 169mm | 5390mm | 32-60 ton |
FC169-4E-5460 | 4 | 16-19 MPa | 169mm | 5460mm | 32-60 ton |
FC185-4E-4280 | 4 | 16-19 MPa | 185mm | 4280mm | 25-45 ton |
FC185-4E-4640 | 4 | 16-19 MPa | 185mm | 4640mm | 30-45 ton |
FC185-4E-5000 | 4 | 16-19 MPa | 185mm | 5000mm | 32-50 ton |
FC185-4E-5390 | 4 | 16-19 MPa | 185mm | 5390mm | 40-60 ton |
FC185-4E-5460 | 4 | 16-19 MPa | 185mm | 5460mm | 40-65 ton |
FC185-4E-5780 | 4 | 16-19 MPa | 185mm | 5780mm | 45-70 ton |
FC185-4E-6000 | 4 | 16-19 MPa | 185mm | 6000mm | 50-80 ton |
FC191-5E-5780 | 5 | 16-19 MPa | 191mm | 5780mm | 40-70 ton |
FC191-5E-6200 | 5 | 16-19 MPa | 191mm | 6200mm | 45-80 ton |
FC191-5E-7130 | 5 | 16-19 MPa | 191mm | 7130mm | 50-85 ton |
FC191-5E-9030 | 5 | 16-19 MPa | 191mm | 9030mm | 55-90 ton |
FC220-5E-7130 | 5 | 16-19 MPa | 220mm | 7130mm | 65-100 ton |
FC220-5E-9030 | 5 | 16-19 MPa | 220mm | 9030mm | 65-100 ton |

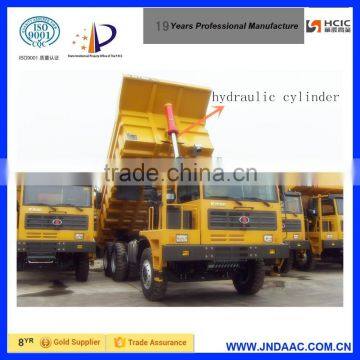

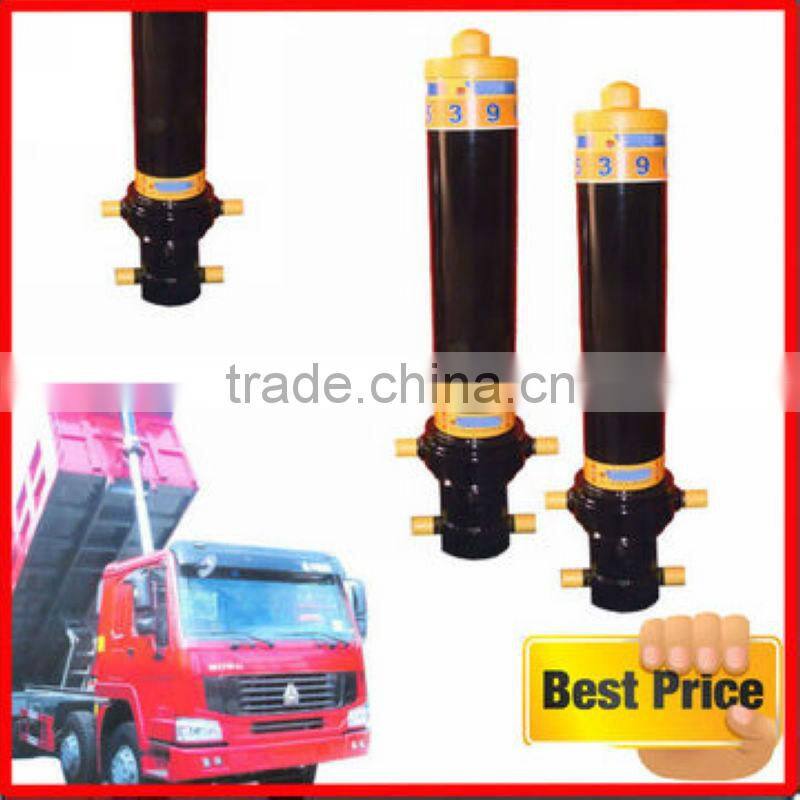

Pictures:
Company:
Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.
Our company scale as follows:
13 years production history
4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine
20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers
Solution To Some Problem:
