Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Famous Standard Telescopic Hydraulic Ram

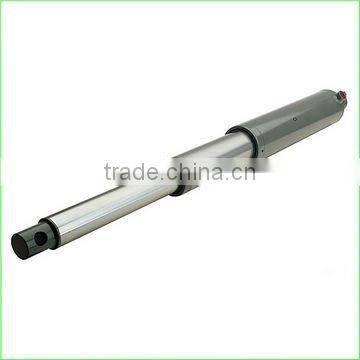

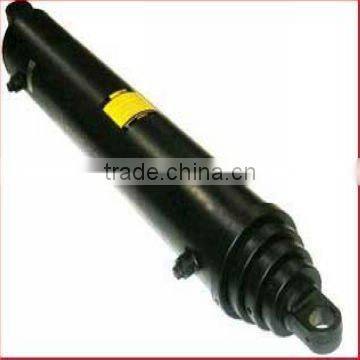

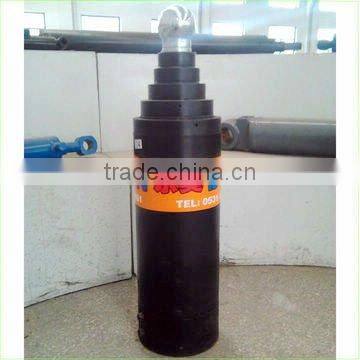

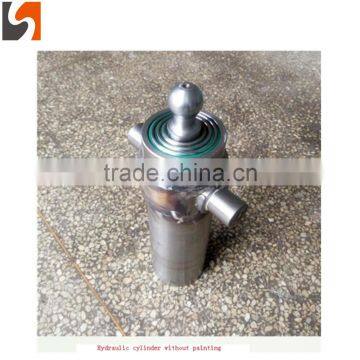

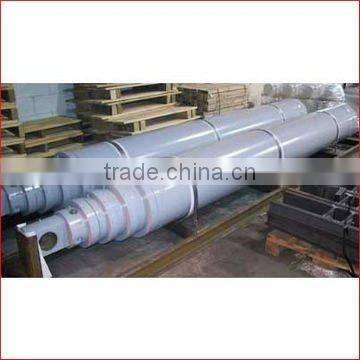

Famous Standard Telescopic Hydraulic Ram

Name: Famous Standard Telescopic Hydraulic Ram
Brand: HCIC
SKU: 140511372
Availability: InStock

Famous Standard Telescopic Hydraulic Ram thumbnail-1

Famous Standard Telescopic Hydraulic Ram thumbnail-2

Famous Standard Telescopic Hydraulic Ram thumbnail-3

Famous Standard Telescopic Hydraulic Ram thumbnail-4

Famous Standard Telescopic Hydraulic Ram thumbnail-5

Famous Standard Telescopic Hydraulic Ram thumbnail-6

Famous Standard Telescopic Hydraulic Ram photo-1

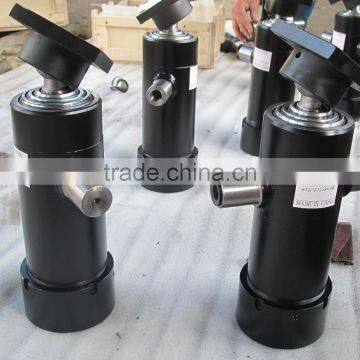

Famous Standard Telescopic Hydraulic Ram photo-2

Famous Standard Telescopic Hydraulic Ram photo-3

Famous Standard Telescopic Hydraulic Ram photo-4

Famous Standard Telescopic Hydraulic Ram photo-5

Famous Standard Telescopic Hydraulic Ram photo-6

US$ 100 - 1,000 MOQ: 10 Sets

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Piston Cylinder

Power:

Hydraulic

Contact Supplier Request Quote Chat Now

Jinan Huachen Weida Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Piston Cylinder

Power Hydraulic

Body Material Steel

Maximum Stroke Up to 9030mm

Shaft Diameter 129-220mm

Place of Origin Shandong, China

Model Number Many Stages Hydraulic Cylinders

Brand Name HCIC

We have focused on Hydraulic Cylinder for more than 15 years. Multi stages hydraulic cylinders is one of the products we are skilled in. Now this kind of cylinder finds good market all over the wold. Australia, Malaysia, Thailand, America, Ireland and many many countries have our clients. Hope we can get the honour to cooperate with you.

Specification:

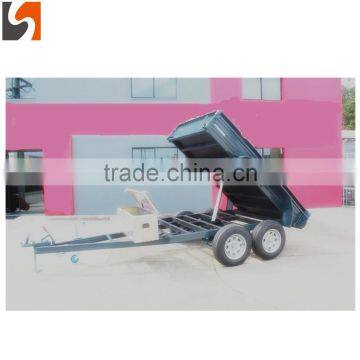

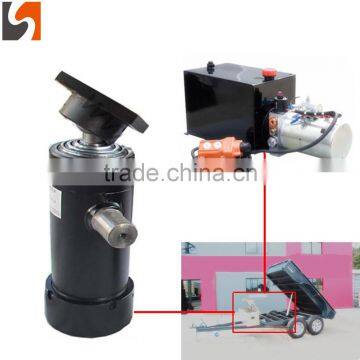

Specification of Standard Products for Dump Truck
Model	Extended Stages	Working Pressure	Max.Rod Diameter	Max.stroke	Lifting Capacity
FC129-3E-3880	3	16-19 MPa	129mm	3880mm	20-35 ton
FC149-3E-3880	3	16-19 MPa	149mm	3880mm	25-45 ton
FC149-3E-4280	3	16-19 MPa	149mm	4280mm	25-45 ton
FC149-4E-3880	4	16-19 MPa	149mm	3880mm	25-40 ton
FC149-4E-4280	4	16-19 MPa	149mm	4280mm	25-40 ton
FC169-4E-4280	4	16-19 MPa	169mm	4280mm	30-50 ton
FC169-4E-4640	4	16-19 MPa	169mm	4640mm	32-55 ton
FC169-4E-5000	4	16-19 MPa	169mm	5000mm	32-60 ton
FC169-4E-5180	4	16-19 MPa	169mm	5180mm	32-60 ton
FC169-4E-5390	4	16-19 MPa	169mm	5390mm	32-60 ton
FC169-4E-5460	4	16-19 MPa	169mm	5460mm	32-60 ton
FC185-4E-4280	4	16-19 MPa	185mm	4280mm	25-45 ton
FC185-4E-4640	4	16-19 MPa	185mm	4640mm	30-45 ton
FC185-4E-5000	4	16-19 MPa	185mm	5000mm	32-50 ton
FC185-4E-5390	4	16-19 MPa	185mm	5390mm	40-60 ton
FC185-4E-5460	4	16-19 MPa	185mm	5460mm	40-65 ton
FC185-4E-5780	4	16-19 MPa	185mm	5780mm	45-70 ton
FC185-4E-6000	4	16-19 MPa	185mm	6000mm	50-80 ton
FC191-5E-5780	5	16-19 MPa	191mm	5780mm	40-70 ton
FC191-5E-6200	5	16-19 MPa	191mm	6200mm	45-80 ton
FC191-5E-7130	5	16-19 MPa	191mm	7130mm	50-85 ton
FC191-5E-9030	5	16-19 MPa	191mm	9030mm	55-90 ton
FC220-5E-7130	5	16-19 MPa	220mm	7130mm	65-100 ton
FC220-5E-9030	5	16-19 MPa	220mm	9030mm	65-100 ton

Pictures:

Company:

Jinan Gaoxin Huaneng Pneumatic & Hydraulic Co., Ltd (GXHN), established in 1997, is the symbol and best manufacturer in Hydraulic and Pneumatic components field in Shandong Province of China. We company, Jinan Huachenweida Trade Co., Ltd, as the exporting branch office of GXHN, Mainly take charge of promoting our products to all over the world. Now The sales of exporting reaches 10 million one year.

Our company scale as follows:
13 years production history

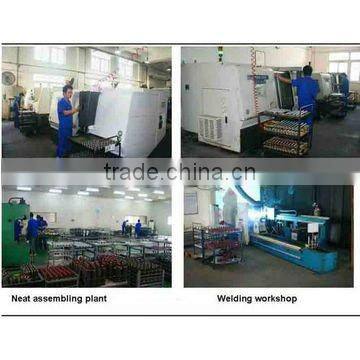

4 manufacturing base
150 sets Normal Lathe
10 sets grinder machine
10 sets buffing machine
50 sets drilling machine

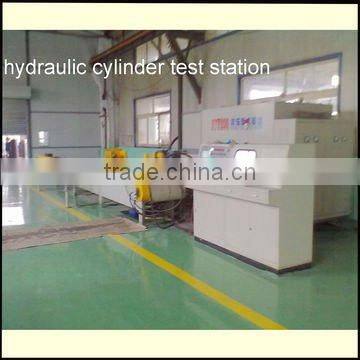

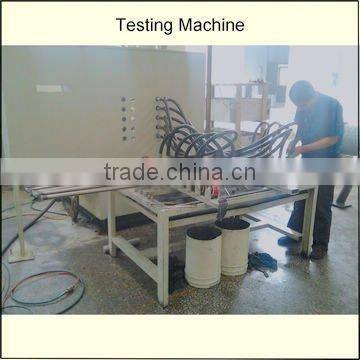

20 sets testing machine
5 sets bending machine equipments of Telescopic Cylinders
1000 staff
30 Technical engineers
30 professional Sales engineers

R&D Capacity:
GXHN Standard Series Hydraulic Cylinder:
1. Stroke Length:Up to 9030mm
2. Rod Diamster: Up to 400mm
3. Load capacity: Up to 300 ton
4. Extended Stages: 1/2/3/4/5/6/7
5. Working pressure:C--6.3MPa; E--16MPa; G--25MPa; H--32MPa
6. Material: 1020 Steel , 1045 steel , AISI4140 , Q235 Steel ,St 52
7. Working temperature from -50°c to +80°c
8. High strengtgh seamless steel tube.
9. One year quality guarantee
10.Dual low resistance dust proof design
