Specifications
1.Flow stability and without material splash2.Can adjust the rotational speed of motor and control flow rate
3.Low noise
≡≡The pictures
≡ ≡Brief Introduction

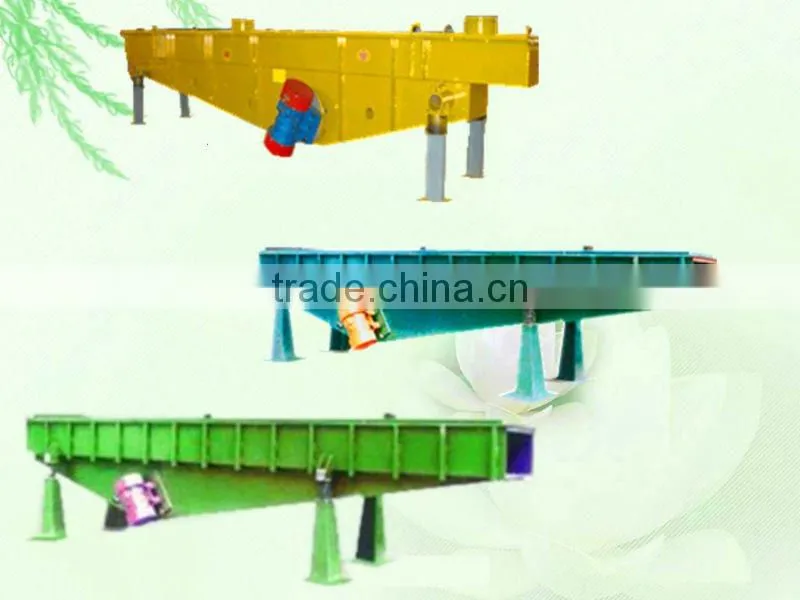

GZG series vibrating feeder is a kind of linear vibrating feeder machine, consisting of vibrating frame, vibration motor, spring, bearing seat, wear liner, etc
≡ ≡Feeding style
Ration feeding, automatic batching, link in autocontrol feeding
≡ ≡Operating Principle
Making use of synchronous principle of two vibration motors, generating resultant force of 60 degree in horizontal plane. Through periodic vibration, it makes materials be tossed and move forward in a straight line in the feeding trough. That achieves the objective that transfers granular, block and powdery materials from hopper into receiving equipments uniformly, quantificationally and continuously.
≡ ≡Features
• Simple structure, light weight, easy to operate and maintain
• Low noise and low power consumption
• Can adjust the rotational speed of motor and control flow rate
• Flow stability and without material splash
≡ ≡Can be customize as the follows:
• Open type
• Sealed type
• Vibration motors are installed in the lower parts of feeder
• Vibration motors are installed in the upper parts of feeder
• Control of motor speed: vibration motor can be stepless speed adjusted during rated frenquency of 50%-100%
• Pedestal type: suitable for heavy-duty feeder
≡ ≡Application fields
Widely used in metallurgy, coal, chemical, construction, ceramic, food, machinery, light industry, etc.
