Specifications
1.Conveying powdery and particle material, such as coal, grain,cement, chemicals2.Simple structure, low noise
3. ISO9001:2008

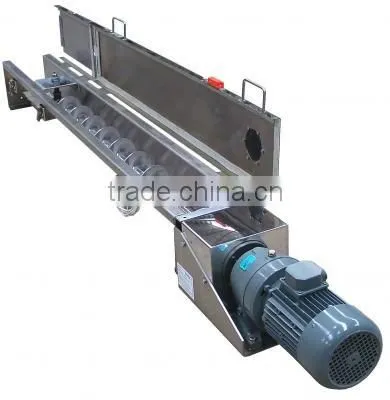

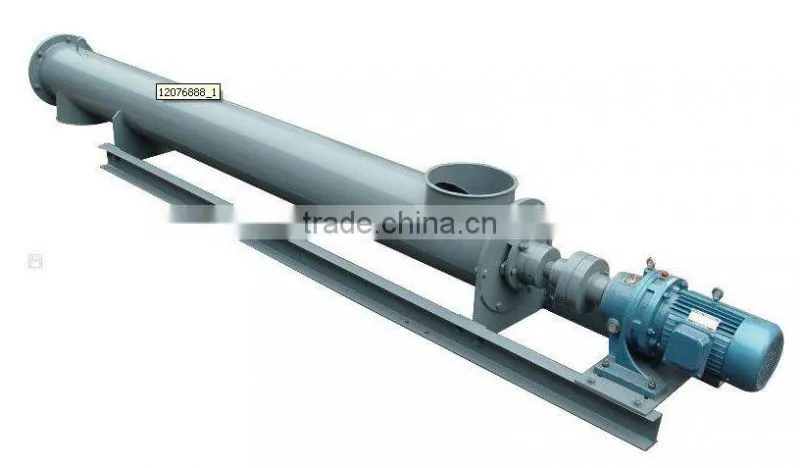

LS Type Screw Conveyor
1. Brief Introduction

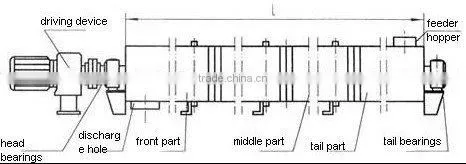

A screw conveyor is a mechanism that uses a rotating helical screw blade within a tube to move liquid or granular material. It adopts the head and tail bearing moving to outside of the shell, with sliding hanging bearing, dust-proof seal device.
2. Features
v Overall reliability
v Long service life
v Easy installation and maintenance
v Low noise
3. Application
v Applicable industry: construction, chemical, power sector, metallurgy, coal, food, pharmaceutical industry, etc.
v Conveying material: it is suitable for conveying powder, granular or small block material, such as coal, dust, slag, cement, grain, etc.

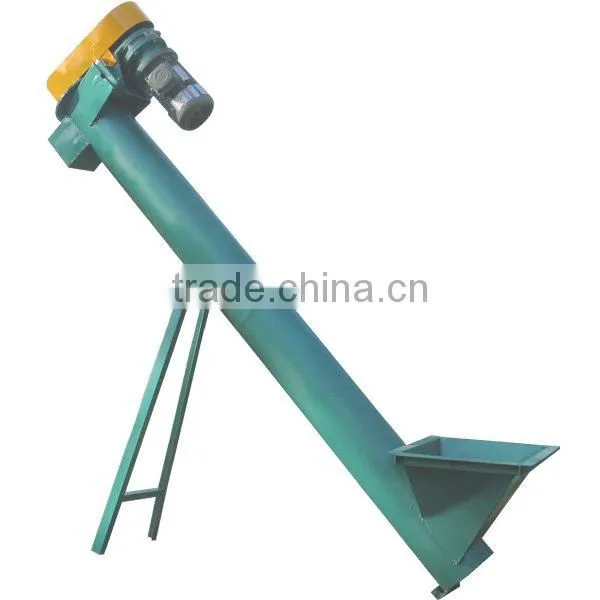

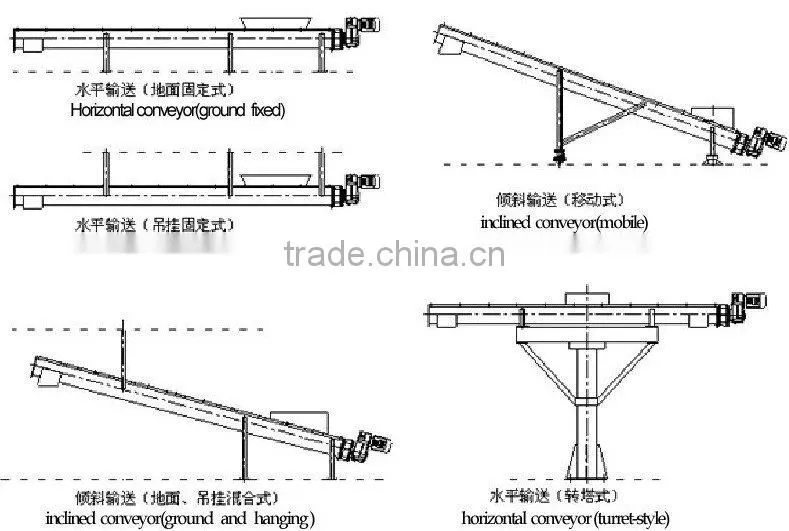

v The screw conveyor can be horizontal, inclined or vertical. The length is from 3.5m to 80m, the temperature of conveying material not exceed 200 centigrade.
4. Main parameters
Model |
Screw Diameter |
Screw Pitch |
Rotation Speed |
Length |
Conveying Capacity |
Power |
D (mm) |
S (mm) |
(r/min) |
(m) |
(m3/h) |
(kw) |
|
LS-100 |
100 |
100 |
140 |
10 |
2.2 |
1.1 |
LS-160 |
160 |
160 |
120 |
7.6 |
1.5 |
|
LS-200 |
200 |
200 |
90 |
11 |
2.2 |
|
LS-250 |
250 |
250 |
90 |
22 |
2.4 |
|
LS-315 |
315 |
315 |
75 |
36.4 |
3.2 |
|
LS-400 |
400 |
355 |
75 |
66.1 |
5.1 |
|
LS-500 |
500 |
400 |
60 |
93.1 |
5.1 |
|
LS-630 |
630 |
450 |
60 |
160 |
8.6 |
|
LS-800 |
800 |
500 |
45 |
223 |
12 |
|
LS-1000 |
1000 |
560 |
35 |
304 |
16 |
|
LS-1250 |
1250 |
630 |
30 |
458 |
24.4 |
5. Note: Pls feel free to contact us for further information.
