≡Brief Introduction
1. A bucket elevator is used to elevate bulk materials vertically.

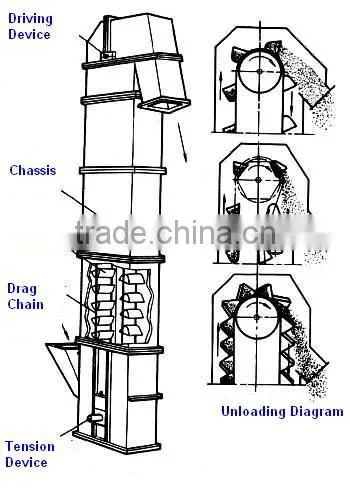

2. The elevator consists of
—Buckets to contain the material
—A belt to carry the buckets and transmit the pull
—A means to drive the belt
—Accessories for loading the buckets or picking up the material, for receiving the discharged material, for maintaining the belt tension and for enclosing and protecting the elevator
3. A bucket elevator can elevate a variety of bulk materials from light to heavy and from fine to large lumps, such as coal, cement, gravel, sand, clay, mineral ore, grain, fertilizer etc.
4. The maximum hoisting height is 20m. The temperature of conveying material is less than 60°C.
≡Features
—Large conveying capacity
—High hoisting height
—Smooth and reliable operation
—Long operating life

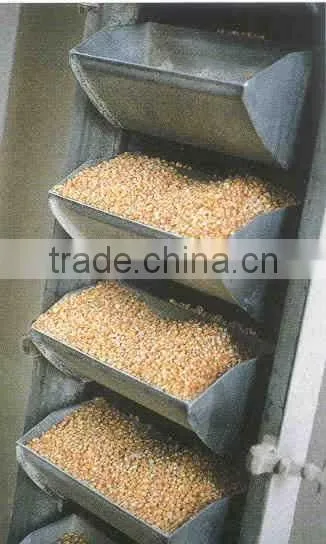

≡Pictures

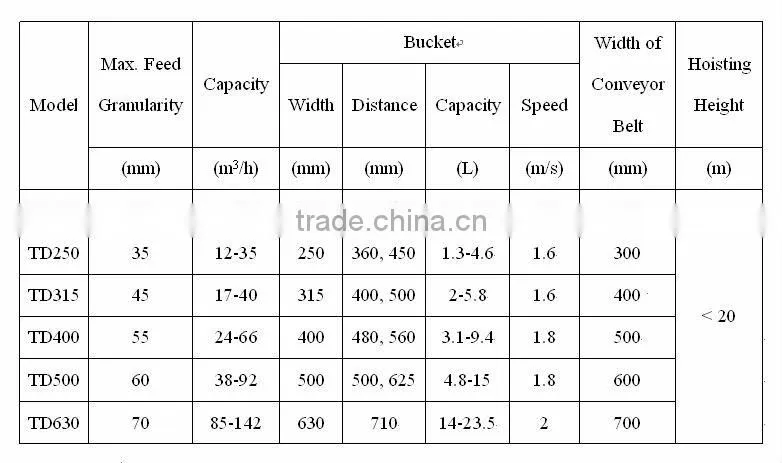

≡Technical Parameters
Our Company
We have more than 15 years experience in making screening equipment, conveyor system, elevator and vibrating feeder, so we can provide you professional technical guidance. And our company has passed the ISO9001:2008 Quality System Certificate, and obtained the CE Certificate.
We have ever exported equipments to America, Australia, Canada, Chile, Trinidad and Tobago, Peru , Ghana, Iran, Romania ect. And the perfect quality of the machine acquire many my customers' great praise.
