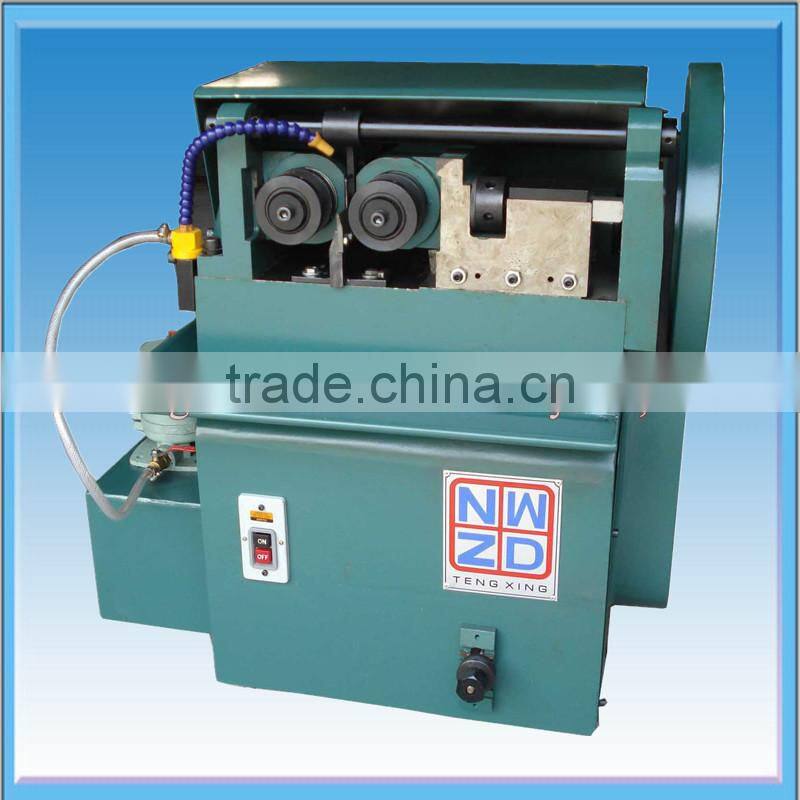

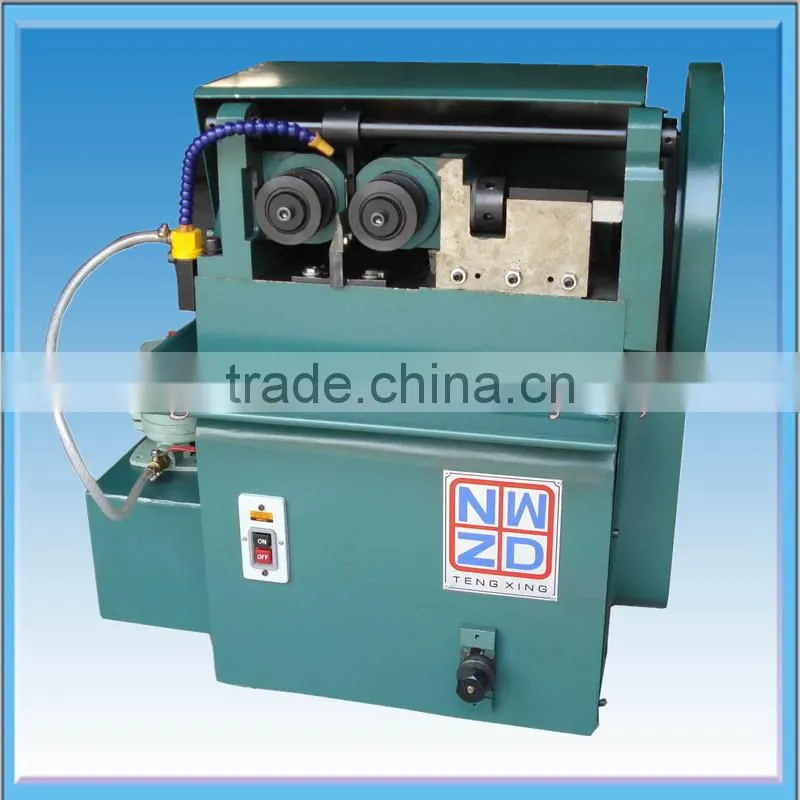

Hot Sale Thread Rolling Dies/Thread Rolling Machine
1.Machine introduction of thread rolling dies
This model is widely praised for its rational price, easy maintenance and high quality. Besides axial and radial process, it is used to process regular and irregular bolt, through screw etc. with optional embossing roller. The through screw made with this machine in ZheJiang Standard parts base has been exported to US, Canada and Europe.
2.Technical parameters of thread rolling dies
Pressure of Roller max. |
150KN |
Rotary Speed of Main Shaft |
36,47,60,78(r/min) |
Working Dia |
4-48mm |
Feed Speed of Movable shaft |
5mm/s |
OD of Roller |
120-170mm |
Thread Length |
(no limits) |
BD of Roller |
54mm |
Main Power |
4kw |
Roller Width max |
100mm |
Hydraulic Power |
2.2kw |
Dip Angle of Main Shaft |
±5° |
Weight |
1700kg |
Center Distance of Main shaft |
120-240mm |
Size |
1480×1330×1440mm |
3.Contact information of thread rolling dies:
If you need further information, please contact us freely, we will do our best to cooperate with you.
