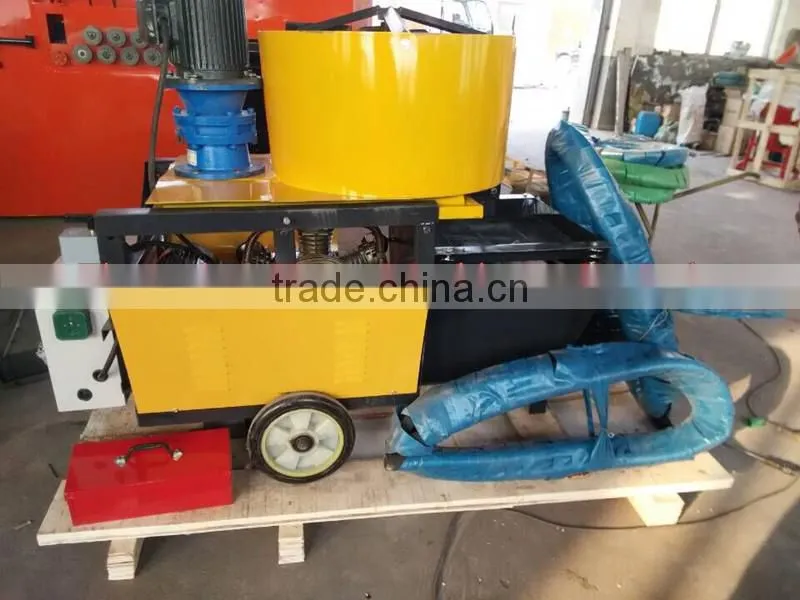

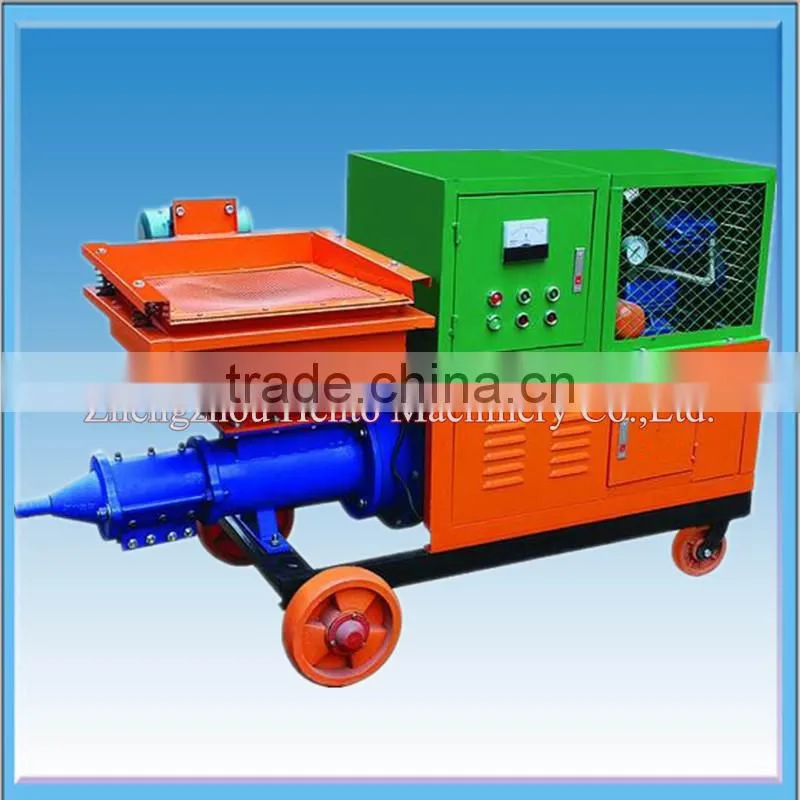

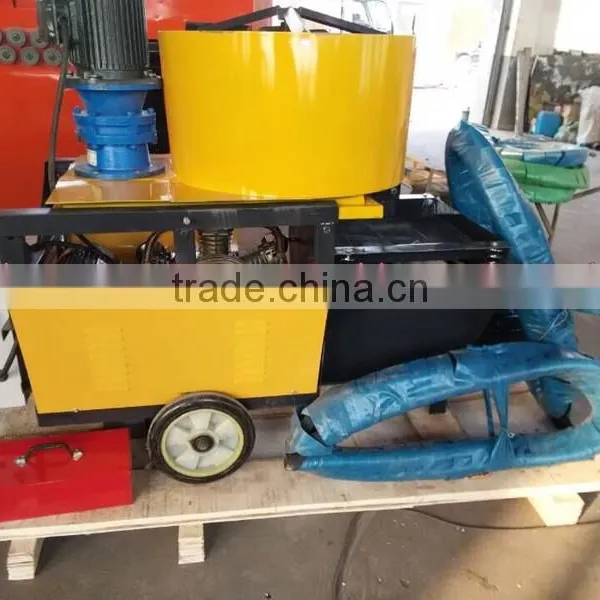

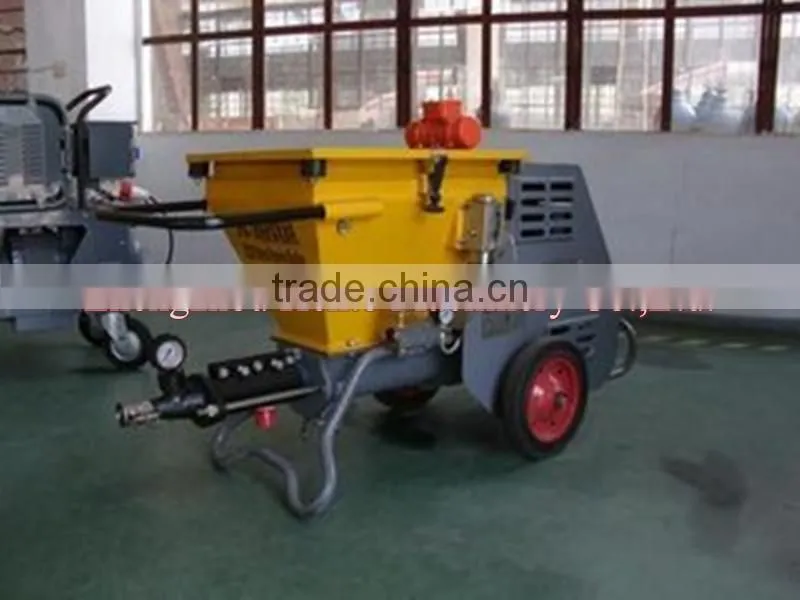

Automatic Wall Painting Machine/Cement Mortar Spraying Machine
1.Machine introduction of automatic wall painting machine
1. JP50/100 is high cost-effective machine introduced German technology.
2. It’s applicable to delivery, bonding and plastering for various kinds of plastering mortar, thermal insulation mortar, floor surface mortar, thick layer of mortar, bonding mortar, masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.
3. Wall paint machine equips mixer system and has the combined functions of mixing, pumping, bonding and plastering.
4. wall paint machine configures large output mortar pump. Pumping max height:40m and max distance:60m.
5. wall paint machine provides with variable regulation for speed, pressure and output. You can adjust from 0-50L/min thought the hand wheel on motor.
6. wall paint machine set the pressure control and protection mechanism to achieves the remote control.
2.Technical parameters of automatic wall painting machine
Model |
HTO-JP50 |
HTO-JP100 |
Hopper Volume |
50L |
100L |
Voltage |
380v |
380V |
Power |
7.5kw |
7.5kw |
Maximum grain size |
4mm |
4mm |
Output |
3 m3/h |
3 m3/h |
Max pressure |
3mpa |
3mpa |
Sparying distance |
50m |
50m |
Sparying height |
20m |
20m |
Weight |
320kg |
400kg |
3.Contact information for automatic wall painting machine:
If you need further information, please contact us freely, we will do our best to cooperate with you.
