high safety vertical axis wind generation/low rpm wind power generator for home use

Specifications

high safety vertical axis wind generation/low rpm wind power generator for home use
1.high safety
2.low noise
3.CE and ISO

high safety vertical axis wind generation/low rpm wind power generator for home use



1.specification:



Model	JFVC-300W
diameter of wind wheel (m)	1.6

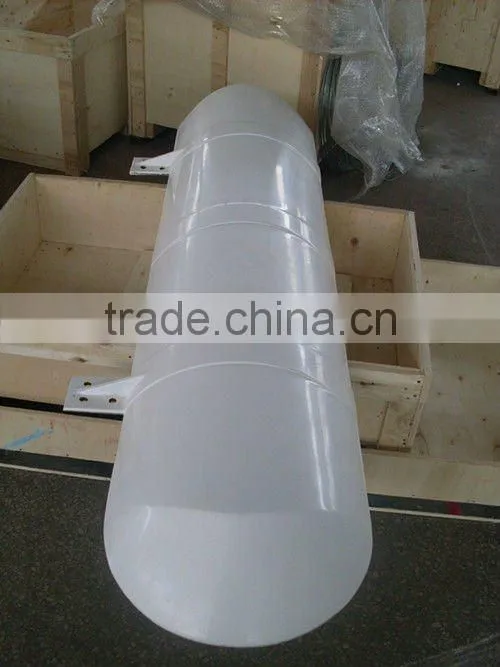

material of blades	Fiberglass-Reinforced Plastics
blades number	5
blades length (mm)	1120
blades width (mm)	360
RPM (r/min)	80
rated wind speed (m/s)	12
start up wind speed (m/s)	2
working wind speed (m/s)	3-25
survival wind speed (m/s)	40
generator style	3-phase AC PMG
protection grade of generator	IP54
material of generator case	cast iron
rated power (w)	300
the max. power (w)	350
rated voltage (VDC)	12/24v
the height of tower (m)	6
guy cable tower type (mm)	89*6

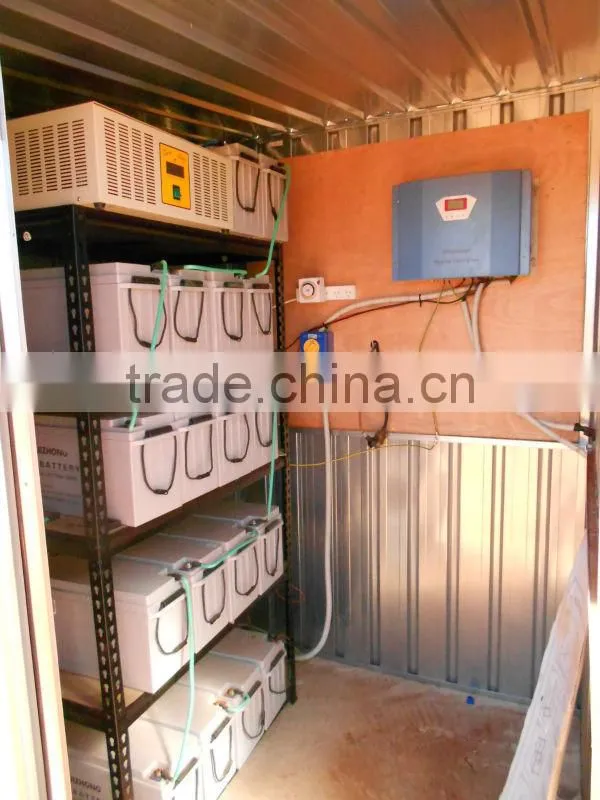

controller and inverter	advanced wind & solar hybrid controller and pure sine wave inverter
battery reference	12V100ah, 2pcs













2.related products:300w/500w/1kw/2kw/3kw/5kw



3.certification:





About us:

Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind generator manufacturer.









Our hot-sale products have following four series:



1.Vertical axis wind generator:300W,500W,1KW,2KW,3KW,5KW



 2.Vertical low RPM PMG:



300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,



5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM



3.Horizontal axis wind generator:1KW,2KW,3KW,5KW,10KW



4.Wind and solar hybrid (street lamp) system















4.packing:
