Specifications
20kw wind & solar hybrid system priceswind turbine
high efficiency
wind and solar hybrid
free energy generator
20kw wind & solar hybrid system prices
| Model | JFNH-10KW |
| diameter of wind wheel | 7.4m |
| material of blades | Fiberglass-Reinforced Plastics |
| blades number | 3 |
| RPM | 200r/min |
| rated wind speed | 13m/s |
| start up wind speed | 3m/s |
| working wind speed | 3-30m/s |
| survival wind speed | 50m/s |
| generator style | 3-phase AC PMG |
| protection grade of generator | IP54 |
| material of generator case | Q235 |
| rated power | 10kw |
| the max. power | 12kw |
| rated voltage (DC) | 220v / 380v |
| the height of tower | 12m |
| guy cable tower type | 219mm |
| top weight(generator + blades) | 460kg |
| brake type | Centrifugal wheel intelligent slowing down |
| controller and inverter | advanced wind & solar hybrid controller and pure sine wave inverter / on grid |
| battery reference | 12V150ah,30pcs |

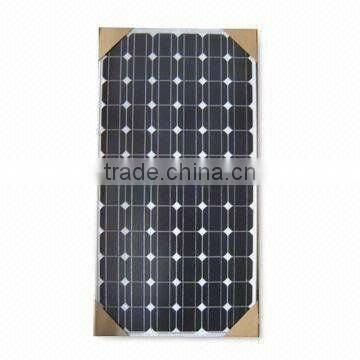

Encapsulation Glass/EVA/Cells/ EVA/TPT |
Size and Number of cells 156mm×156mm 72/6×12pcs |
Maximum Power (Pmax) W 250W |
Tolerance ± 5% |
Open Circuit Voltage (Voc) V 43.8V |
Short Circuit Current (lsc) A 7.87A |
Maximum Power Voltage (Vmp) V 34.6V |
Maximum Power Current (lmp) A 7.23A |
Max.syst. Oper. Voltage V 1000V |
Dimension mm 1956*992*50 |
Weight kg 24 |
Operate Temp. scope°C -40 / +85°C |
Relative humidity 0 to 100% |
Resistances 227g steel ball fall down from 1m height and 60m/s wind |
Warranty Pm is not less than 90% in 10 years and 80% in 25 years |
