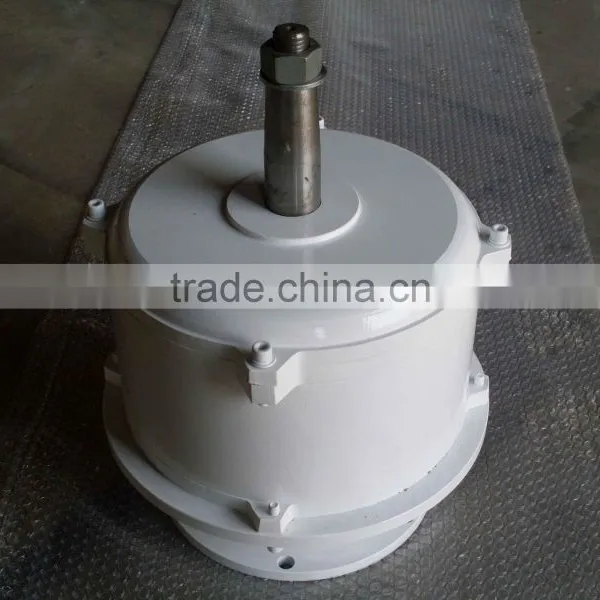

300w small magnetic pmg generator for sale

Specifications

300w small magnetic pmg generator for sale
low noise
high safety
low rpm
low speed

300w small magnetic pmg generator for sale





Parameter:

model	JFVC-300W	JFVC-500W	JFVC-1KW	JFVC-2KW	JFVC-3KW	JFVC-5KW
diameter of wind wheel	1.6m	1.8m	2.2m	2.4m	2.7m	2.7m
blades material	fiberglass reinforced plastics
blades number	5	5	5	5	5	5
length of blades	1120mm	1650mm	1830mm	2160mm	2600mm	3000mm
width of blades	360mm	410mm	410mm	450mm	500mm	500mm
RPM	80(r/min)	80(r/min)	50(r/min)	50(r/min)	50(r/min)	50(r/min)
rated wind speed	12m/s	12 m/s	14m/s	14m/s	15m/s	15 m/s
start up wind speed	2m/s	2m/s	2.5m/s	2.5m/s	2.5m/s	2.5m/s
work up wind speed	3-25(m/s)	3-25(m/s)	3-25(m/s)	3-25(m/s)	3-30(m/s)	3-30(m/s)
survival wind speed	40m/s	40m/s	40m/s	40(m/s)	40(m/s)	40(m/s)
generator type	3 phase permanent magnet generator
proyection grade of generator	IP54
generator material	cast iron		cast iron / Aluminum
rated power	300W	500W	1KW	2KW	3KW	5KW
max power	350W	550W	1.2KW	2.5KW	3.5KW	5.5KW
rated voltage (DC)	12V/24V	24V/48V	24V/48V	48V/96V/120V	220V	220V
tower height	6m	6m	8m	8m	8m	9m
cable tower type(mm)	89*6	96*6	114*6	114*6	203*6	203*6
controoler,inverter	wind & solar hybrid controller,sine wave inverter			wind & solar hybrid controller,sine wave inverter   / on-grid controller and inverter
battery	12V100ah, 2pcs	12V100ah, 2pcs	12V100ah, 4pcs	12v150ah 4pcs/         12V100ah 8pcs	12v100ah 18pcs	12V150ah,18 pcs





Note:

1.Concern Tower:

We can supply two kinds of tower for option, the advantage and disadvantage as follow:

(1).Guy cable tower: Cheapest tower. Cheaper delivery cost, light weight. But need more space and more concrete.

(2).Freestand tower: More beautiful. Need small area for foundation. No steel wire But a little expensive.

2. Concern controller/inverter:

(1).Optional by-pass function : The off grid system can have bypass function, that is to say grid switch function. When no wind, and battery no power, the inverter can switch to grid.Inverter has a build in switch to change from batteries to grid when the battery voltage is lower than rated voltage.

(2).Optional wind turbine low-voltage charge function, making full use of low wind power.



Our company:

Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind turbine manufacturer. We have a strong research and development team. At present, our main products are

1.Vertical axis wind turbine:300W,500W,1KW,2KW,3KW,5KW

2.Vertical low RPM PMG:300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM

3.Horizontal axis wind turbine:300W,500W,1KW,2KW,3KW,5KW,10KW

4.Wind and solar hybrid system
