48V/96V vertical windmill generator/2kw electric windmills with low noise for home use

Specifications

48V/96V vertical windmill generator/2kw electric windmills with low noise for home use
1.CE/ISO
2.high safety
3.low start

48V/96V vertical windmill generator/2kw electric windmills with low noise for home use

1.specification:

Model	JFVC-2KW
diameter of wind wheel (m)	2.4
material of blades	Fiberglass-Reinforced Plastics
blades number	5
blades length(mm)	2160
blades width(mm)	450
RPM(r/min)	50
rated wind speed(m/s)	14
start up wind speed(m/s)	2.5
working wind speed(m/s)	3-25
survival wind speed(m/s)	40
generator style	3-phase AC PMG
protection grade of generator	IP54
material of generator case	cast iron / aluminium
rated power(w)	2000
the max. power(w)	2500
rated voltage (VDC)	48/96/120
the height of tower(m)	8
guy cable tower type(mm)	114*6

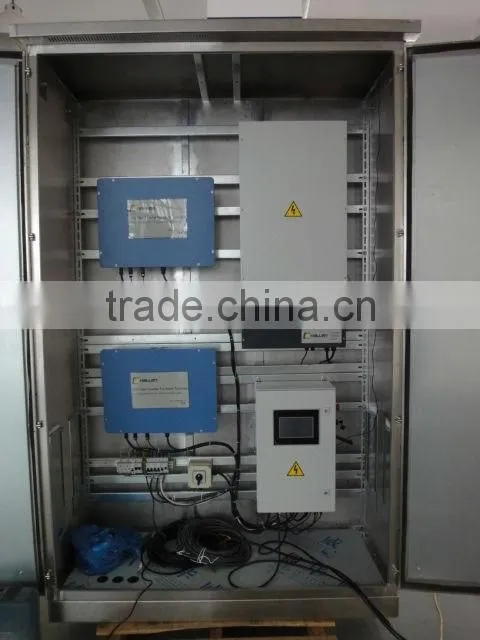

controller and inverter	advanced wind & solar hybrid controller and pure sine wave inverter /   on grid
battery reference	12v150ah 4pcs/12V100ah 8pcs



2.off grid:





3.on grid:



Blades:













Relate products: 1kw/300w/500w/3kw/5kw vertical wind generator.

4.certification:ISO and CE

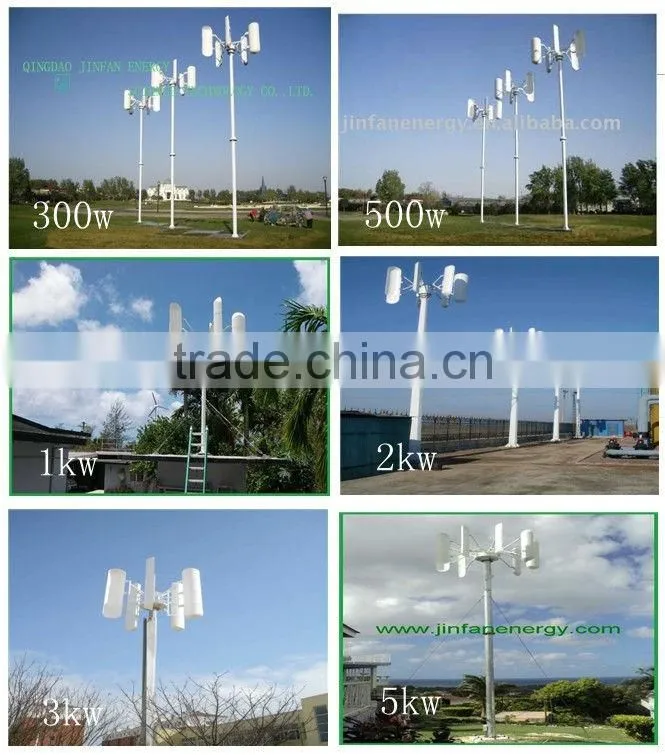

5.related products:  300w 500w 1kw 2kw 3kw/5kw(generator)

About us:

Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind generator manufacturer.









Our hot-sale products have following four series:



1.Vertical axis wind generator:300W,500W,1KW,2KW,3KW,5KW



 2.Vertical low RPM PMG:



300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,



5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM



3.Horizontal axis wind generator:1KW,2KW,3KW,5KW,10KW



4.Wind and solar hybrid (street lamp) system







6.Packing:
