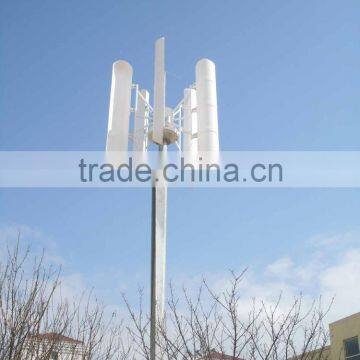

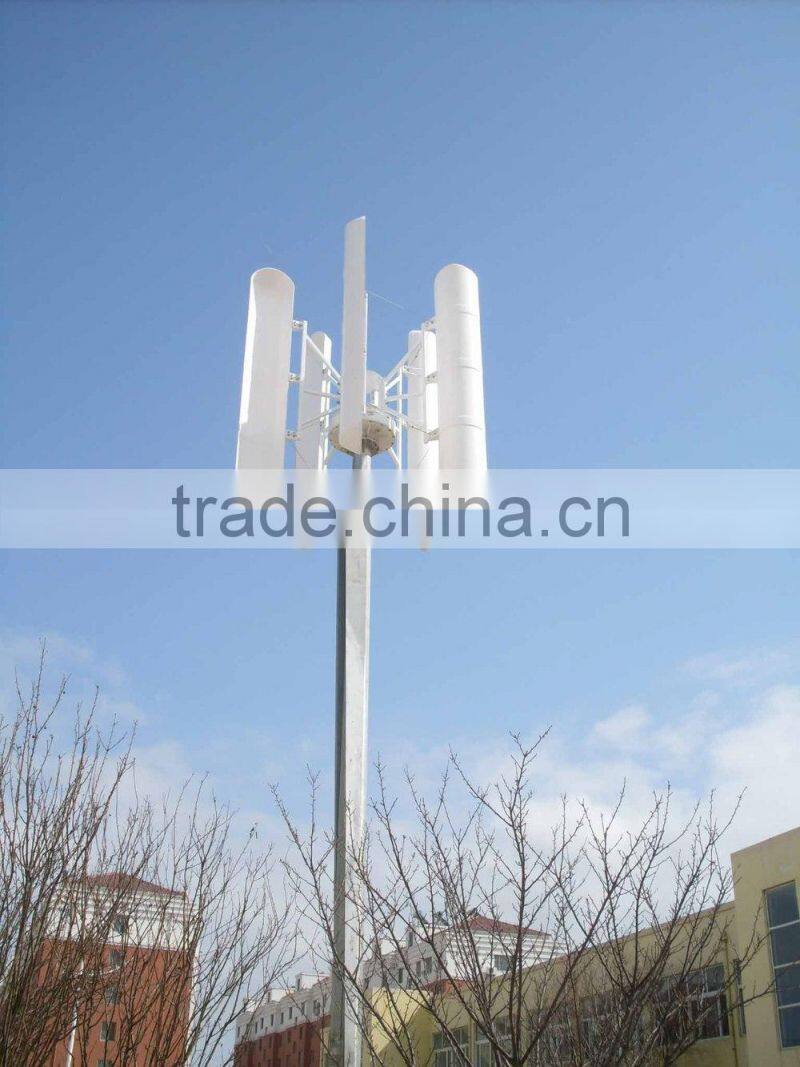

2KW small residential vertical windmill generator VAWT wind turbine for home use

Name: 2KW small residential vertical windmill generator VAWT wind turbine for home use
Brand: JINFAN
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Product Details

Place of Origin:	Shandong, China	Brand Name:	JINFAN	Model Number:	JFVC-2KW
Type:	Wind Power Generator

2KW small residential vertical windmill generator VAWT wind turbine for home use

Parameter of 2KW vertical axis wind turbine generator:

Model	JFVC-2KW
diameter of wind wheel (m)	2.4
material of blades	Fiberglass-Reinforced Plastics
blades number	5
blades length(mm)	2160
blades width(mm)	450
RPM(r/min)	50
rated wind speed(m/s)	14
start up wind speed(m/s)	2.5
working wind speed(m/s)	3-25
survival wind speed(m/s)	40
generator style	3-phase AC PMG
protection grade of generator	IP54
material of generator case	cast iron / aluminium
rated power(w)	2000
the max. power(w)	2500
rated voltage (VDC)	48/96/120
the height of tower(m)	8
guy cable tower type(mm)	114*6
controller and inverter	advanced wind & solar hybrid controller and pure sine wave inverter / on grid
battery reference	12v150ah 4pcs/12V100ah 8pcs

Off grid system:

On grid system:

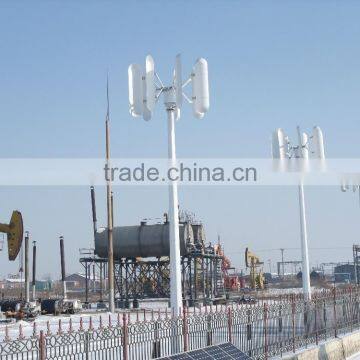

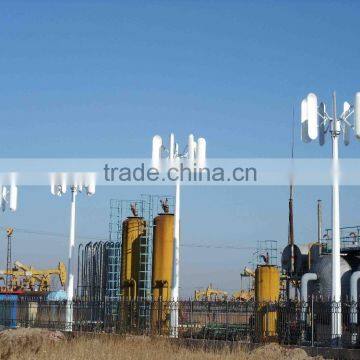

Vertical axis wind tubrine system project:

About us:

Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind turbine manufacturer.

Our hot -sale products have following four series:

1.Vertical axis wind generator:300W,500W,1KW,2KW,3KW,5KW

2.Vertical low RPM PMG:

300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,5KW100RPM,

10KW50RPM,10KW100RPM,15KW125RPM.

3.Horizontal axis wind generator:1KW,2KW,3KW,5KW,10KW,50KW

4.Wind and solar hybrid (street lamp) system
