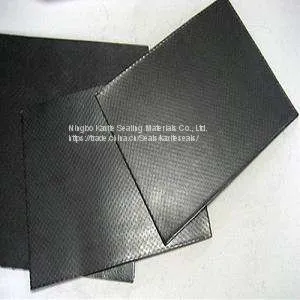

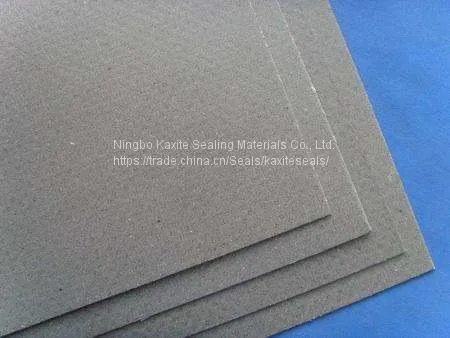

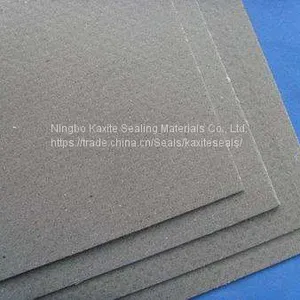

Graphite Sheet reinforced with Tanged Metal
Description: Reinforced expanded graphite sheet is compressed of expanded graphite sheet and various steel sheets such us
tanged, flat or mesh. Reinforced expanded graphite sheet has character of thermally stability, high strength and no cold flow etc.
Reinforced expanded graphite sheet is an ideal material of all kinds of reinforced graphite gaskets, engine heat gaskets etc.There
are many kinds of reinforced expanded graphite sheet.Such as reinforced expanded graphite sheet with ss304/304L insert,reinforced
expanded graphite sheet with ss316/316L insert,Reinforced expanded graphite sheet with tinplate insert,ect.

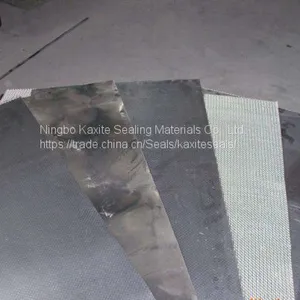

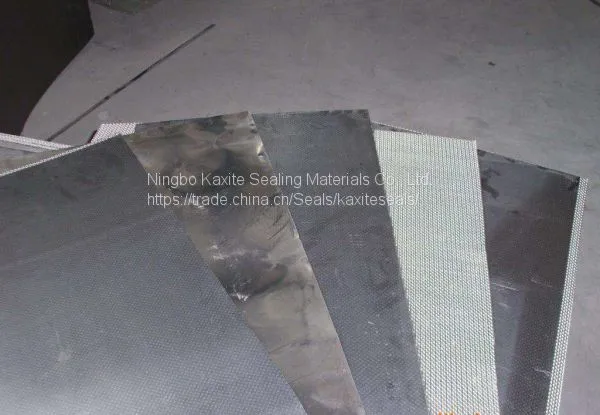

Different Types of Graphite gasket sheets included：
1. Graphite sheet with tanged 0.1mm SS316 inserted
2. Graphite sheet with tanged 0.1mm SS304 inserted 3. Graphite sheet with tanged 0.2-0.25mm carbon steel inserted 4. Graphite sheet with flat 0.05mm SS316 inserted 5. Graphite sheet with metal mesh inserted
Main Specification
Reinforced inserted material |
Construction |
Stability under compressive stress (N/mm2) |
Temperature |
|
In Oxidizing media |
In Non Oxidizing media |
|||
Tanged carbon steel sheet (Thickness 0.2- 0.25) |
|
>=48 |
-10 -450 |
-10 -550 |
AISI 304, 316 Tanged (Thickness 0.1- 0.127) |
|
>=48 |
-240 -450 |
-200-600 |
AISI 304, 316 falt sheet sheet (Thickness 0.05- 0.7) |
|
>=45 |
-240 -450 |
-200-600 |
AISI 304, 316 Mesh |
|
>=40 |
-240 -450 |
-200-600 |
Reinforced inserted materials |
Construction |
ASTMF36A-66 Compressibility |
ASTMF36A-66 Recovery |
Sealability(1.5mm)ml/hr |
|
N2 |
Buming oil |
||||
Tanged carbon steel sheet (Thickness 0.2- 0.25) |
|
30 - 35 |
15 -20 |
30 |
|
AISI 304, 316 Tanged (Thickness 0.1- 0.127) |
|
30 - 40 |
15 -30 |
60 |
|
AISI 304, 316 falt sheet sheet (Thickness 0.05- 0.7) |
|
40 - 50 |
10 -15 |
35 |
|
AISI 304, 316 Mesh |
|
30 - 35 |
15 -20 |
7000 |
|
