300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine

Zhangjiagang Jiazhou Machinery Co., Ltd.
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-1
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-2
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-3
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-4
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-5
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine thumbnail-6
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-1
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-2
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-3
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-4
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-5
300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine photo-6
US$ 12,000 - 25,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port for 5 Gallon Washing Filling Capping Machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Barrel
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage Customized
Power 3.22KW
Place of Origin Jiangsu, China
Brand Name JIAZHOU
Model Number QGF-300
Dimension(L*W*H) 3550X800X1800MM
Weight 2800KG
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

  QGF-300 5 gallon production line/barreled drinking water filling machine

300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine

Product description300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine

1. The 5 Gallon Filling Machineis composed of barrel washer,barrel filling machine and barrel sealer into one unit.

2. Especially for filling drinking water of 3 and 5 gallons. It is an ideafilling line to produce mineral water, distilled water and purified water.
3. Only two operators are needed for a line, which anna com iswholly automatic barreled
4. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection,full-auto barrel outside brusher, full-auto barrel loading machine, steamshrinking film machine and coding system can be choose depends on customer's need.

Product display300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine







300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine

300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine

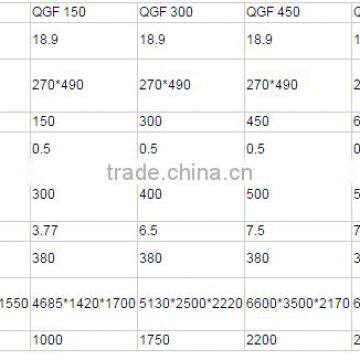

Product Parameters300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine



Model

QGF-100

QGF-240

QGF-300

QGF-450

QGF-600

QGF-900

QGF-1200

Filling heads

1

2

2

3

4

6

12

Volume(Gallon)

3&5

3&5

3&5

3&5

3&5

3&5

3&5

Barrel size(mm)

270*490

270*490

270*490

270*490

270*490

270*490

270*490

Capacity(b/h)

60-100

100-240

250-300

400-450

600-800

800-900

1000-1200

Gas pressure(Mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.6

0.6

0.6

Gas consumption(m³/min)

0.37

0.37

0.6

0.8

1

1.5

1.8

Motor power(kw)

1.38

1.75

3.8

3.8

7.5

9.75

13.5

Related Voltage(V)

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

Weight(kg)

680

800

1500

2100

3000

3500

4500



300BPH 19L Bottle 5 Gallon Washing Filling Capping Machine
