Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine

Zhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-1
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-2
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-3
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-4
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-5
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine thumbnail-6
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-1
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-2
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-3
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-4
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-5
Automatic 5 Gallon 20 Liter Keg Bottle Water Filling Machine photo-6
US$ 8,000 - 50,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage
Packaging Type:
Barrel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port for 20 liter bottle filling machine
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage
Packaging Type Barrel
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V50HZ(according to your country)
Power 3.8kw
Place of Origin Jiangsu, China
Brand Name Jiazhou
Model Number QGF300
Dimension(L*W*H) 2800x1100x1600mm
Weight 1500KG
Certification CE,ISO9001,BV,TUV
After-sales Service Provided Engineers available to service machinery overseas

QGF-300 FULL  AUTOMATIC  BARREL PRODUCTION LINE

Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionAutomatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

1. The 5 Gallon Filling Machineis composed of barrel washer,barrel filling machine and barrel sealer into one unit.

2. Especially for filling drinking water of 3 and 5 gallons. It is an ideafilling line to produce mineral water, distilled water and purified water.

3.The whole line is made of superior stainless steel, anticorrosive anna com and easy toclean.
4. Only two operators are needed for a line, which iswholly automatic barreled
5. Full-auto or semi-auto barrel de-capper, full-auto leakage inspection,full-auto barrel outside brusher, full-auto barrel loading machine, steamshrinking film machine and coding system can be choose depends on customer's need.

Product displayAutomatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

1.Automatic decapper:

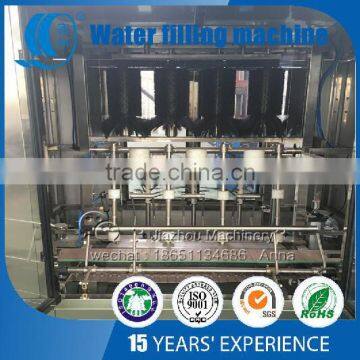

2.Internal and external brushing 2 in 1 :

Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

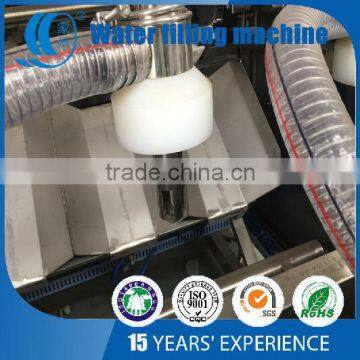

3.washing filling and capping 3 in 1:

Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

4.Related complete line products:

Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

Product ParametersAutomatic 5 Gallon 20 Liter keg Bottle Water Filling Machine

Model

QGF-100

QGF-240

QGF-300

 QGF-450

QGF-600

QGF-900

QGF-1200

Filling heads

1

2

2

3

4

6

12

Volume(Gallon)

3&5

3&5

3&5

3&5

3&5

3&5

3&5

Barrel size(mm)

270*490

270*490

270*490

270*490

270*490

270*490

270*490

Capacity(b/h)

60-100

100-240

250-300

400-450

600-800

800-900

1000-1200

Gas pressure(Mpa)

0.4-0.6

0.4-0.6

0.4-0.6

0.4-0.6

0.6

0.6

0.6

Gas consumption(m³/min)

0.37

0.37

0.6

0.8

1

1.5

1.8

Motor power(kw)

1.38

1.75

3.8

3.8

7.5

9.75

13.5

Related Voltage(V)

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

380V/HZ

Weight(kg)

680

800

1500

2100

3000

3500

4500





C/ompany informationZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
O/ur advantageZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
O/ur certificateZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
N/etwork MarketingZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
P/ackaging & shippingZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
C/ontact usZhangjiagang Jiazhou Machinery Co., Ltd.
Automatic 5 Gallon 20 Liter keg Bottle Water Filling Machine
