Specifications
GI sheet/roof tile/corrugated steel sheet1.Thickness: 0.14mm-1.0mm
2.ISO certificate
3.welcome to check our factory

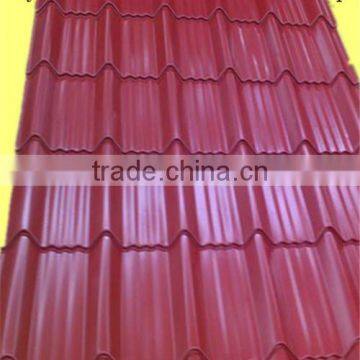

onduline roof/monier tile/onduline sun roof for house
Introduce
Corrugated sheets are made from Galvanized steel coils, Galvalume Steel coils, Galvalume Pre-painted sheet and aluminum sheet, pre painted hot dip galvanized steel coils, roll formed by roll forming machines, the thickness and color can be different, these panels are featured with easy installation, high strength and low in lost. They are widely use as the wall or roof of factory, warehouse, garage, exhibition center, cinema etc.
We have differents models also with color or without color:
YX25-207-828;YX25-210-840;YX27-190-750;YX27-190-950;YX25-210-840;YX25-210-840;YX25-210-1050;YX10-130-910;YX15-225-900;YX35-125-750;YX40-320-960;YX38-320-980; Corrugated steel sheet 665mm; Corrugated steel sheet 800 mm; Corrugated steel sheet 890 mm;
Wave tile
Thickness: 0.15mm-1.2mm
Width: 914/830mm;900mm/800mm;1000mm/900mm;1000mm/914mm;700mm/665mm
Basic zinc/Alu-Zinc Coating:Z60-Z180; AZ50-AZ275
Wave:9 waves; 11 waves; 12waves
Paint material: PE/PVDF
Color:any color with RAL color
YX 25-207-828
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave | Step Distance |
| 0.15mm-1.2mm | 828mm | 960mm | 25mm | 207mm | 4 waves | 200-300mm |
YX 25-210-840
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave | Step Distance |
| 0.15mm-1.2mm | 840mm | 910mm | 25mm | 210mm | 4 waves | 200-300mm |
YX 27-190-750 / 950
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave | Step Distance |
| 0.15mm-1.2mm | 750mm/950mm | 900mm/1090mm | 27mm | 190mm | 4/5 waves | 200-300mm |
YX 25-210-840
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave |
| 0.15mm-1.2mm | 840 mm | 910mm | 25mm | 210mm | 4 waves |
YX 25-210-1050
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave |
| 0.15mm-1.2mm | 1050mm | 1100mm | 25mm | 210mm | 5 waves |
YX 10-130-910
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave |
| 0.15mm-1.2mm | 910 mm | 955 mm | 10 mm | 130 mm | 7 waves |
YX15-225-900
| Thickness | Effective Width | Total Width | Wave Height | Wave Distance | Wave |
| 0.15mm-1.2mm | 900 mm | mm | 15mm | 225 mm | 3 waves |
Advantage
1. Light weight
2. Elegant and long-life : Manifold disquisition and oversea used approving more than 40 years; Through especial coated dispose, the color coated steel panel's guaranty is 10-15 years, and the panel's life express 35 years by painting the antisepsis material after each 10 years
3. Pressing steel panel with the clear line, and many colors for choice, suitable for any different building style materials , achieving satisfying effects
4. Pressing steel panel can be freely incised, it can satisfy the especially designing demand
Usage
It is hot rolled into the required profiles from preprinted galvanized steel sheets , which is used as roofing panel in all kinds of buildings, such as industrial and civil buildings, warehouse, particular building, inner and outer decorative wall. It can be used in ceiling tiles, steel structure workshop, sandwich panel workshop, transportation, outside decoration of various buildings, home appliances like refrigerator, air conditioner, electric cookware, etc.
Quality:
1. Import processing equipment, modernized production line
2. Reasonable and strict processing flow.
3. Strict quality inspection five inspection procedures
Corrugated plated type machine
Packing
