Home > Products > 7 sandwich panel > Fireproof wall panels wholesale durable resin eps sandwich panel
Fireproof wall panels wholesale durable resin eps sandwich panel
- 10000 Square Meter / Square Meters per Month
- TIANJIN XINGANG
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | wzh | Model Number: | WZH-SD-2015-960/1150 |
| Panel Material: | Metal | Type: | EPS Sandwich Panels |
Product Description
Fireproof wall panels wholesale durable resin eps sandwich panel
Specification
1.Name:EPS Sandwich Panel for roof&wall
2.Other Types:Rock wool/PU/Fiberglass
3.Brand:WZH EPS sandwich panel
4.Surface:Color Steel sheet
5.EPS:Light weight,hot&sound insulation,waterproof
Polystyrene sandwich panel (EPS Sandwich Panel) is a new type of construction panel which made of outer layer both sides of prepainted steel sheet and inner layer of polystyrene. EPS sandwich panel is composite two layers prepainted steel sheets and (EPS) polystyrene hard foams.It is usually used as roof and wall and cold room materials.
Models of EPS sandwich panel
EPS sandwich Roof panel: WZH-SD-2015-960
EPS sandwich Wall panel: WZH-SD-2015-950 WZH-SD-2015-1000/1150
1.EPS sandwich wall panel
-Wall panels
50mm-200mm EPS sandwich wall panel
Effevctive Width-950mm,1000mm,1150mm for wall
Length-Max 11800mm
2.EPS prefabricated roof sandwich panels
-Prefabricated Roof panels
-960mm for roof
75mm-200mm EPS sandwich roof panel
Rib height-8mm for wall-40mm for roof
Wave span-30mm for wall-320mm for roof
Wave no.-20 for wall-3 for roof
Technical Parameters
Steel Thickness | 0.2~1.2 mm |
Panel thickness | 50/75/100/125/150 mm |
Effective width | (1) 960mm---for roof (2) 950/1150mm---for wall |
Length | 1200mm(5.8 m. MAX. for 20'GP and 11.8m.MAX.for 40'HQ or according to the buys’ request) |
Materials | Inner is Polystyrene foam,two sides are Color steel sheets |
Structure | three layers: (1)upper layer is steel sheet, (2)the inner layer is Polystyrene foam, (3)the bottom layer is also steel sheet. |
EPS density | 8-12kg/m³,etc |
color | red,tephrosious,blue,white. or according to RAL color |
parts | Steel line for easy connect one by one Film covering in order to protect the steel of panels |
lifetime | 15~20 years |
Character | Light in weight,heat insulation,waterproof,saving energy |
Application | various roofs and walls referring to the large size factory building,storages, exhibition halls,gymnasiums,etc |
Packing | EPS Sandwich panels Packed by shipping Container or according to your demands |
Connection ways of EPS sandwich panel:
1.Joint hidden roof panel;
2.Z clock;over lap roof panel; All the screw and accessories are available
3.tongue and groove wall panel;Self-insert wall panel connection
Advantages:
1.Light in weight: 8-20kg/m3, easy to install(donnot need crane),save more construction period and low the cost.
2.Excellent Sound Insulation,heat insulation,waterproof and damp resistant with it's good appearance.
3.Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4.Panel length is according to the buyer's request,and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly

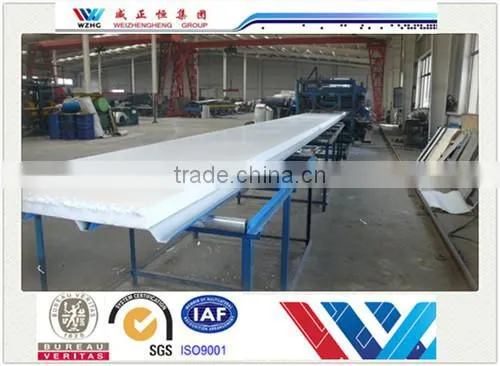

The machine of producing EPS sandwich panel

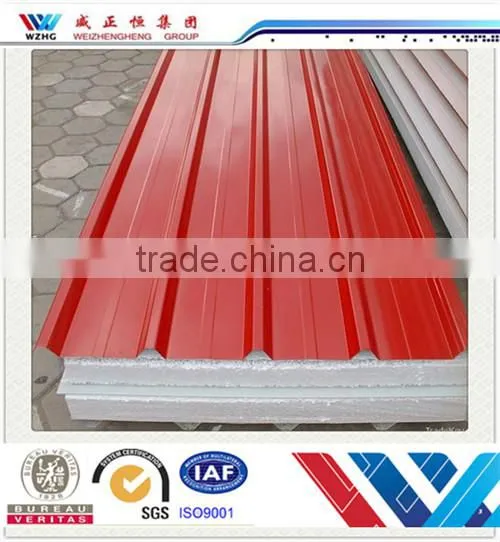

The surface of steel sheet on our EPS sandwich panel

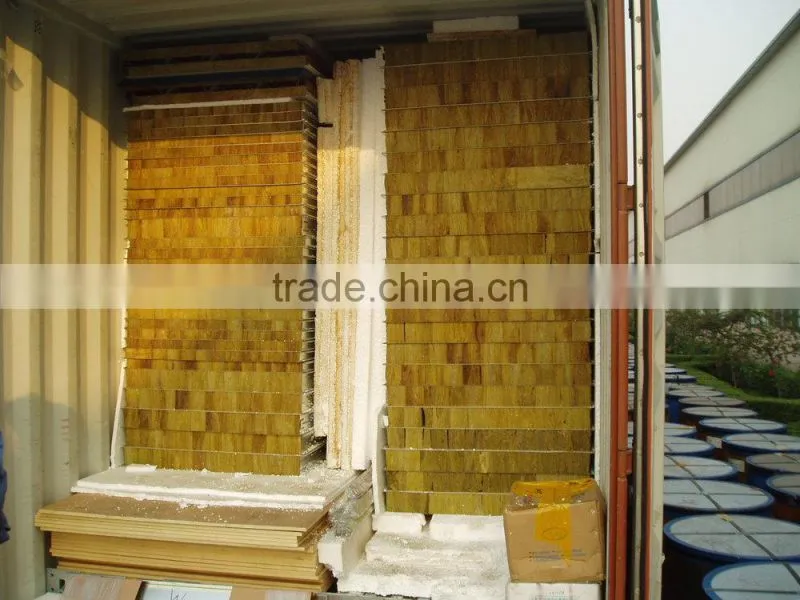

Packing of rockwool sandwich panels

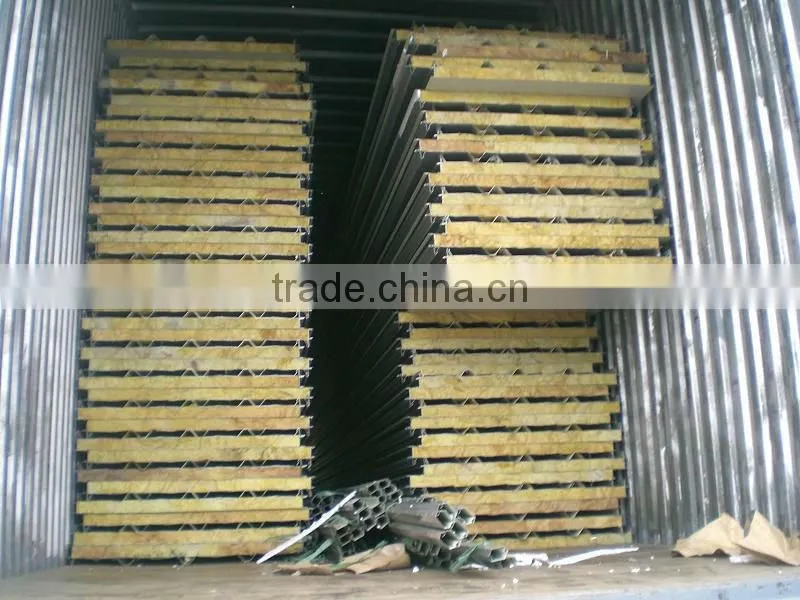

PU sandwich panels in the 20' container and shipped
EPS sandwich panel with window and door for prefabricated container house
Well packed before shipping
Application of eps sandwich panel
The Eps sandwich panels can be widely used in gymnasium, warehouse, hospital, supermarket, shelter, commercial and industrial facilities, Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
WZH GROUP
We are a group company, which has the follow filiales
Weizhengheng Group covers an area of over 48,000 sq.m., with more than 1,000 employees from 9 subsidiary companies together with offices. Each company enjoys its own feature.
Shijiazhuang Weizhengheng Light Steel Color Plate Co., Ltd, professional in export trade business, has more than six years of experience in this field. Heilongjiang Weizhengheng Steel Structure Engineering Co., Ltd, located in Harbin, benefits from freight economy when exported to Russia. Beijing Weizhengheng Metal Structure Engineering Co., located in the capital city of China, may receive clients from the abroad while saving their time and energy. Other branch companies are Shenyang Tianying Light Steel Color Plate Co., Ltd, Hulun Buir Weizhengheng Light Steel Color Plate Co., Ltd,Ulanhot Weizhengheng Light Steel Color Plate Co., Ltd,Shandong Office, Manzhouli Office and Uganda Office.
We are the china supplier of the follow metal building materials :
Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet,Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel,Glass fiber mat.
