Home > Products > 7 sandwich panel > best sell cold room curved roof eps sandwich panel
best sell cold room curved roof eps sandwich panel
- 10000 Square Meter / Square Meters per Month
- TIANJIN XINGANG
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Hebei, China | Brand Name: | wzh | Model Number: | WZH-SD-2015-960/1150 |
Panel Material: | Metal | Type: | EPS Sandwich Panels |
Product Description

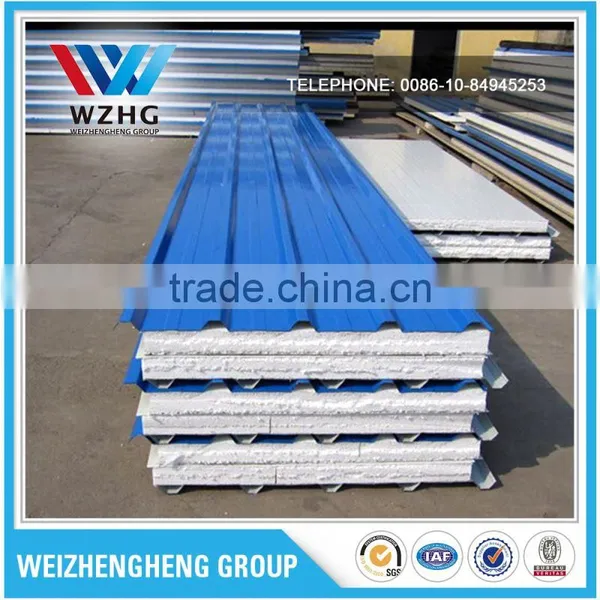

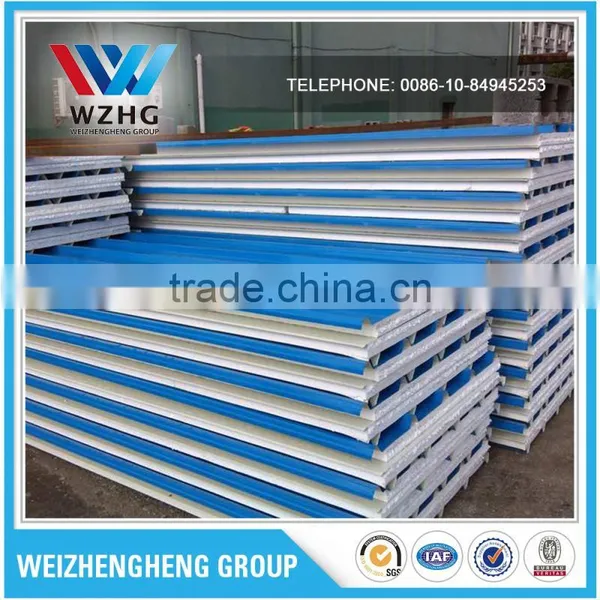

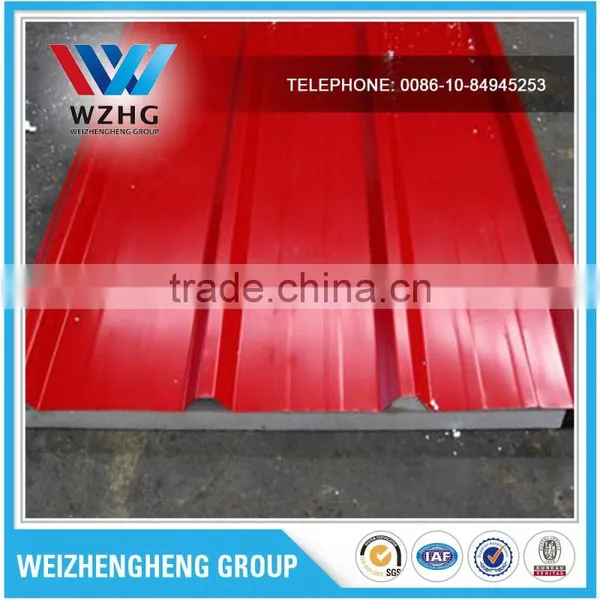

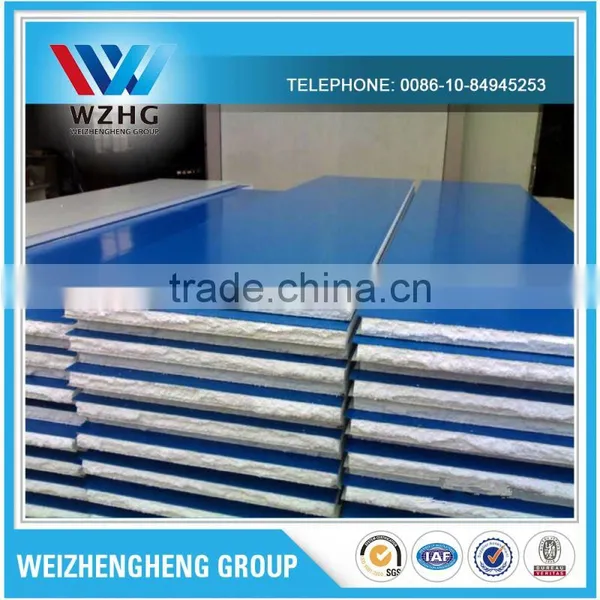

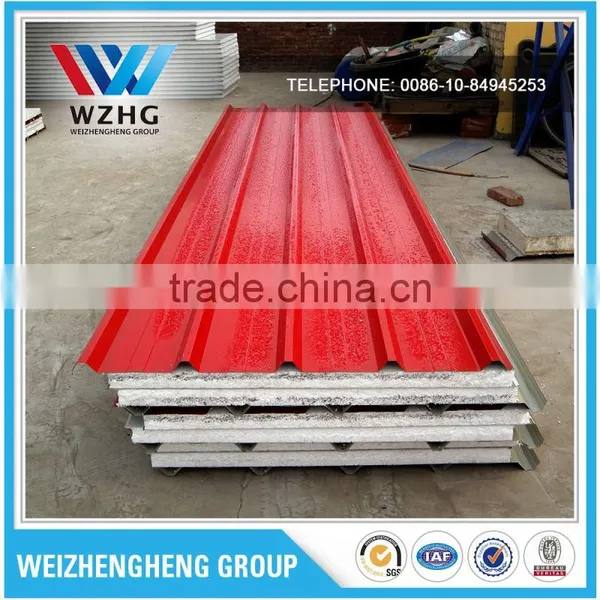

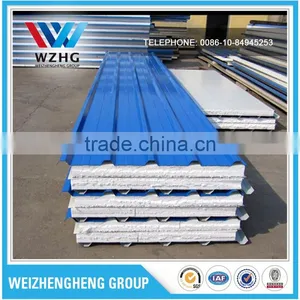

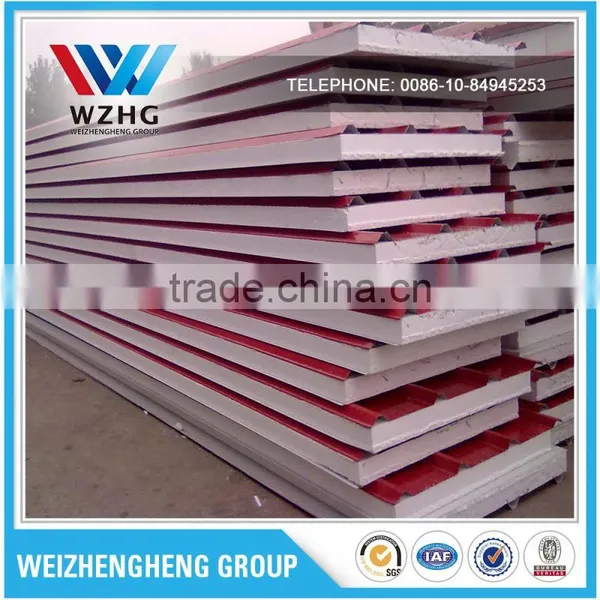

best sell cold room curved roof eps sandwich panel
Polystyrene sandwich panel (EPS Sandwich Panel) is a new type of construction panel which made of outer layer both sides of prepainted steel sheet and inner layer of polystyrene. EPS sandwich panel is composite two layers prepainted steel sheets and (EPS) polystyrene hard foams.It is usually used as roof and wall and cold room materials.
EPS sandwich Roof panel: WZH-SD-2015-960
EPS sandwich Wall panel: WZH-SD-2015-950 WZH-SD-2015-1000/1150
Steel Thickness | 0.2~1.2 mm |
Panel thickness | 50/75/100/125/150 mm |
Effective width | (1) 960mm---for roof (2) 950/1150mm---for wall |
Length | 1200mm(5.8 m. MAX. for 20'GP and 11.8m.MAX.for 40'HQ or according to the buys’ request) |
Materials | Inner is Polystyrene foam,two sides are Color steel sheets |
Structure | three layers: (1)upper layer is steel sheet, (2)the inner layer is Polystyrene foam, (3)the bottom layer is also steel sheet. |
EPS density | 8-12kg/m³,etc |
color | red,tephrosious,blue,white. or according to RAL color |
parts | Steel line for easy connect one by one Film covering in order to protect the steel of panels |
lifetime | 15~20 years |
Character | Light in weight,heat insulation,waterproof,saving energy |
Application | various roofs and walls referring to the large size factory building,storages, exhibition halls,gymnasiums,etc |
Packing | EPS Sandwich panels Packed by shipping Container or according to your demands |
1.EPS sandwich wall panel
-Wall panels
50mm-200mm EPS sandwich wall panel
Effevctive Width-950mm,1000mm,1150mm for wall
Length-Max 11800mm
2.EPS prefabricated roof sandwich panels
-Prefabricated Roof panels
-960mm for roof
75mm-200mm EPS sandwich roof panel
Rib height-8mm for wall-40mm for roof
Wave span-30mm for wall-320mm for roof
Wave no.-20 for wall-3 for roof
1.Joint hidden roof panel;
2.Z clock;over lap roof panel; All the screw and accessories are available
3.tongue and groove wall panel;Self-insert wall panel connection
1.Light in weight: 8-20kg/m3, easy to install(donnot need crane),save more construction period and low the cost.
2.Excellent Sound Insulation,heat insulation,waterproof and damp resistant with it's good appearance.
3.Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4.Panel length is according to the buyer's request,and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly
The Eps sandwich panels can be widely used in gymnasium, warehouse, hospital, supermarket, shelter, commercial and industrial facilities, Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
