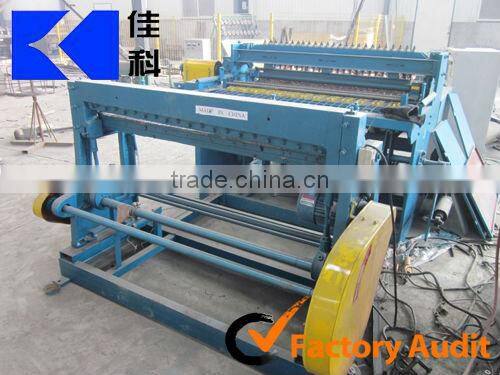

wire mesh platoon welding machine
Features:
This machine adopts electrical & electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point, without welded tracks. Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side. Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Usew of the product:
1.Enclosure mesh and buliding roof mesh;
2.Buliding (reinforcing construction mesh,floor warming mesh,seed-bed mesh and room mesh).
3.Breeding mesh(chicken cages,pigeon cages,rabbit cages,dog house and so on).
The Main Parameters
Wire Diameter | 1.6-2.5mm | Rated Voltage | 380V |
Welding Aperture | 50*50-200*200mm | Rated Electrical Power | 180KVA |
Width Of Mesh | 1200mm | Overall Dimension | 2.0*2.3*1.6M |
Number of Warp | 25 | Machine Weight | 3.2T |
Welding Speed | 60 (times/minute) |
