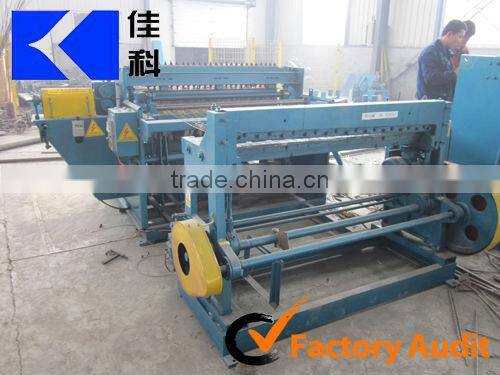

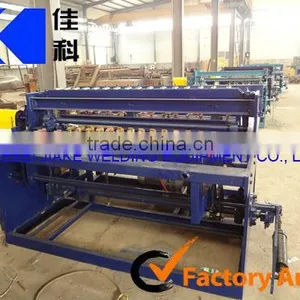

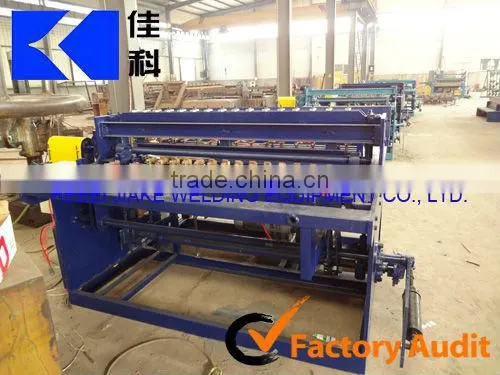

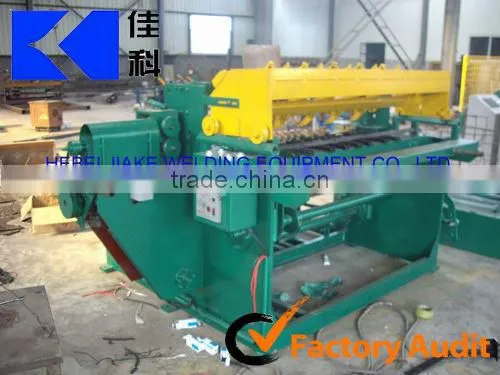

construction mesh welding machine for buildings
wire mesh welding machine
welding wire diameter:1.4-3.5mm
mesh opening:52*50/50*50mm
mesh welding speed: 60 times/min
construction mesh welding machine
reinforcing mesh welding machine
wire mesh machine characteristics
This machine adopts electric&electronic synchtonous control technique,both welding time and seperate-control welding is composed of digital and integrated electric circuit. This poration is accurate, it has stable function,firm welded point,without welded tracks. Not only welding speed is fast,but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular,it is unnecessary to slice the side. Drawing mesh system adopts elastic tension and opening positioning mesh,it is easy to regulate mesh hole,and mesh opening size is rather accurate,welding aperture could adjust randomly within range.
wire mesh machine parameters:
Model | Diameter | Width of mesh | Welding aperture mm | Welding head | Welding transformer | Welding speed | weight |
JK-1200A | Longitudinal1.4-2.5mm Weft 1.4-2.5mm | 1.2m | 50*50 52*50 | 16mm*25 16mm*24 | 56*2(diameter<2.2) 56*3(diameter<2.5) | 55 times/min | 2.5t |
JK-1200B | longitudinal2.0-3.5mm weft 2.5-3.5mm | 1.2m | 50*50 52*50 | 18mm*25 18mm*24 | 60*3(diameter<3.0) 85*3(diameter<3.5) | 45 times/min | 2.5t |
JK-1200C | longitudinal1.4-3.0mm weft 1.4-3.0mm | 1.2m | 50*50 52*50 | 18mm*25 18mm*24 | 60*3 | 55 times/min | 2.5t |
Packing & loading into container:
