Specifications
Automatic Straightening and Cutting Wire Machineneat cutting mouth, less error and good functions.

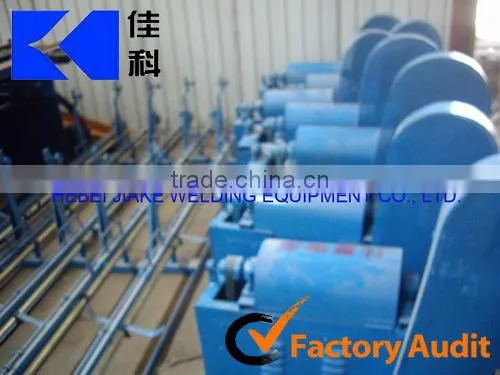

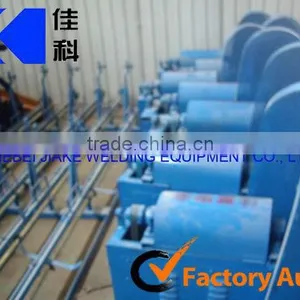

Automatic Straightening and Cutting Wire Machine
This kind of machine has four specifications, and the diameter is from 1.5 to 12mm
The length could adjust according to customers demand. It used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
This machine has many advantages, such as neat cutting mouth, less error and good
functions.
Main parameter:
Model |
SC1.5-35 |
SC2-5 |
SC3-6 |
SC4-8 |
SC4-12 |
SC5-12 |
Dia. (mm) |
1.5-3.5 |
2-5 |
3-6 |
4-8 |
4-12 |
5-12 |
Cut range(mm) |
30-2000 |
30-6000 |
100-6000 |
200-6000 |
200-6000 |
700-12000 |
Cut error (mm) |
±1 |
±1 |
±1 |
±1 |
±1 |
±10 |
Speed (m/min) |
25 |
30 |
35 |
35 |
30 |
45 |
Straight motor |
1.5kw |
1.5kw |
2.2KW |
4kw |
7.5kw |
11kw |
Cutting motor |
0.75kw |
0.75kw |
0.75kw |
3kw |
4kw |
4kw |
Dimension (m) |
1.7*0.4*0.8 |
1.2*0.4*0.9 |
1.5X0.6X0.9 |
7.3*0.6*1.2 |
8*0.8*1.3 |
1.9*0.6*1.4 |
Wight (kg) |
130 |
150 |
280 |
650 |
1000 |
900 |
