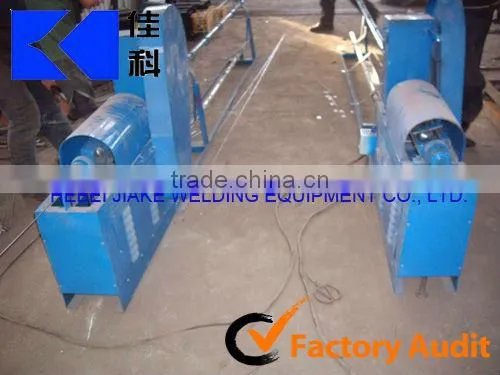

Wire Straightening & Cutting Machine(Factory audit)

Specifications

Wire Straightening & Cutting Machine(Factory audit)
straightening and cutting speed is fast

Wire Straightening & Cutting Machine(Factory audit)



It has own factory—Hebei Jiake Welding Equipment Co.,Ltd located in Industrial zone, Anping, Hebei, China. It's the leading manufacturer of wire mesh machine in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.

Product Description:

Description: Straightening cutting machine of broken wire machine, also called straightening machine, is one of the steel processing machinery. Used to control the straight and cut off 12 mm diameter of the reinforced, cut off length may be based on customer demand. Adjustable straight cut off the stainless steel wire, wire, cold galvanized wire, wire drawing, wire, steel wire, steel, plastic skin, such as steel wire package together, error small incision and good performance. This machine structure is rational, it is stable and reliable, simple operation, high automation, the operator can also management multiple machines, which has greatly enhanced the production efficiency, is hardware, cable for the manufacturers of special equipment.



Structure: this machine is made of straightening tube, and institutions, to cut off the line organization, steel frame, the frame fixed length and drive equipment etc.



The operation principle: motor through the belt drive growth, make the straightening tube high speed rotating, through to the upright steel tube is straightening, and straightening mode by clear rust rebar surface skin; By motor through the other pair slow conveyor belt transmission and gearbox, on the one hand, drive two transmission roller, traction reinforced forward movement, on the other hand crank wheel, make driving under the hammer head movement. When the book length, reinforced until hammer head hammering on the frame, will be reinforced and cut off by the reinforced fall into the feeder, due to spring back to Taiwan, the sword role in situ, complete a cycle.



Main parameter:



Model	SC2-5
Wire diameter	2-5mm
Cut length	30-6000mm
Cut error	±1mm
Speed	30m/min.
Straightening device motor	1.5kw
Cutting device motor	0.75kw
Dimension	1200*400*900mm
Weight	150kgs
