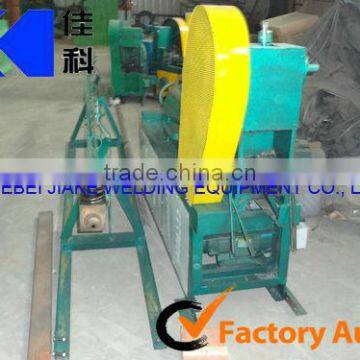

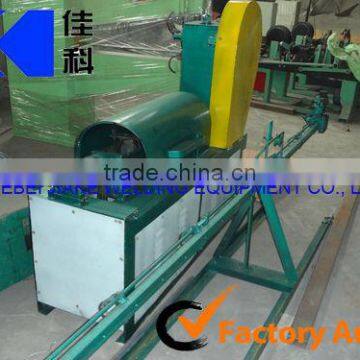

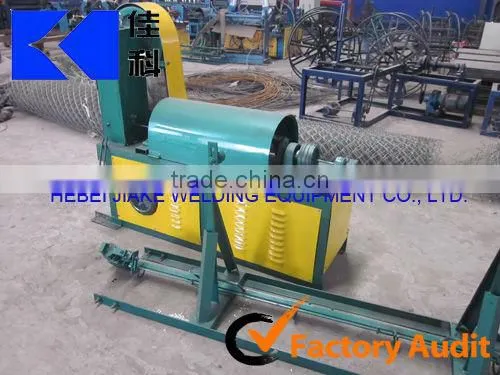

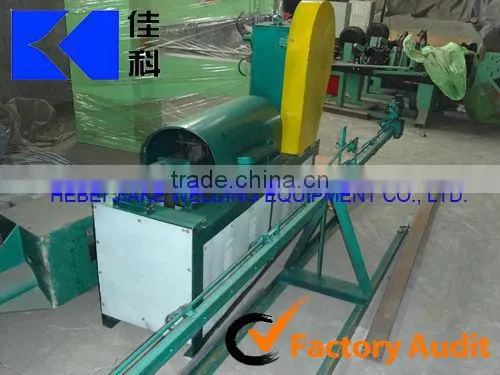

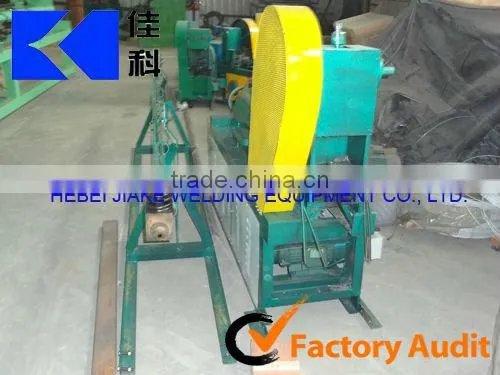

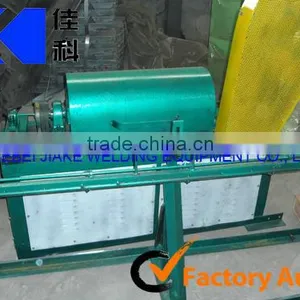

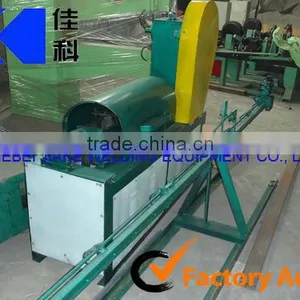

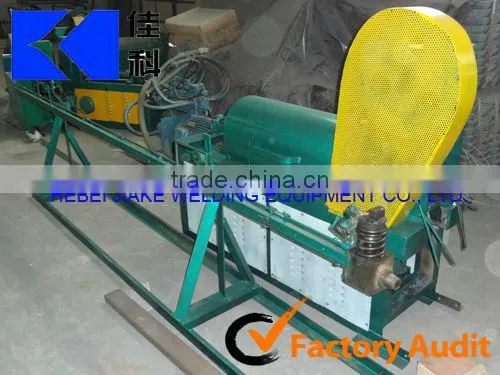

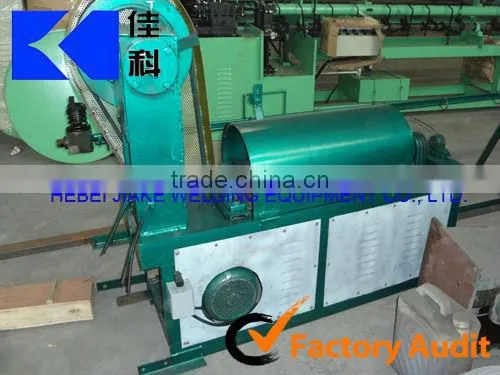

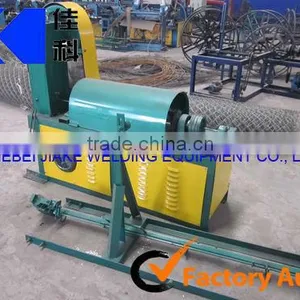

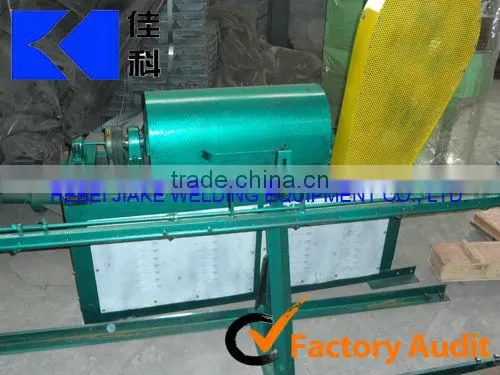

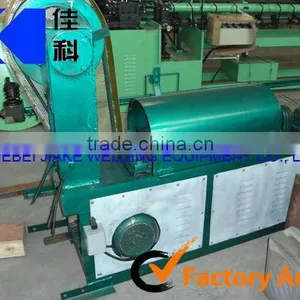

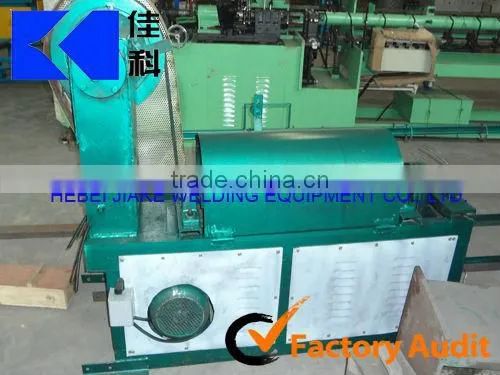

Automatic straightening and cutting wire machine SC4-8chinese supplier
Packing
Product
Wire straightening machine mainly consists oftray bar rack,straightening rack,tractor cutting device,base support,motor rotation facility,control box of electric appliance
parameter of the wire straightening machine
Model |
SC1.5-3.5 |
SC2-5 |
SC4-8 |
SC4-12 |
GT4-12 | GT6-14 |
wire diameter mm |
1.5-3.5 |
2-5 |
4-8 |
4-12 |
4-12 |
6-14 |
Cutting length mm |
30—2000 |
30-6000 |
200-6000 |
200-6000 |
500—12000 |
800-12000 |
Cut error mm |
±1 |
±1 |
±1 |
±1 |
±5 |
±5 |
Speed m/min |
25 |
30 |
35 |
30 |
45 |
55 |
Straight motor kw |
1.5 |
1.5 |
4 |
7.5 |
11 |
11 |
Cut motor kw |
0.75 |
0.75 |
3 |
4 |
4 |
4 |
Overall size m |
1.7X0.4X0.8 |
1.2X0.4X0.9 |
7.3X0.6X1.2 |
8X0.8X1.3 |
2.1X0.7X1.3 |
1.9X0.6X1.4 |
Weight kg |
130 |
150 |
650 |
1000 |
1000 |
12000 |
Hebei Jiake Welding Equipment Co.,Ltd
Address:Wire Mesh Insdustrial Zone, Anping County, Hebei Province, China
Sales: Jenny
QQ:3050875416
Skype: dapu_machine
Whatsapp:13739793519
If you need the machine, Just contact me anytime !
