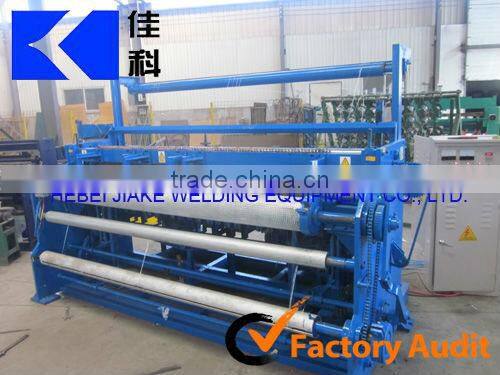

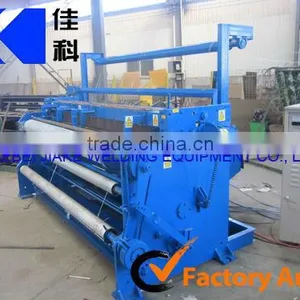

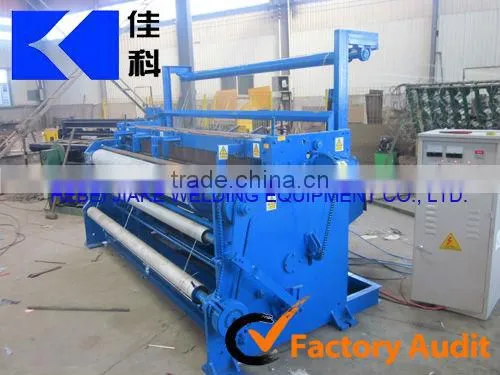

Best Price Hesco Barriers Mesh Welded Wire Mesh Machine

Name: Best Price Hesco Barriers Mesh Welded Wire Mesh Machine
Brand: JIAKE
SKU: 140420362
Availability: InStock

Hebei Jiake Welding Equipment Co., Ltd.

US$ 15,000 - 60,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

JIAKE

Model Number:

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name JIAKE

Model Number JK

Voltage 380V

Usage welded wire mesh

After-sales Service Provided Engineers available to service machinery overseas

Specifications

sh size:12.7mm-101.6mm
2.diameter of the wire:0.63mm-2.0mm
3.outside size:2.6m*1.7m*1.3m

Electric Welded Wire Mesh Machine

Electric Welded Wire Mesh Machine Characteristic: high stability, lower noise, save power consumption,

mechanical electrical integrative welding machine, straightening and send wire automatically,

suitable for weld wire mesh with big range diameter.

Electric Welded Wire Mesh Machine Main parameters:

Mesh (mm)	Width (mm)	Wire Diameter (mm)	Production Length per Roll (mm)	Welded Speed ( mesh/minute)	Energy Consumption	Overall Dimension(mm)
12.7-101.6 (1/2"-4")	914.4-1219.2 ( 12"-48")	Dia.0.63-Dia.2 ( BWG23-BWG14)	120 (400')	90-120	380V 50-60HZ 50KWAx4	2600x1700x1350

Mesh (mm)	Width (mm)	Wire Diameter (mm)	Production Length per Roll (mm)	Welded Speed ( mesh/minute)	Energy Consumption	Overall Dimension(mm)
25.4-152.4 (1"-6")	1219.2,1524,1828.8 (48", 60", 72")	Dia.1.07-Dia.2 ( BWG19-BWG14)	91.4m (300')	50-80	380V; 50-60HZ; 50KWAx6	3350x1800x1400

Mesh (mm)	Width (mm)	Wire Diameter (mm)	Production Length per Roll (mm)	Welded Speed ( mesh/minute)	Energy Consumption	Overall Dimension(mm)
6.35-12.7 (1/4"-1/2")	1219.2-1828.8 (48"-60")	Dia.0.74-Dia.1.07 ( BWG22-BWG19)	120m (400')	70-100	380V; 50-60HZ; 50KWAx6	3050x1900x1750

Mesh (mm)	Width (mm)	Wire Diameter (mm)	Production Length per Roll (mm)	Welded Speed ( mesh/minute)	Energy Consumption	Overall Dimension(mm)
6.35-12.7 (1/4"-1/2")	914.4-1219.2 (12"-48")	Dia.0.45-Dia.1.07 ( BWG25-BWG19)	120m (400')	90-120	380V; 50-60HZ; 50KWAx4	2350x1820x1700
