Specifications
Pulley continuous wire drawing machineFrom the inlet wire to outlet wire, the process can be finished in one time.

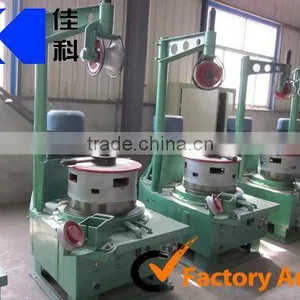

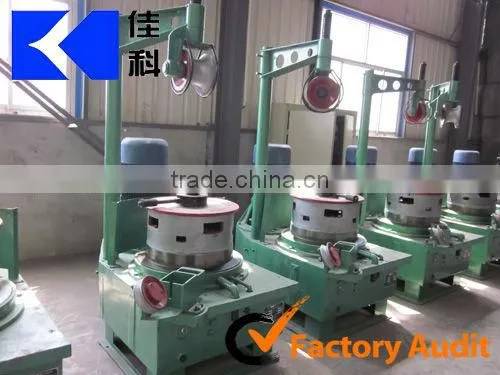

Pulley continuous wire drawing machine
Model 550 and 560 pulley continuous wire drawing machine can draw metal wire, iron wire and so on. It usually has 7 pots, if draw the wire from 6.5mm to 2.0mm and each pot with its own frequency inverter. For this machine. from the inlet wire to outlet wire, the process can be finished in one time, so the machine has the advantage of high production, efficiency convenience in operation.
The parameter:
Model |
Model 550 |
Model 560a |
Model 560b |
Diameter of canister |
550mm |
560mm |
560mm |
Max inlet wire diameter |
6.5mm |
6.5mm |
8.0mm |
Min outlet wire diameter |
2.0mm |
2.0mm |
2.0mm |
Power |
3 phase, 380V, 50HZ |
3 phase, 380V, 50HZ |
3 phase, 380V, 50HZ |
Each transducer motor |
18.5KW |
18.5KW |
22KW |
Each pot weight |
1.6T |
1.6T |
1.8T |
Remind:
If draw 8mm wire, it must use Model 560 pulley continuous wire drawing machineand the wire must be annealed.
