Home > Industrial Equipment & Components > Welding Equipment > Spot Welder > Steel Grating Spot Weld Machine
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Grating Welding Machine, High Quality and Best Price.US$ 20,000 - 30,000MOQ: 1 Set -
Grating Mesh Welding MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Metal Grating Lattice Weld MachineUS$ 200,000 - 300,000MOQ: 1 Set
-
Steel Grating Making Machine/grating Welding Machine/metal Grating MachineUS$ 10,000 - 30,000MOQ: 1 Set
-
Steel Grating Spot Weld MachineUS$ 20,000 - 30,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-1000
Rated Capacity
300KVA
Rated Duty Cycle
80%
Max. Welding Thickness
65mm
Dimensions
16000mm x 2500mm x 1500mm
Weight
4 TON
Usage
weld steel grating
After-sales Service Provided
Engineers available to service machinery overseas

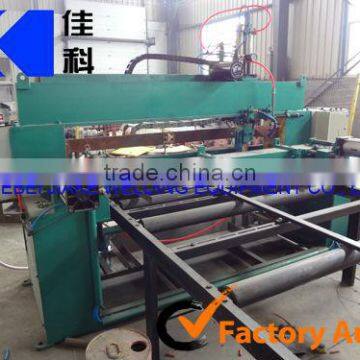

steel grating spot weld machine
This welding machine adopts technology of power electronic synchronous control, the welding time and separate-welding are combined by digital integrated circuits, the control precision are very accurate, operate smoothly and the welding is very firmly.
The transfer parts used imported pneumatic element, it has characteristic of pressure uniformity, few malfunction and long service life.
Main parameter:
Measurement | 16000mm x 2500mm x 1500mm |
Weight | 4000kg |
Rated voltage | 3 phase 380V 50Hz |
Rated Power | 300KVA |
Cross bar diameter | 5-8mm |
Bearing flat bar thickness | 3-5mm |
Bearing flat bar width | 20-65mm |
Space of cross bar | 50mm, 100mm |
Space of bearing flat bar | 30mm, 40mm |
Max. welding width | 1000mm |
