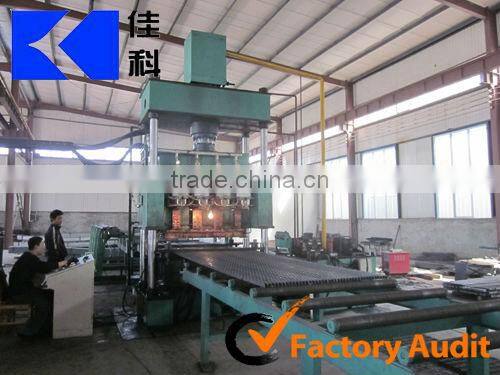

metal grating welding machine
Metal grating welding machine use for finish flat-rolled steel and round steel (is it entangle square steel to sprain ) horizontal to weld automatic production line of shaping alternately while being vertical, the products can reach hundreds of kinds of specifications , apply to the platforms of such trades as petroleum , chemical industry , electricity , quay , municipal administration , environmental protection , national defence ,etc. , hang and carry , enclose the bar , walk etc. extensively.
24 meters long, 3.8 meters wide production line this, divide into person , welder person , cut according to process worker of end head person , finished product deposit engineering location, worker of material loading,. Material loading adopt artificial material loading (flat-rolled steel ), horizontal pole (round steel ) hands over the material automatically , then weld automatically, walk into automatically, is it cut location , worker of material , cut end head automatically , artificial to operate with draw material car hand over the finished product to the depositing area of the finished product to reach, then one is put automatically , pile up the platform to drop automatically , is full of until piling up the platform, operate and introduce the car artificially and put out the finished product one.
Main technical data:
Input power | 380V 50Hz | |
Length of grating | 6000 mm | |
Width of grating | 1000 mm | |
Bearing flat bar | thickness | 2.5 - 7 mm |
width | 25 - 75 mm | |
Bearing flat bar space | 30 mm , 50 mm(customized) | |
Cross bar dia. | 4-8 mm | |
Cross bar space | from 38mm to 160mm adjustable | |
Max. pressure | 160 Ton | |
Welding transformer | 1000KVA | |
Welding frequency | 1000Hz—intermediate frequency | |
Power transformer needed | 630KVA. | |
Rated amount welding electric current | AC 200KA | |
Max amount welding electric current | AC 300KA | |
Welding speed | 6-9 times/minutes(weld 2 cross bar each time) | |
Overall dimension | 18000*3800*4800mm | |
Weight | 13000kg | |
