Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > Floor Grating Resistance Welding Machine
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Grating MachineUS$ 220,000 - 280,000MOQ: 1 Set -
Steel Grating Piezoresistive Welding MachineUS$ 200,000 - 500,000MOQ: 1 Set
-
Steel Grating Making MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Metal Grating Welding MachinerUS$ 200,000 - 300,000MOQ: 1 Set
-
Steel Grating Piezoresistive Welding MachineUS$ 200,000 - 500,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-sg-1000b
After-sales Service Provided
Engineers available to service machinery overseas

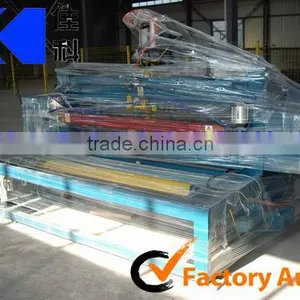

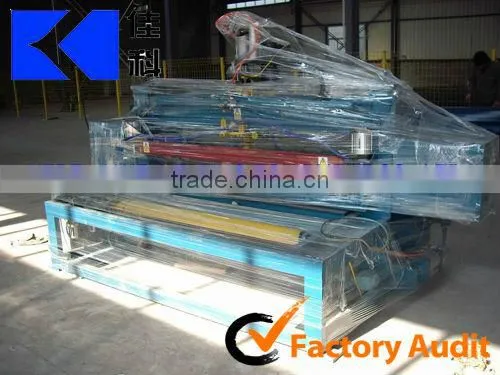

floor grating resistance welding machine
This welding machine adopts technology of power electronic synchronous control, the welding time and separate-welding are combined by digital integrated circuits, the control precision are very accurate, operate smoothly and the welding is very firmly.
The transfer parts used imported pneumatic element, it has characteristic of pressure uniformity, few malfunction and long service life.
Main parameter:
Measurement(L x W x H):16000mm x 2500mm x 1500mm
Weight:4T
Rated voltage:380V,50HZ.
Power:300KVA
Welding diameter:
Cross iron diameter :5-8mm, flat iron :3 x 20mm-5 x 65mm
Welding aperture:warp30mm or 40mm, weft 50mm or 100mm
Welding width:1000mm
