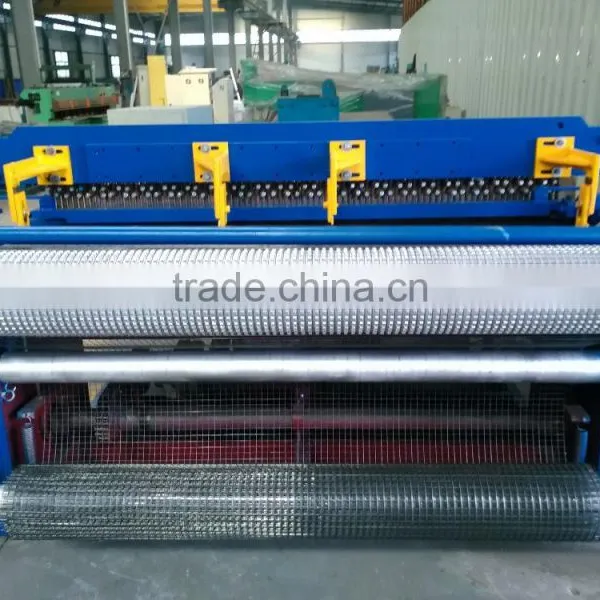

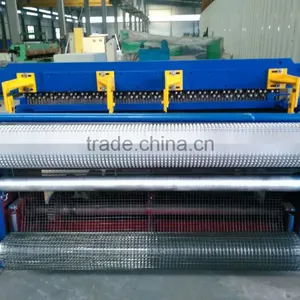

Best Price Automatic Welded Wire Mesh Machine China Manufacturer
Electric Welded Wire Mesh Machine Characteristic:
It has the boxstyle support machine frame, high stability, lower noise, save power consumption, mechanical-electrical integrative welding machine, straighten and send wire automatically, suitable for weld
wire mesh with big range diameter.
Electric Welded Wire Mesh Machine Main parameters:
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
12.7-101.6 (1/2"-4") |
914.4-1219.2 |
Dia.0.63-Dia.2 |
120 (400') |
90-120 |
380V |
2600x1700x1350 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
25.4-152.4 (1"-6") |
1219.2,1524,1828.8 |
Dia.1.07-Dia.2 |
91.4m (300') |
50-80 |
380V; |
3350x1800x1400 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") |
1219.2-1828.8 (48"-60") |
Dia.0.74-Dia.1.07 |
120m (400') |
70-100 |
380V; |
3050x1900x1750 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") |
914.4-1219.2 (12"-48") |
Dia.0.45-Dia.1.07 |
120m (400') |
90-120 |
380V; |
2350x1820x1700 |
Welded wire mesh is used in industry and agriculture building
• Transportation and mining for all such purposes as poultry houses
• Egg baskets,fishing, poultry
• Runway enclosures
• Draining rack
• Fruit drying screen
• Fence
1. Reinforcing Mesh Welding Machines
|
wire diameter: 5-12mm mesh width: max2.5m wire spacing: 100-300mm mesh length: max12m welding speed: 30-60 cross wires/min |
|
2. Fence Mesh Welding Machines
|
wire diameter:3-6mm mesh width:max 2.5m wire spacing:50-200mm welding speed: 45-75 cross wires/min |
|
|
3. Concrete Reinforcing Mesh Welding Machines
|
wire diameter:3-8mm mesh width: max2.5m wire spacing 100-300mm welding speed:45-75 cross wires/min |
|
|
4.Poultry Cage Mesh Welding Machines
|
wire diameter 1.8-3.5mm mesh width:1.2m wire spacing: 50-200mm welding speed:60-90cross wires/min |
|
|
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
