Specifications
mesh:1/8",1/4",3/8",1/2",1",4",6"we can customize the machine, plese contact me for more info.

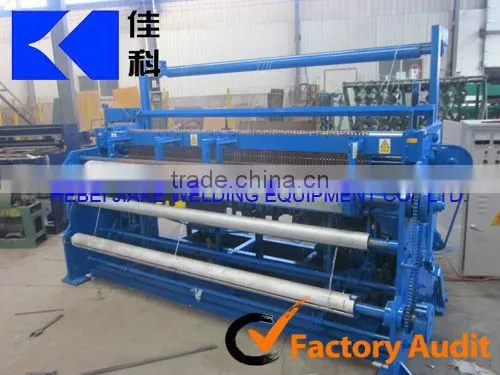

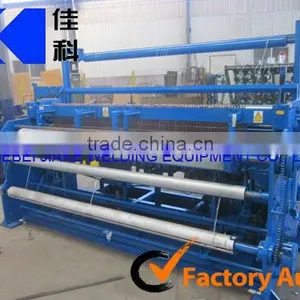

Electric Welded Wire Mesh Machine
Electric Welded Wire Mesh Machine Characteristic: It has the box-style support machine frame, high stability, lower noise, save power consumption, mechanical-electrical integrative welding machine, straighten and send wire automatically, suitable for weld wire mesh with big range diameter.
Electric Welded Wire Mesh Machine Main parameters:
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
12.7-101.6 (1/2"-4") |
914.4-1219.2 |
Dia.0.63-Dia.2 |
120 (400') |
90-120 |
380V |
2600x1700x1350 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
25.4-152.4 (1"-6") |
1219.2,1524,1828.8 |
Dia.1.07-Dia.2 |
91.4m (300') |
50-80 |
380V; |
3350x1800x1400 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") |
1219.2-1828.8 (48"-60") |
Dia.0.74-Dia.1.07 |
120m (400') |
70-100 |
380V; |
3050x1900x1750 |
Mesh (mm) |
Width (mm) |
Wire Diameter (mm) |
Production Length per Roll (mm) |
Welded Speed |
Energy Consumption |
Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") |
914.4-1219.2 (12"-48") |
Dia.0.45-Dia.1.07 |
120m (400') |
90-120 |
380V; |
2350x1820x1700 |
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, w
ire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine,
gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire
machine and so on, please do not hesitate to contact us.
