Specifications
electrical & electronic synchronous controlthe machine is tailor made, please feel free to contact Daisy,skype:qq1815361000

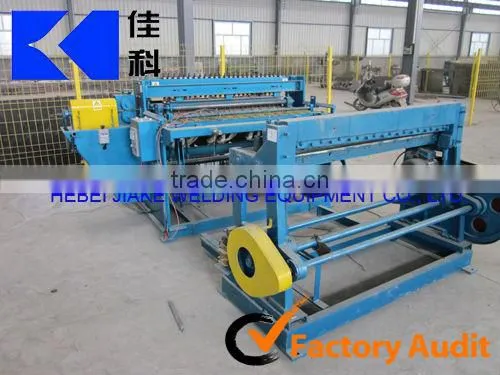

Wire Mesh Welding Machine(JK-120A)
wire mesh welding machine Function Characteristics:
This machine adopts electrical & electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit. This operation is accurate, it has stable function, firm welded point, without welded tracks.
Not only welding speed is fast, but also it is easy to learn and operate. The machine is equipped with precise equipment for weft cutting and positioning, so the length of wefts is identical and regular, it is unnecessary to slice the side. Drawing mesh system adopts elastic tension and opening positioning mesh, it is easy to regulate mesh hole, and mesh opening size is rather accurate, welding aperture could adjust randomly within range.
Use of the product of wire mesh welding machine:
- Enclosure mesh and building roof mesh;
- Building(reinforcing construction mesh, floor warming mesh, seed-bed mesh and room mesh).
Main parameters of wire mesh welding machine:
|
JK-120A-1 |
JK-120A-2 |
JK-120A-3 |
Input power |
380V 50Hz |
380V 50Hz |
380V 50Hz |
Max. width |
1200mm |
1200mm |
1000mm |
Line wire space |
50-200mm |
50-200mm |
100-200mm |
Cross wire space |
50-200mm |
50-200mm |
50-200mm |
Wire diameter |
1.4-2.5mm |
1.4-2.5mm |
1.4-2.0mm |
Rated capacity |
56kva*3 |
56kva*2 |
56kva*1 |
Welding point No. |
25 |
25 |
11 |
Motor power |
2.2KW |
2.2KW |
2.2KW |
Feed line wire |
Coil wire |
Coil wire |
Coil wire |
Feed cross wire |
Coil wire |
Coil wire |
Coil wire |
Cutting mesh |
Automatic & Manual |
Automatic & Manual |
Automatic & Manual |
Welding speed |
45 times/min |
45 times/min |
45 times/min |
Weight |
2500kg |
2000kg |
1700kg |
Dimension(L*W*H) |
2500*1800*1400mm |
2500*1800*1400mm |
2500*1800*1400mm |
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
Email:qq1815361000at
