Home > Products > Roll mesh welding machine > automatic electric welded wire mesh machine (anping factory)
automatic electric welded wire mesh machine (anping factory)
- 10 Set / Sets per Month
- XINGANG
Product Details
Place of Origin: | Hebei, China | Brand Name: | JIAKE | Model Number: | JIAKE |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

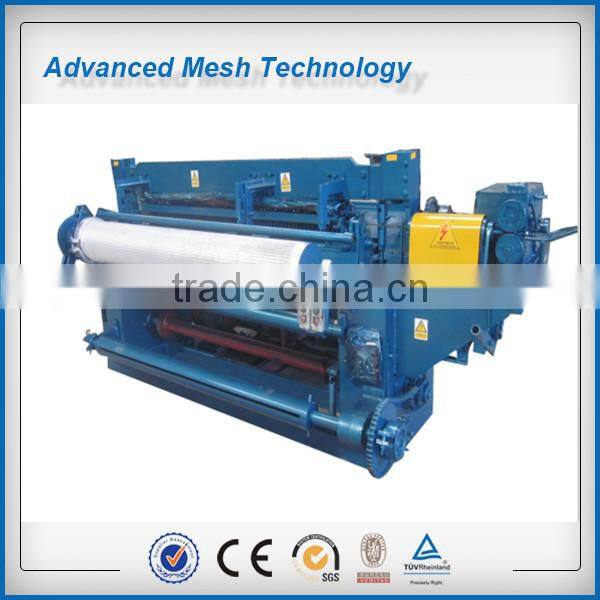

Electric Welded Wire Mesh Machine
Electric Welded Wire Mesh Machine Characteristic: It has the box-style support machine frame, high stability, lower noise, save power consumption, mechanical-electrical integrative welding machine, straighten and send wire automatically, suitable for weld wire mesh with big range diameter.
Electric Welded Wire Mesh Machine Main parameters:
Mesh (mm) | Width (mm) | Wire Diameter (mm) | Production Length per Roll (mm) | Welded Speed | Energy Consumption | Overall Dimension(mm) |
12.7-101.6 (1/2"-4") | 914.4-1219.2 | Dia.0.63-Dia.2 | 120 (400') | 90-120 | 380V | 2600x1700x1350 |
Mesh (mm) | Width (mm) | Wire Diameter (mm) | Production Length per Roll (mm) | Welded Speed | Energy Consumption | Overall Dimension(mm) |
25.4-152.4 (1"-6") | 1219.2,1524,1828.8 | Dia.1.07-Dia.2 | 91.4m (300') | 50-80 | 380V; | 3350x1800x1400 |
Mesh (mm) | Width (mm) | Wire Diameter (mm) | Production Length per Roll (mm) | Welded Speed | Energy Consumption | Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") | 1219.2-1828.8 (48"-60") | Dia.0.74-Dia.1.07 | 120m (400') | 70-100 | 380V; | 3050x1900x1750 |
Mesh (mm) | Width (mm) | Wire Diameter (mm) | Production Length per Roll (mm) | Welded Speed | Energy Consumption | Overall Dimension(mm) |
6.35-12.7 (1/4"-1/2") | 914.4-1219.2 (12"-48") | Dia.0.45-Dia.1.07 | 120m (400') | 90-120 | 380V; | 2350x1820x1700 |
1. Reinforcing Mesh Welding Machines
wire diameter: 5-12mm mesh width: max2.5m wire spacing: 100-300mm mesh length: max12m welding speed: 30-60 cross wires/min |
2. Fence Mesh Welding Machines
wire diameter:3-6mm mesh width:max 2.5m wire spacing:50-200mm welding speed: 45-75 cross wires/min |
3. Concrete Reinforcing Mesh Welding Machines
wire diameter:3-8mm mesh width: max2.5m wire spacing 100-300mm welding speed:45-75 cross wires/min |
4.Poultry Cage Mesh Welding Machines
wire diameter 1.8-3.5mm mesh width:1.2m wire spacing: 50-200mm welding speed:60-90cross wires/min |
5. Electric Welded Mesh Machines
wire diameter:0.45-0.85mm wire diameter:0.6-1.3mm wire diameter:0.8-1.6mm wire diameter:1.4-2.7mm mesh width: as required wire spacing: as required |
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
We can customize the machine, please tell us your needs.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
