High Speed Wire Mesh Welding Machine Factory

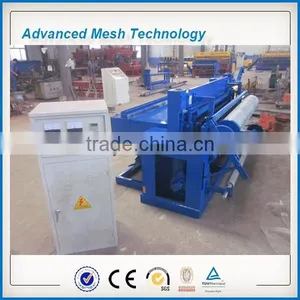

High Speed Wire Mesh Welding Machine Factory photo-1

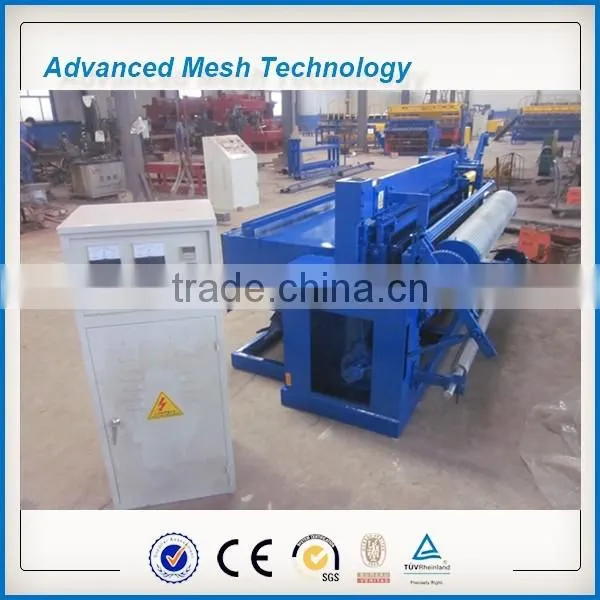

High Speed Wire Mesh Welding Machine Factory photo-2

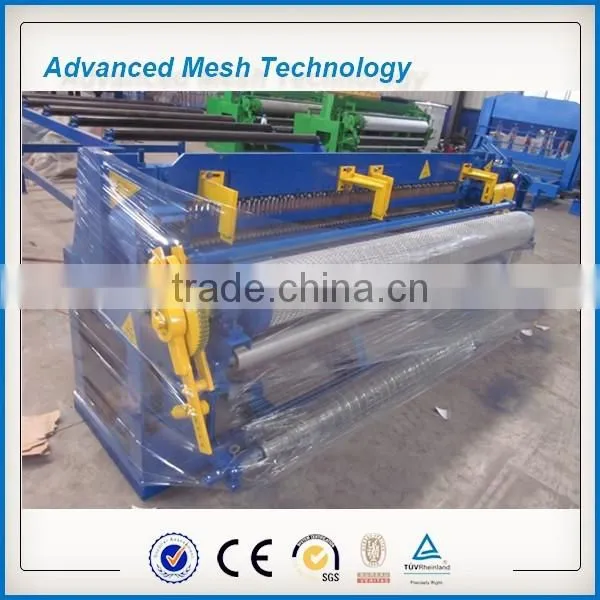

High Speed Wire Mesh Welding Machine Factory photo-3

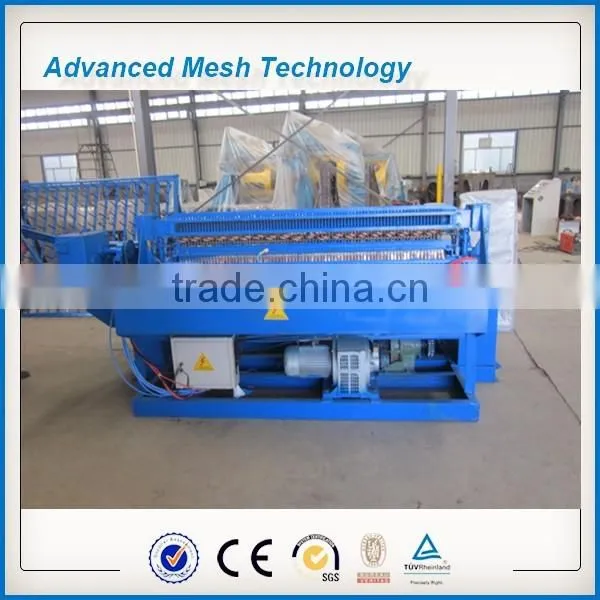

High Speed Wire Mesh Welding Machine Factory photo-4

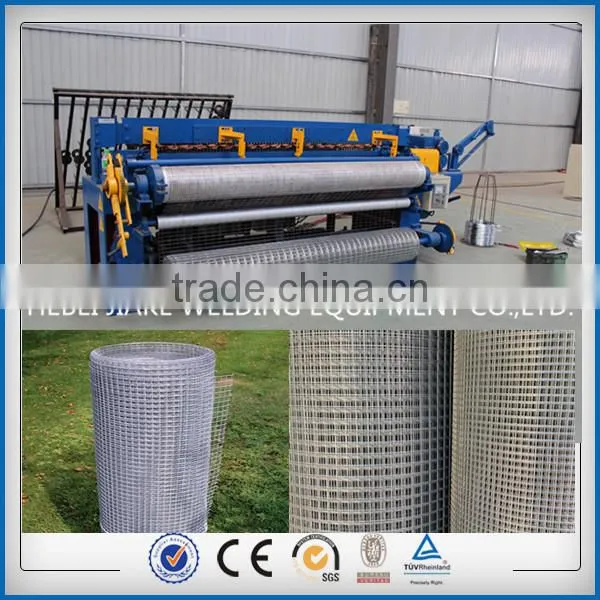

High Speed Wire Mesh Welding Machine Factory photo-5
High Speed Wire Mesh Welding Machine Factory photo-6
US$ 6,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JIAKE
Model Number:
DNW
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Brand Name JIAKE
Model Number DNW
After-sales Service Provided Engineers available to service machinery overseas
Mesh welding machine

Product description

The welded wire mesh machine Include:mesh welding machine , control cabinet, bobbin stand off /wire coils for line wire feeding , wire rolling machine, mesh repairing machine & mesh repairing table.

SPECIFICATIONS FOR MESH WELDING MACHINE

DNW-1
0.4-0.65mmWire diameter
Mesh width:1200mm
Mesh hole:1/4''-1/2''
75 rows/min
2.2kw motor
2.3*1.3*1.4M
50KVA*3 welding transformer
1.5T
220/380/415/440V

DNW-2
0.65-2.2mm Wire diameter
Mesh width:2500mm
Mesh hole:1/2''-4''
Max.180 rows/min
4kw motor
2.9*1.3*1.4M
60KVA*4/5/6/7
2800KG
220/380/415/440V

DNW-3
1-2.5mm Wire diameter
Mesh width:2500mm
Mesh hole:1''-4''
Max.160row/min
4kw motor
2.9*1.3*1.5M
60KVA*4/5/6/7
2800kg
220/380/415/440V

Main Features

1) Simple structure ,easy in installation and maintation.

2) Adopting sealed and water cooling transformer

3) Raw material can be low carbon wire , galvanized wire,stainless steel

4) Both line wire & cross wire feed from wire coils automatically

5) Both mesh ends edge cut automatically , customer can get 2 or 3 rolls mesh by add middle cut knife

Certifications
Detailed Images

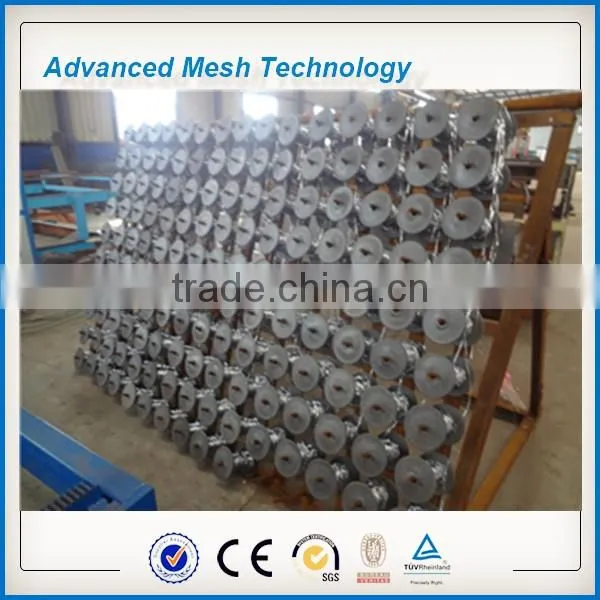

Robbin stand off

Small plate for 0.4-1mm steel

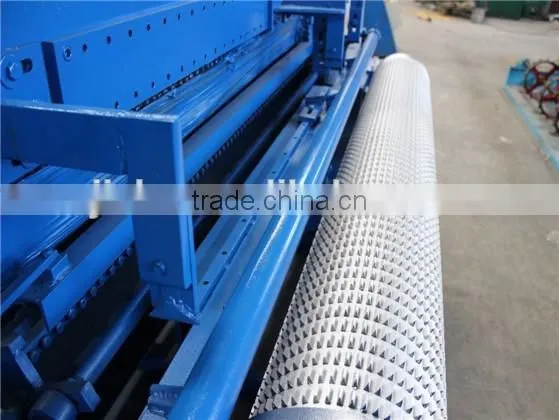

Wire rolling machine for 0.4-1mm steel for longitude wire

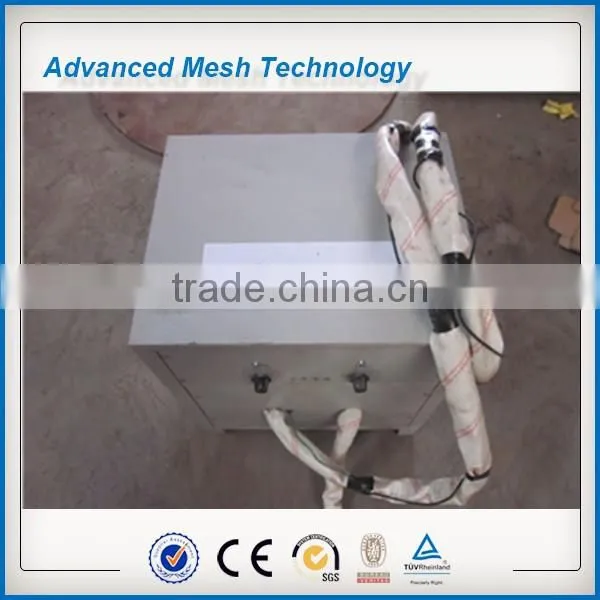

C02 welding machine


Repair table

For loose welding mesh

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Check machine working

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

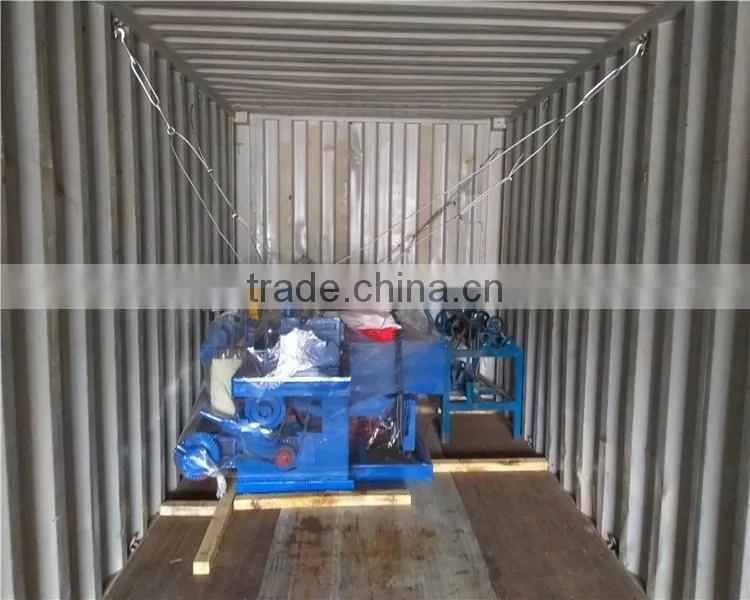

Packing & Delivery
Packaging
Size
2500mm(L) * 1300mm (W) * 1400mm (D)
Weight
2500kg for main welding machine



Packaging Details
The normal package is plastic (Size: L*W*H). If export to inland countries by raiway , we will use steel rop and wood base to fasten the machine
Packaging
Size
3200mm (L) * 1700mm (W) * 1400mm (D)
Weight
2800kg for all



Packaging Details
The normal package is plastic (Size: L*W*H). If export to inland countries by raiway , we will use steel rop and wood base to fasten the machine
