Automatic Welding Wire Mesh Machines for Construction and Building Mesh JIAKE Supplier at Anping
US$ 60,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Steel Wire Mesh Welding Machines for Construction Using Anping SuppliersUS$ 60,000 - 100,000MOQ: 1 Set -
Security Reinforcing Concrete Wire Mesh Welding Machine Made in ChinaUS$ 8,000 - 30,000MOQ: 1 Set
-
Reinforcing Cnc Welded Steel Bar Mesh Concrete MachineUS$ 8,000 - 30,000MOQ: 1 Set
-
High Qualtiy Reinforcing Mesh Panel Welded Machine SupplierUS$ 8,000 - 28,800MOQ: 1 Set
-
High Quality5-12mm Construction Rebar Mesh Welded Machine FactoryUS$ 40,000 - 80,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-RM-2500B
Usage
welding concrete mesh
Voltage
380V 50HZ
Current
11
Rated Duty Cycle
10
Rated Capacity
150KVA*12
Dimensions
20m*3.18m*2.36m
Weight
8500kg
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

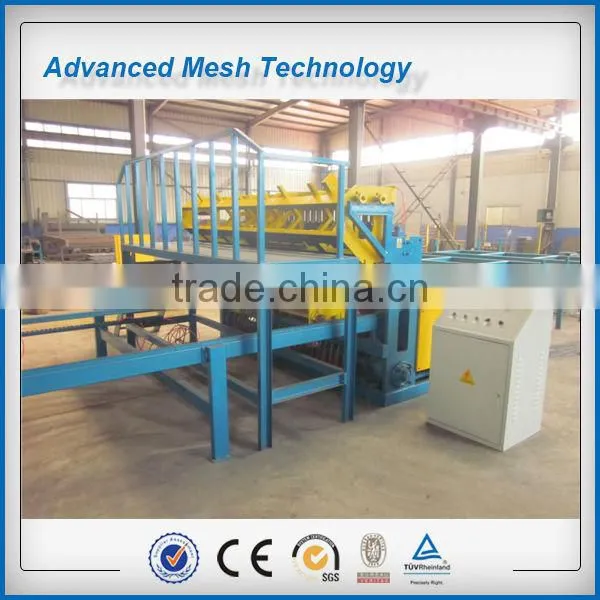

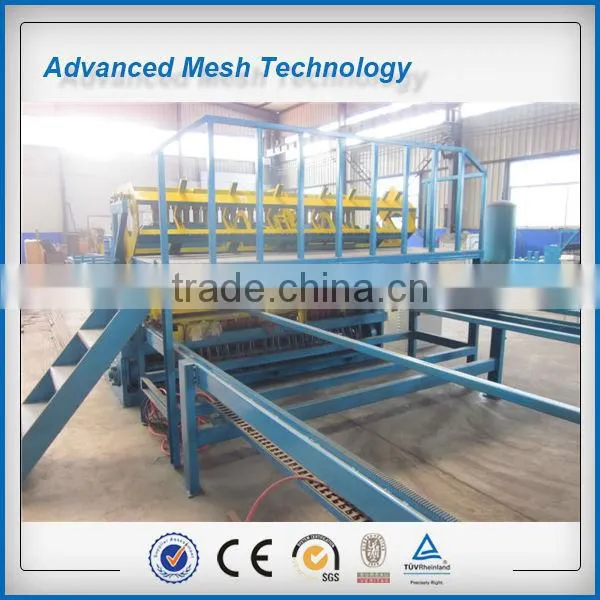

Welding Wire Mesh Machines JK-RM-2500B
Technical Parameter
welding wire mesh machines JK-RM-2500B main parameter:
1. wire diameter:6-12mm
2. mesh width:max2.5m
3. line wire space:100-300mm
4. cross wire space:50-300mm
5. electric capacity:1800KVA
6. welding speed:45-65cross wires/min
7. control system: PLC control
Product Description
Welding wire mesh machines JK-RM-2500B main features:
1. Easy to operate: to finish one panel mesh, only need to turn on one auto-running button.
2. unique design of the cross wire input hopper: the machine will stop if there are no wires or abnormal happens, and it will run, when everything is OK.
3. welding stop function: when the wire welding, the main motor will stop temporarily, will continue to run after welding, insure the welding quality.
4. main motor servo control: with Delta VE high-end frequency concerter and PG card to make the main motor 0-1500r/min increase or decrease speed is 0.02s, zero speed, could 200% torque run, ensure the quick reaction of the machine.(motor with Omron encoder)
5. helical gear reducer: to ensure the machines high load run, and outside installation, easy for maintenance.
6. mesh output device: with Panasonic servo motor and planetary gear, ensure the system stability and end products precision.
7. automatic back to zero: the machine finished products, the mesh output device will automatically back to zero.
8. automatic turn on: with line wire input device, after finishing send the line wires, the machine will automatically turn on the machine.
9. failure display: when the machine fail, it will show on the touch screen(HMI) in english, very easy to maintain.
10. parameter set: all the parameter could be set on the touch screen in English.
11. all the spare parts are from famous brand at home and abroad.
line wire auto-input device
cross wire auto-input hopper
mesh auto-output device
Auxiliary Equipments
1. wire straightening and cutting machines to prepare the line wire and cross wire.
water cooling system:
