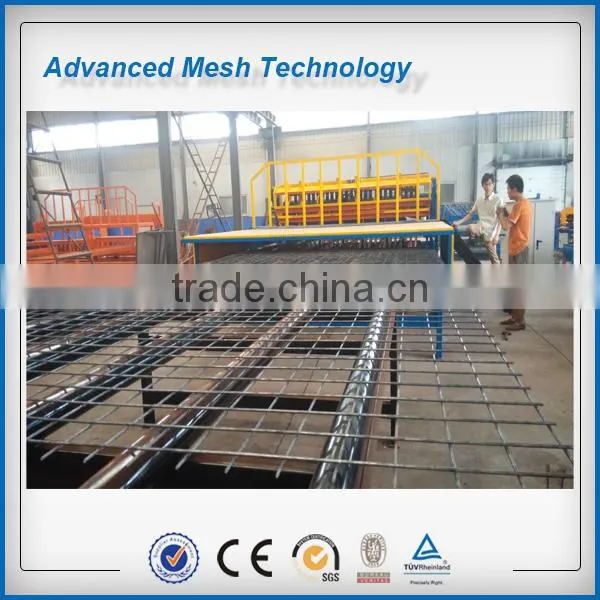

Deformed Steel Ribbed Steel Bar Wire Mesh Welding Machines for Bridge or Contruction Using Mesh
US$ 60,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cold Rolled Ribbed Reinforcing Mesh Welding Production Machines JIAKE ManufacturerUS$ 60,000 - 100,000MOQ: 1 Set -
Automatic CNC Steel Rebar Mesh Making Machines for Welding Concrete Reinforcing Mesh Used in ConstructionUS$ 60,000 - 100,000MOQ: 1 Set
-
Automatic CNC Steel Wire Mesh Making Machines for Welding Concrete Reinforcing MeshUS$ 60,000 - 100,000MOQ: 1 Set
-
Automatic Robot Reinforcing Rib Mesh Welded Mesh Making Machines JIAKE Welding FactoryUS$ 60,000 - 100,000MOQ: 1 Set
-
Cold Rolling Deformed Steel Bar Mesh Production Welding Machines for Concrete Reinforcing Mesh Building MeshUS$ 60,000 - 100,000MOQ: 1 Set
Condition
New
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-RM-2500B
Wire Feeding Speed
30-60cross wires/min
Dimensions
20m*3.2m*2.4m
Weight
9000Kg
Usage
steel bar mesh welding
Voltage
380V or as required
Power(W)
150KVA*12
Certification
CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Steel Bar Mesh Welding Machines JK-RM-2500B
Technical Parameter
Steel bar Mesh Welding Machines JK-RM-2500B parameter
| wire diameter | 5-12mm |
| cross wire length | 2.5m or as required |
| line wire length | max 12m or as required |
| wire spacing | 100-300 adjustable |
| Rated capacity | 150KVA*12 |
| welding spot | 24pcs |
| welding speed | 30-60cross wires/min |
| wire material | pre-straightened and pre-cut |
The wire diameter, cross wire length, wire space could be customized, please tell us your needs.
Product Description
Steel bar Mesh Welding Machines JK-RM-2500B adopts synchronous control technique, welding time and separate welding are controlled by automation control system&HMI, operation more intelligent. The main frame is welded by thick steel plate and sections, which makes the main structure more compact and solid. Frequency control with brake motor matching helical gear reducer connect the main shaft, ensure the welding is more stable and efficient. Welding electronic using one compression but power transimission by separate method, that is, when weld a cross wire, the welidng transformer working sparately, to reduce the requirements for power transformer.
1.Cross wire automaitc-input-hopper: adopts stepper motor driving disc device to fallen wire automatically, sending wire one by one, so that the wire is placed more accurate.
2. Line wire automaitc-input device:adopts servo motor driving pneumatic clamping sending wire device to send the wire to the welding position, which save more time to place the wire.(optional)
3. Drawing mesh device: adopts servo motor driving pneumatic clamping drawing mesh system, which makes the mesh size more accurate, drawing size adjustable by touch screen input, and multiple mesh size can be set on the same mesh, giving customers flexibility and convenience in production, continuous reciprocating drawing mesh to achieve longer mesh production.
4. Electric control cabinet: panasonic PLC automaitc control system, with touch screen input, makes the operation more intelligent and simplity.

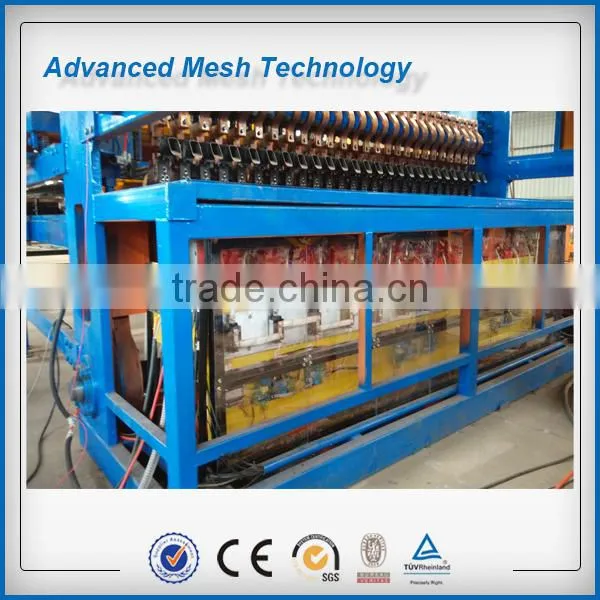

5. Welding transformer: apots a new efficient epoxy mastic with water cooling system mesh welding dedicated welding transformer, compared to traditional reansformer, it have more small size, high security and reliability.
6. welding part: copper electrode and connect wires and wire trucking device

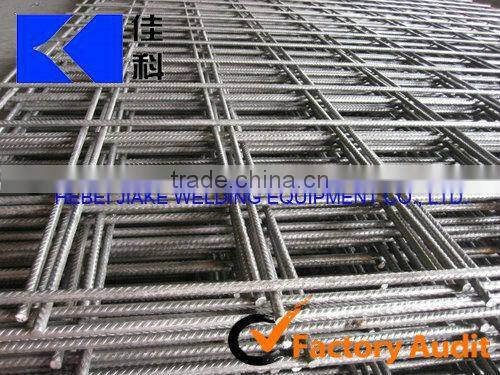

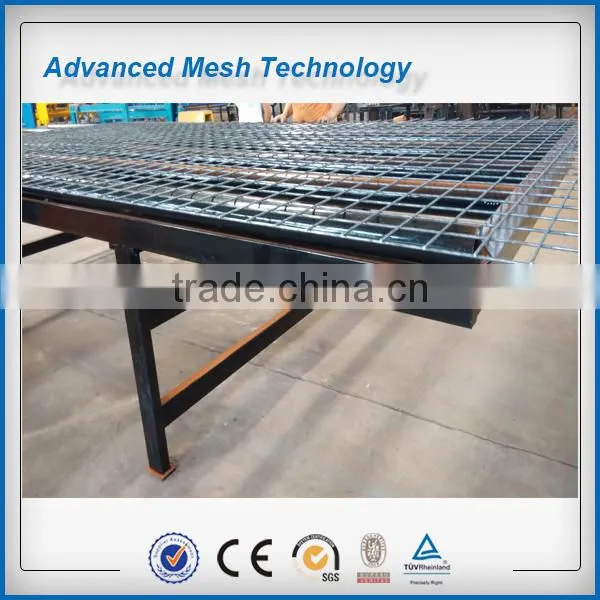

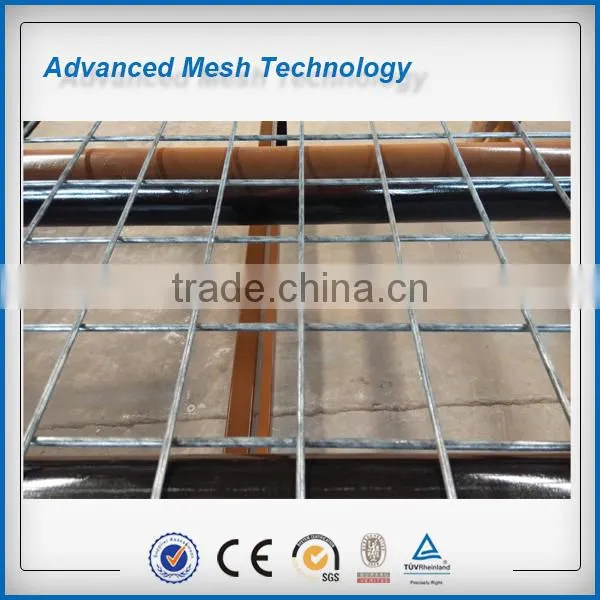

Finished Products
Our Services
Certifications
Contact info
Tell us your needs, our machines could be customized.
