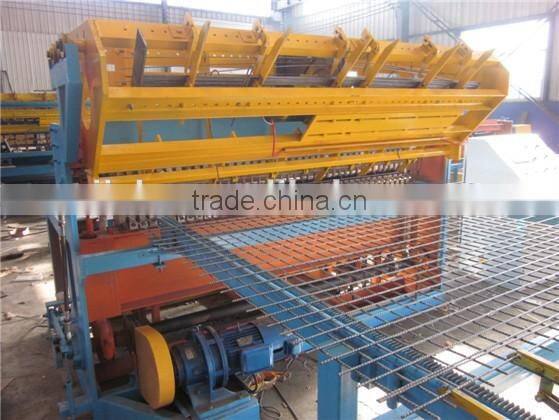

Automatic Steel Wire Mesh Fence Net Welding Machine Alibaba China
Full Automatic Wire Mesh Fence Welding Machine Introduction:
This type of machine is the most advance kind in the field of the fence mesh welding machine .it have the character of the PLC control system ,water cooling when the machine works, it was very precise when you want to adjust the press ,the mesh aperture The most feature is that it do not need to slice the side .More ever ,both the weft wire and the longitude wire are feeding by wire coils .
Full Automatic Wire Mesh Fence Welding Machine Specification:
| wire diameter | 3-5mm | longitude wire feeding | from rolls |
| longitude wire space | 50mm-200mm | cross wire feeding | from rolls |
| cross wire space | 50mm-200mm | rated electrical power | 125KVA*5 |
| mesh width | Max.2.5m | rated voltage | 380V |
| welding electrode | 41pcs | welding speed | 45times /minute |
Full Automatic Wire Mesh Fence Welding Machine Application:
welding wire mesh used on railway,highway,bridge and building fence,road fence
Application of the welding wire mesh:
1. Reinforcing Mesh Welding Machines
|
wire diameter: 5-12mm mesh width: max2.5m wire spacing: 100-300mm mesh length: max12m welding speed: 30-60 cross wires/min |
|
|
2. Fence Mesh Welding Machines
|
wire diameter:3-6mm mesh width:max 2.5m wire spacing:50-200mm welding speed: 45-75 cross wires/min |
|
|
3. Concrete Reinforcing Mesh Welding Machines
|
wire diameter:3-8mm mesh width: max2.5m wire spacing 100-300mm welding speed:45-75 cross wires/min |
|
|
4.Poultry Cage Mesh Welding Machines
|
wire diameter 1.8-3.5mm mesh width:1.2m wire spacing: 50-200mm welding speed:60-90cross wires/min |
|
|
5. Electric Welded Mesh Machines
|
wire diameter:0.45-0.85mm wire diameter:0.6-1.3mm wire diameter:0.8-1.6mm wire diameter:1.4-2.7mm mesh width: as required wire spacing: as required |
|
|
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
If you have any questions or need any help, please contact us when you feel free.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
