Specifications
Electric Welded Wire Mesh Machine / Wire Mesh Welder Machinestable founction
firm welding electrodes
easy to operate
CE

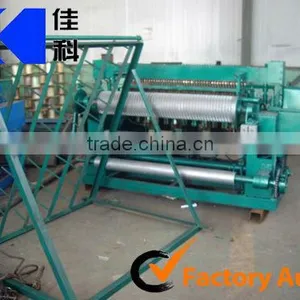

Electric Welded Wire Mesh Machine / Wire Mesh Welder Machine

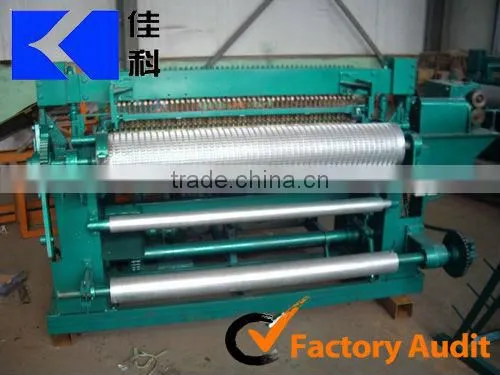

Electric Welded Wire Mesh Machine / Wire Mesh Welder Machine
Details
1.It is made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
2.Both longitude wire and cross wire are fed from wire coils automatically.
3.It has advantage such as design reasonable, low noise, more stable, easier to operate.
4.The mesh size is precise and the machine can set the width of length according to customers’ requirements.
Technical Parameter:
Model | JK-DNW-1 | JK-DNW-2 | JK-DNW-3 |
Mesh width | 914.4mm,1000mm | 1219.2mm,1524mm (4feet, 5feet) | 1219.2mm,1524mm, 1828.8mm,2133.6mm (4feet,5feet,6feet,7feet) |
Aperture/Pitch | 6.35mm-12.7mm | 12.7mm-101.6mm | 25.4mm-101.6mm |
Wire Diameter | 0.4mm-0.65mm | 0.65mm-1.8mm | 1.0mm-2.2mm |
Voltage | 3-phase,380V,50Hz or according to client’s voltage | ||
Motor | 2.2KW | 2.2KW | 2.2KW,4.0KW |
Welding Speed | ≤75 rows/min | ≤120rows/min | ≤80 rows/min |
Measurement of Machine | 2.3m*1.3m*1.4m | 2.5m*1.3m*1.4m 2.9m*1.3m*1.4m | 2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight | 1.5T | 2.0T, 2.5T | 2.0T, 2.5T,3.0T, 3.5T |
Welded Transformer Capacity | 50kva*3 | 60kva*4; 60kva*5 | 60kva*4,60kva*5,60kva |
Electric Welded Wire Mesh Machine / Wire Mesh Welder Machine
The application of product:
It is widely used for construction mesh and poultry cage.
