Specifications

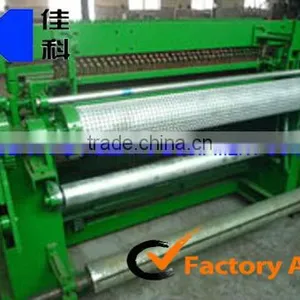

Electric welded wire mesh machine (factory)high speed and automatic
stable function
easy to operate
long service life
Electric welded wire mesh machine (factory)
1.Both longitude wire and cross wire was fed from wire coils automatically.
2.It has advantages such as design reasonable, low noise, more stable, easier tooperatr.
3.The mesh size is precise and the machine can be set the width and length according to customer's requirement.
Electric welded wire mesh machine (factory)
Electric welded wire mesh machine (factory)
Model |
DP-DNW-2 |
Mesh width |
1219.2mm,1524mm (4feet, 5feet) |
Aperture/Pitch |
12.7mm-101.6mm |
Wire Diameter |
0.65mm-1.8mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
Welding Speed |
≤120rows/min |
Measurement of Machine |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
2.0T, 2.5T |
Welded Transformer Capacity |
60kva*4; 60kva*5 |
Other models:
Model |
DP-DNW-1 |
DP-DNW-3 |
Mesh width |
914.4mm,1000mm |
1219.2mm,1524mm, 1828.8mm,2133.6mm (4feet,5feet,6feet,7feet) |
Aperture/Pitch |
6.35mm-12.7mm |
25.4mm-101.6mm |
Wire Diameter |
0.4mm-0.65mm |
1.0mm-2.2mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
2.2KW,4.0KW |
Welding Speed |
≤75 rows/min |
≤80 rows/min |
Measurement of Machine |
2.3m*1.3m*1.4m |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
1.5T |
2.0T, 2.5T,3.0T, 3.5T |
Welded Transformer Capacity |
50kva*3 |
60kva*4,60kva*5,60kva*6,60kva*7 |
