Standard Size Electric Mesh Welding Machine Price
1. Safe and easy to operate
2. Inverter with adjustable frequency;
3. Energy saving 30%;
4. High speed and high productivity;
3. low noise;
4. low cost.
Standard Size Electric Mesh Welding Machine Price
1.Both longitude wire and cross wire are feeding from wire coils automatically.
2.The raw material is appliable for low-carbon steel wire,stainlesswire or galvanized steel wire.
3.The mesh size is precise and the machine can be set the width and length according to customer’s requirement.
4.It is made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
Standard Size Electric Mesh Welding Machine Price
Type | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
Mesh width | 914.4mm;1000mm | 1219.2mm;1524mm | 1219.2mm;1524mm; 1828mm;2133mm |
Aperture /pitch | 6.35mm-12.7mm | 12.7mm-101.6mm | 25.4mm-101.6mm |
Wire diametre | 0.4mm-0.65mm | 0.65mm-1.8mm | 1.0mm-2.2mm |
Motor | 2.2KW | 2..2KW | 2.2KW;4.0KW |
Welding speed | <=75rows/min | <=120rows/min | <=80rows/min |
Measurement of machine | 2.3M*1.3M*1.4M | 2.5M*1.3M*1.4M 2.9M*1.3M*1.4M | 2.5M*1.3M*1.4M 2.9M*1.3M*1.4M |
Weight | 1.5T | 2.0T;2.5T | 2.0T;2.5T;3.0T;3.5T |
Welded transformer capacity | 50kw*3 | 60kw*4;60kw*5 | 60kw*4;60kw*5;60kw* 6;60kw*7 |

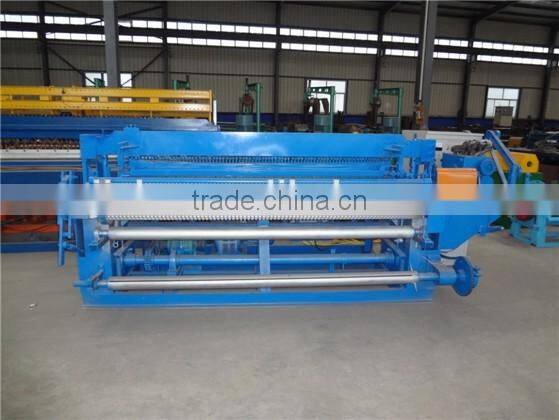

Main machine
Mesh mould
Mesh rolling system

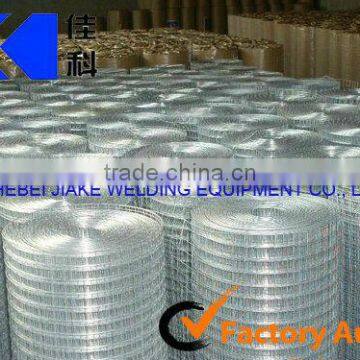

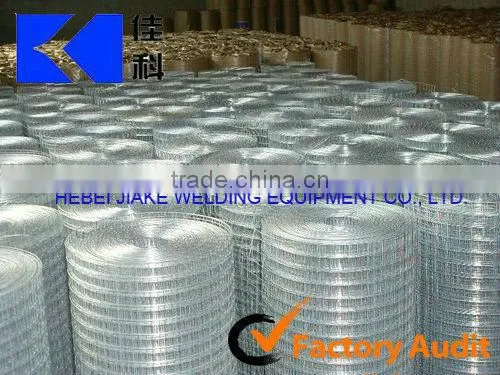

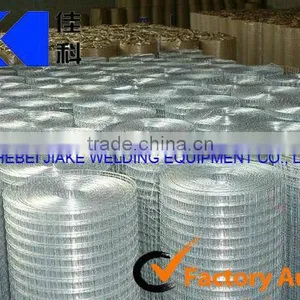

Finished mesh
Mesh Repairing Machine Mesh Repairing Table
Wire Rolling Machine Bobbin stand-off
Inquiry now, and I will reply ASAP!!!
Welcome to our factory!!!
