Full Automatic Grassland Fence Machines for Cattle Fence from JIAKE Factory made in China
Description of Grassland Fence Machine
The grassland fence machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. It takes us many years to research and develop the machine, which has independent intellectual property rights. It adopts sophisticated computer control and advanced manufacturing technique.

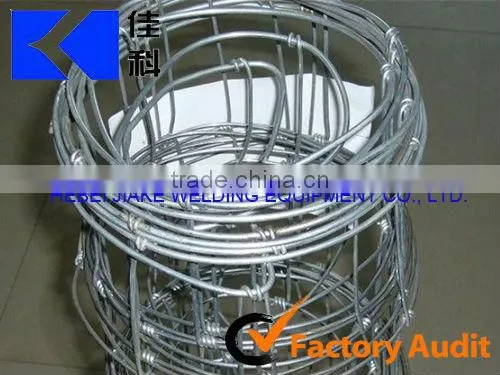

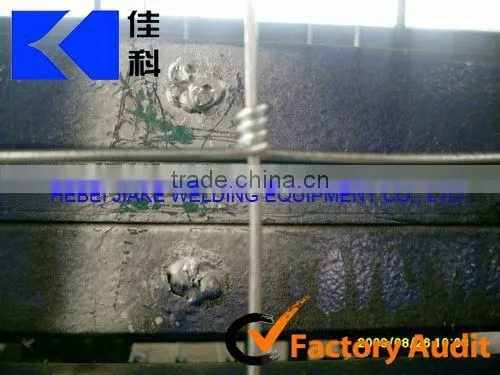

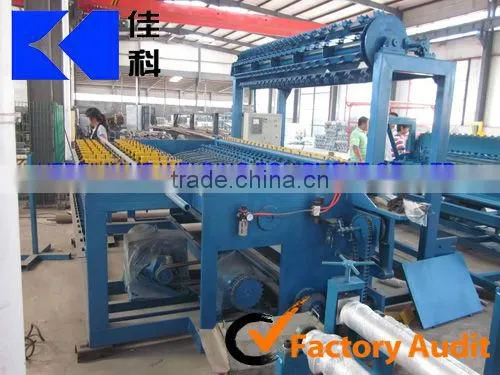

Product of grassland fence machine

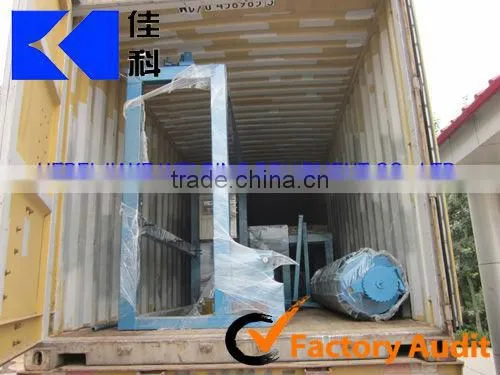

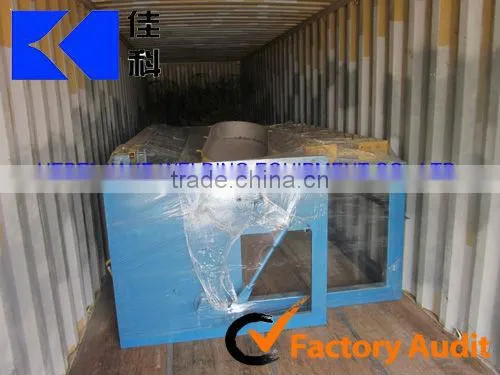

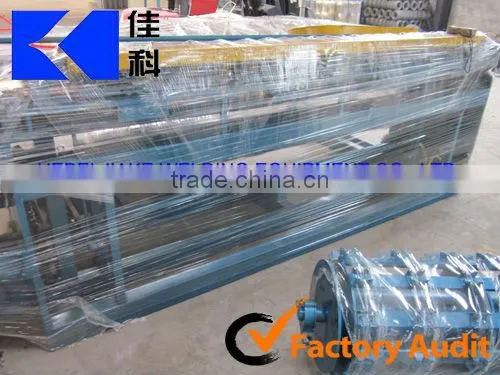

Loading pieces of the machine

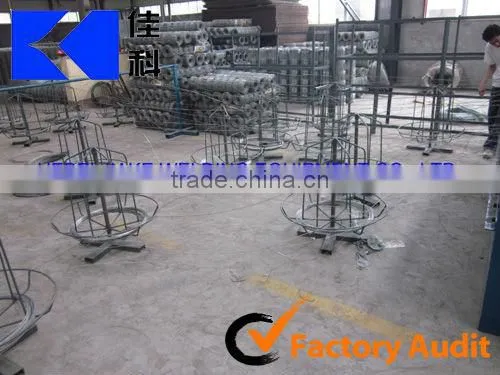

Raw Material
It mainly consists of galvanized wire.
Technical parameter of the machine
Modal |
CY-A |
CY-B |
CY-C |
CY-D |
Mesh width |
1427mm |
1880mm |
2000mm |
2400mm |
Twine wire diameter |
1.9mm-2.5mm |
1.9mm-2.5mm |
1.9mm-2.5mm |
1.9mm-2.5mm |
Side wire diameter |
2.0mm-3.5mm |
2.0mm-3.5mm |
2.0mm-3.5mm |
2.0mm-3.5mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
|||
Motor |
5.5kw |
7.5kw |
7.5kw |
11kw |
Max. work efficiency |
≤45rows/min |
≤45rows/min |
≤45rows/min |
≤45rows/min |
Max. line wire number |
11 |
13 |
18 |
23 |
Min. weft opening |
75mm |
75mm |
75mm |
75mm |
Size of the machine |
2.8M*3.2M*2.4M |
3.3M*3.2M*2.4M |
3.4M*3.2M*2.4M |
3.9M*3.4M*2.4M |
Weight of the machine |
3.0T |
3.5T |
4.0T |
4.5T |
The warp opening |
100mm,200mm,300mm or 150mm,300mm |
100mm,200mm,300mm or 150mm,300mm |
100mm, 200mm, 300mm or 150mm, 300mm |
100mm,200mm,300mm or 150mm,300mm |
The line wire opening |
|
|
|
6*75mm+11*100mm+3*150mm+2*200mm |
Features of Grassland Fence Machine
1. It is novel and automatic.
2. It is safe and simple to operate.
3 It is reliable and has long life.
4. It is inexpensive.
5. All the parts works coordinately and smoothly.
6. The finished products is neat and beautiful.
7. It can produced diverse specification of grassland fence.
Functions of Grassland Fence Machine
1.It is widely used in grasslands, pastures,mountains and protects the natural environment.
2.It is also applied to poultry, etc.
Hebe Jiake Welding Equipment Co.,Ltd mainly produce reinforcing mesh welding machine, fence mesh welding machine, construction mesh welding machine, chicken cage mesh welding machine, 3D panel production line, filter mesh welding machine, steel bar cage making machine, chain link fence machine, gabion mesh machine, nail making machine, barbed wire machine, welded wire mesh machine, razer barbed wire machine, steel grating mesh welding machine, fence mesh weaving machine, stainless steel wire mesh weaving machine and so on.
