Help CenterCrimped Wire Mesh Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
JK-01,JK-02,JK-03
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automatic Crimping Mesh MachineUS$ 5,000 - 16,000MOQ: 1 Set -
Leading Industry Multifunction JK CW Crimping Mesh Machine ( Integrity Entity Factory)US$ 5,000 - 55,000MOQ: 1 Set
-
Automatic Crimped Wire Mesh Weaving MachineNegotiableMOQ: 1 Set
-
Automatic Crimped Wire Mesh Weaving MachineNegotiableMOQ: 1 Set
-
Semi-automatic Crimped Wire Mesh MachineUS$ 2,000 - 10,000MOQ: 1 Set
Place of Origin
Hebei, China
Brand Name
JIAKE
Model Number
JK-01,JK-02,JK-03
After-sales Service Provided
Engineers available to service machinery overseas

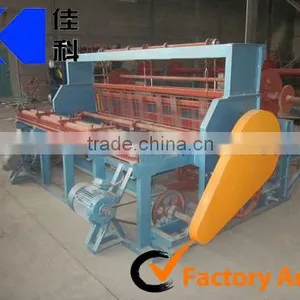

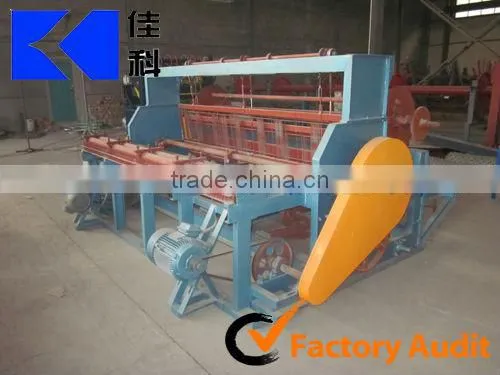

Crimped Wire Mesh Weaving Machine
JK-01 Shuttleless Crimped Wire Mesh Machine was full automatice. The warp and weft wire can be feeded automatically. The wire scope is: 0.4--1mm, The mesh is from Mesh 1 to Mesh 20 Spare Part: Electric System, Wire Winding Machine, Bobbin Payoff Stand.
Max. Width (m) |
Overall Size (mm) |
Motor Power (KW) |
Total Weight (KG) |
|
1.0 |
2500x2500x2500 |
0.75 |
1000 |
|
1.2 |
2500x2500x2500 |
1.1 |
1200 |
|
1.3 |
3500x2500x1700 |
1.1 |
1300 |
|
1.5 |
4000x3000x1700 |
1.5 |
1400 |
|
1.8 |
4000x3000x1700 |
1.5 |
1500 |
|
2.0 |
4200x3000x1800 |
2.2 |
1800 |
|
2.3 |
4200x3000x1800 |
2.2 |
2000 |
|
JK-02 Shuttleless Crimped Wire Mesh Machine was full automatice. The warp and weft wire can be feeded automatically. The wire scope is: 0.4--1.6mm The mesh is from Mesh 2 to Mesh 20 Spare Part: Electric System, Crimped System, Crimped Gear.
Max. Width (m) |
Overall Size (mm) |
Motor Power(KW) |
Total Weight (KG) |
1.0 |
2500x2500x2500 |
0.75 |
800 |
1.2 |
2500x2500x2500 |
1.1 |
1000 |
1.3 |
3500x2500x1700 |
1.1 |
1100 |
1.5 |
4000x3000x1700 |
1.5 |
1250 |
1.8 |
4000x3000x1700 |
1.5 |
1500 |
2.0 |
4200x3000x1800 |
2.2 |
1800 |
2.3 |
4200x3000x1800 |
2.2 |
2000 |
JK-03 Shuttleless Crimped Wire Mesh Machine was automatice.
The wire scope is: 2--8mm
The mesh opening: 1mm--8mm
Spare Part: Electric System, Crimped System, Crimped Gear
Max. Width (m) |
Overall Size (mm) |
Motor Power (KW) |
Total Weight (KG) |
1.0 |
2500x2500x2500 |
0.75 |
750 |
1.2 |
2500x2500x2500 |
1.1 |
800 |
1.3 |
3500x2500x1700 |
1.1 |
1000 |
1.5 |
4000x3000x1700 |
1.5 |
1200 |
1.8 |
4000x3000x1700 |
1.5 |
1400 |
2.0 |
4200x3000x1800 |
2.2 |
1600 |
2.3 |
4200x3000x1800 |
2.2 |
1800 |
