Product Details
Place of Origin: | Hebei, China | Brand Name: | JIAKE | Model Number: | JK-01 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

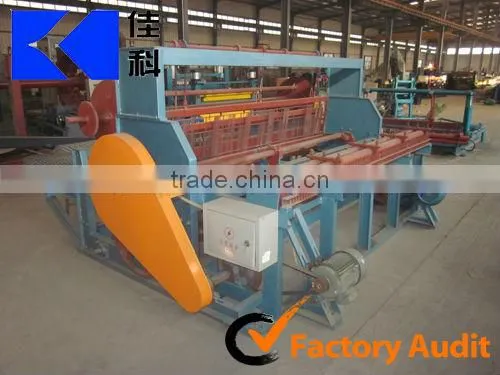

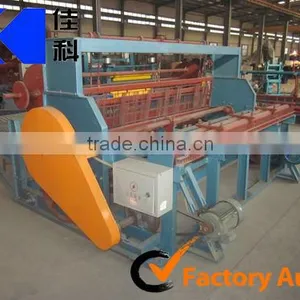

Automatic crimping mesh machine
JK-01 Shuttleless Crimped Wire Mesh Machine was full automatice. The warp and weft wire can be feeded automatically. The wire scope is: 0.4--1mm, The mesh is from Mesh 1 to Mesh 20 Spare Part: Electric System, Wire Winding Machine, Bobbin Payoff Stand.
Max. Width (m) | Overall Size (mm) | Motor Power (KW) | Total Weight (KG) |
1.0 | 2500x2500x2500 | 0.75 | 1000 |
1.2 | 2500x2500x2500 | 1.1 | 1200 |
1.3 | 3500x2500x1700 | 1.1 | 1300 |
1.5 | 4000x3000x1700 | 1.5 | 1400 |
1.8 | 4000x3000x1700 | 1.5 | 1500 |
2.0 | 4200x3000x1800 | 2.2 | 1800 |
2.3 | 4200x3000x1800 | 2.2 | 2000 |
JK-02 Shuttleless Crimped Wire Mesh Machine was full automatice. The warp and weft wire can be feeded automatically. The wire scope is: 0.4--1.6mm The mesh is from Mesh 2 to Mesh 20 Spare Part: Electric System, Crimped System, Crimped Gear.
Max. Width (m) | Overall Size (mm) | Motor Power(KW) | Total Weight (KG) |
1.0 | 2500x2500x2500 | 0.75 | 800 |
1.2 | 2500x2500x2500 | 1.1 | 1000 |
1.3 | 3500x2500x1700 | 1.1 | 1100 |
1.5 | 4000x3000x1700 | 1.5 | 1250 |
1.8 | 4000x3000x1700 | 1.5 | 1500 |
2.0 | 4200x3000x1800 | 2.2 | 1800 |
2.3 | 4200x3000x1800 | 2.2 | 2000 |
JK-03 Shuttleless Crimped Wire Mesh Machine was automatice.
The wire scope is: 2--8mm
The mesh opening: 1mm--8mm
Spare Part: Electric System, Crimped System, Crimped Gear
Max. Width (m) | Overall Size (mm) | Motor Power (KW) | Total Weight (KG) |
1.0 | 2500x2500x2500 | 0.75 | 750 |
1.2 | 2500x2500x2500 | 1.1 | 800 |
1.3 | 3500x2500x1700 | 1.1 | 1000 |
1.5 | 4000x3000x1700 | 1.5 | 1200 |
1.8 | 4000x3000x1700 | 1.5 | 1400 |
2.0 | 4200x3000x1800 | 2.2 | 1600 |
2.3 | 4200x3000x1800 | 2.2 | 1800 |
