CS-A type Barbed Wire Machine
Hot-dipped galvanized low carbon steel wire and plastic coated wire as material wire.
The machine is consisted of wire wrapped and wire collected & twisted device, and equipped with four wire pay-off
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 3 |
2 | Main drive shaft speed | r/min | 402 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 76(3”) 102(4”) 127(5”) |
6 | Twist number | Pcs | 3.5 |
7 | Theoretical output | Kg/h | 70 |
8 | Total weight | Kg | 1200 |
9 | Dimension of main part | mm | 1950*950*1300 |
10 | Dimension of take-twisting part | mm | 1760*550*760 |
Note: Special specification models can be customized according to customer requirements.
CS-B type Single Strand Barbed Wire Machine
Hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire.
The machine is consisted of wire wrapped and wire collected device, and equipped with three wire pay-off.
It adopts advanced electronic counting control. It works smooth, low noise, high safety, save energy consumption, and high efficiency.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 2.2-3.0 |
4 | Barbed wire diameter | mm | 1.8-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Theoretical output | Kg/h | 40 |
7 | Total weight | Kg | 1000 |
8 | Dimension | mm | 3100*1000*1150 |
Note: Special specification models can be customized according to customer requirements.

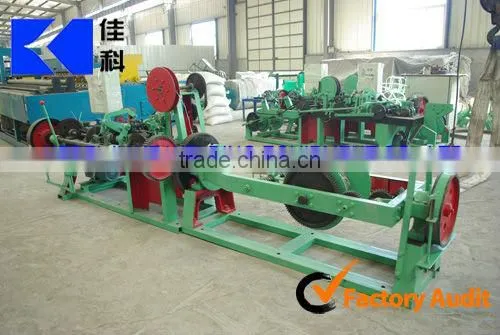

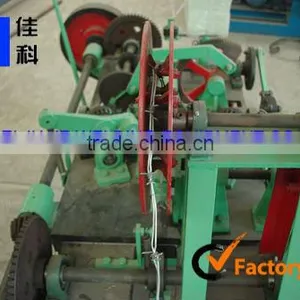

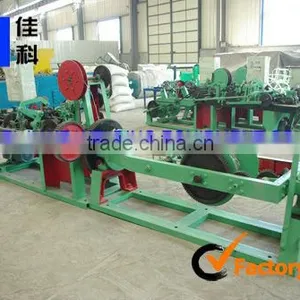

CS-C type Straight and Reverse Twisted Barbed Wire Machine
hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire.
It is consisted of straight and reverse twisted, thorn formed, and the friction wire collected device, with four wire pay-off.
It uses straight and reverse twist way for winded the twist. The barbed wire products has no rebound and winding phenomenon, so it is more beautiful compared with ordinary barbed wire.
Main parameters:
No. | Item | Units | Parameters |
1 | Motor power | KW | 2.2 |
2 | Main drive shaft speed | r/min | 355 |
3 | Strand wire diameter | mm | 1.6-2.8 |
4 | Barbed wire diameter | mm | 1.6-2.2 |
5 | Barb distance | Mm | 102(4”) 127(5”) |
6 | Twist number | Pcs | 7 |
7 | Theoretical output | Kg/h | 40 |
8 | Total weight | Kg | 1000 |
9 | Dimension | mm | 3000*1000*1150 |
Note: Special specification models can be customized according to customer requirements.
5 sets / 20ft container
we also supply razor barbed wire machines, chain link fence machine, fence mesh welding machine, animal cage welding machine, reinforcing mesh welding machine, expanded metal mesh machine, hexagonal wire mesh machine, gabion mesh machines and so on.
We can customize the machine, please tell us your needs.
Contact: Daisy Lee
Hebei Jiake Welding Equipment Co.,Ltd
Mobile: :+86-318-15324391556
Fax:+86-0318-7565522
Skype:qq1815361000
