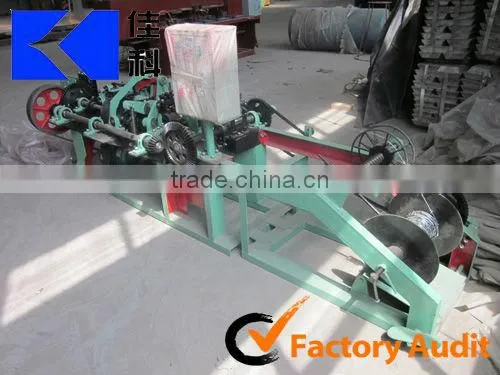

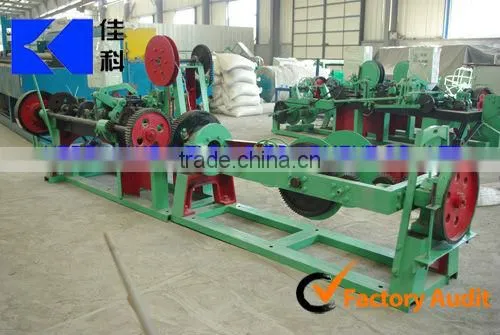

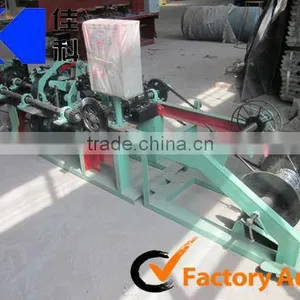

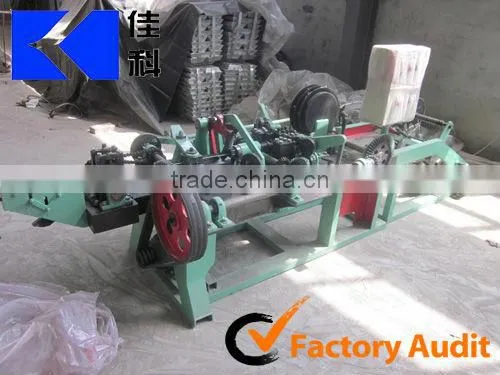

CS-A type Barbed Wire Machine
The materials of barbed wire machines used are general hot-dipped galvanized low carbon steel wire and plastic coated wire. The products of barbed wire machine
are widely used in national defense fence, railway fence , highway fence, agriculture mesh, animal
husbandry fence and other industries.
Barbed wire machine main parameters:
No. |
Item |
Units |
Parameters |
1 |
Motor power |
KW |
3 |
2 |
Main drive shaft speed |
r/min |
402 |
3 |
Strand wire diameter |
mm |
2.2-3.0 |
4 |
Barbed wire diameter |
mm |
1.8-2.2 |
5 |
Barb distance |
Mm |
76(3”) 102(4”) 127(5”) |
6 |
Twist number |
Pcs |
3.5 |
7 |
Theoretical output |
Kg/h |
70 |
8 |
Total weight |
Kg |
1200 |
9 |
Dimension of main part |
mm |
1950*950*1300 |
10 |
Dimension of take-twisting part |
mm |
1760*550*760 |
Note: Special specification models of barbed wire machines can be customized according to
customer requirements.
CS-B type Single Strand Barbed Wire Machine
The materials of barbed wire machine used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire. Main feature: saving materials.
Barbed wire machine main parameters:
No. |
Item |
Units |
Parameters |
1 |
Motor power |
KW |
2.2 |
2 |
Main drive shaft speed |
r/min |
355 |
3 |
Strand wire diameter |
mm |
2.2-3.0 |
4 |
Barbed wire diameter |
mm |
1.8-2.2 |
5 |
Barb distance |
Mm |
102(4”) 127(5”) |
6 |
Theoretical output |
Kg/h |
40 |
7 |
Total weight |
Kg |
1000 |
8 |
Dimension |
mm |
3100*1000*1150 |
Note: Special specification models of barbed wire machine can be customized according to
customer requirements.
CS-C type Straight and Reverse Twisted Barbed Wire Machine
The materials of barbed wire machine used are general hot-dipped galvanized low carbon steel wire and low-strength steel wire, using straight and reverse twist way for winded the twist. The barbed
wire products has no rebound and winding phenomenon, so it is more beautiful compared with
ordinary barbed wire.
Barbed wire machine main parameters:
No. |
Item |
Units |
Parameters |
1 |
Motor power |
KW |
2.2 |
2 |
Main drive shaft speed |
r/min |
355 |
3 |
Strand wire diameter |
mm |
1.6-2.8 |
4 |
Barbed wire diameter |
mm |
1.6-2.2 |
5 |
Barb distance |
Mm |
102(4”) 127(5”) |
6 |
Twist number |
Pcs |
7 |
7 |
Theoretical output |
Kg/h |
40 |
8 |
Total weight |
Kg |
1000 |
9 |
Dimension |
mm |
3000*1000*1150 |
Note: Special specification models of barbed wire machine can be customized according to
customer requirements.
